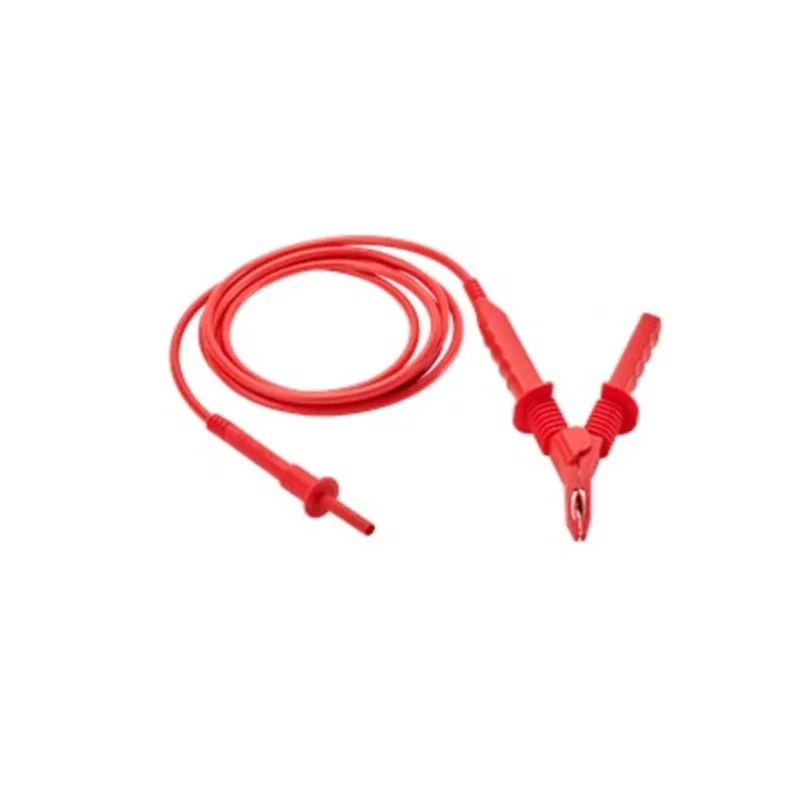

Chauvin Arnoux Insulation Tester HV Test Lead Set for Use with CA 6547, CA 6545, CA 6549, CA 6505 P01295512

Chauvin Arnoux P01295512 Insulation Tester HV Test Lead Set is a high-quality accessory designed for electrical insulation testing applications using insulation testers such as the CA 6547, CA 6545, CA 6549, and CA 6505 models.

This lead set is intended to ensure accurate and safe testing by meeting CE standards and providing a 10 ampere rating for current handling, with piggyback jacks rated at 15 milliamperes to protect user safety. The black lead piggyback jack is connected to the internal braid shielding, while the blue lead’s piggyback jack is connected to the conductor core, available in lengths of 0.3 or 0.5 meters.

The crocodile clips included offer wide clamping capabilities, fitting diameters from 1 to 34 millimeters or bars up to 12 millimeters wide. The red coloration assists in clear lead differentiation during operation. This set functions reliably within an operating temperature range spanning from minus 10 to plus 50 degrees Celsius, making it suitable for diverse industrial and laboratory environments.

The leads and clips are protected by double insulation, enhancing electrical safety during use. These features make the P01295512 lead set a crucial component for electrical testing and diagnostics in industrial, manufacturing, HVAC, laboratory, and construction sectors.

Manufactured in China, this CE-approved test lead set complements various insulation tester models, ensuring versatile and dependable performance. The leads are rated for a maximum current of 10 amperes, supporting robust testing applications.

Piggyback jacks are limited to 15 milliamperes to ensure safety during measurements. The black lead’s piggyback jack is connected to the internal braid shielding for enhanced signal integrity. The blue lead is offered with piggyback jack lengths of 0.3 or 0.5 meters to fit application needs.

Crocodile clips can clamp conductors from 1mm to 34mm diameter or 12mm flat bars. The leads are colored red for easy identification in any testing setup. Operating temperature suitability ranges from -10°C to +50°C for flexible use environments.

Equipment protection is enhanced by double insulation, meeting safety standards. Explore the full range of insulation tester accessories to complete your electrical testing setup at EnvMart.
