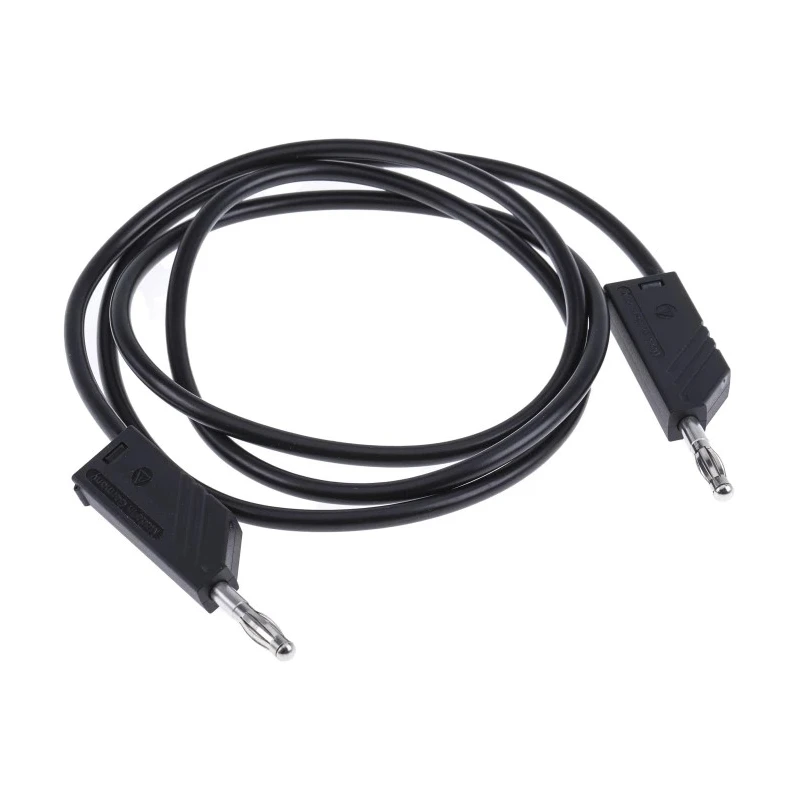

Hirschmann Test & Measurement Test Lead 32A, 60V DC, Black, 1 m Lead Length 934063100

Hirschmann Test & Measurement 934063100 test lead is a 1-meter long electrical measuring lead designed for precision testing applications in laboratories, electrical maintenance, and industrial measurement setups. The test lead supports a maximum continuous current of 32A and a rated voltage of 60V DC, making it suitable for low voltage electrical circuit diagnostics and measurements.

Both ends of the lead are fitted with 4 mm diameter straight connectors of male gender, allowing compatibility with standard test instruments and modular towers. The internal conductor is a stranded cable coated with polyvinyl chloride insulation to ensure flexibility and resistance against wear and mechanical stress. The contact springs are made from beryllium copper and brass, which provides excellent electrical conductivity and mechanical stability, with optional nickel or gold plating to reduce corrosion over time.

The test lead can operate safely over a temperature range of -15°C to 70°C, suitable for most indoor working environments. An integrated color indicator core is included within the insulation to identify any damage or wear to the insulation layer, enhancing user safety during use.

This test lead is manufactured in Germany adhering to stringent quality standards, without specific certifications mentioned. It is widely used across electrical testing, measurement, and calibration industries, including industrial, laboratory, and manufacturing sectors.

Rated for 32A current at 60V DC for reliable testing. Features 4 mm straight connectors with male gender for both ends. Constructed with beryllium copper and brass contact material for conductivity. Insulated with durable polyvinyl chloride for safety and flexibility.

Operates in temperatures ranging from -15°C to 70°C. Highly flexible, double insulated stranded lead for durability. Nickel or gold plated contact springs for corrosion resistance. Includes color indicator core for easy detection of insulation damage.

Made in Germany, meeting high manufacturing standards. Explore the Hirschmann Test Leads category on EnvMart for additional accessories and compatible products for your testing solutions.
