TE Connectivity STRATO-THERM Uninsulated Ring Terminal M5 Stud Size 16 AWG 14 AWG Wire Size 322695

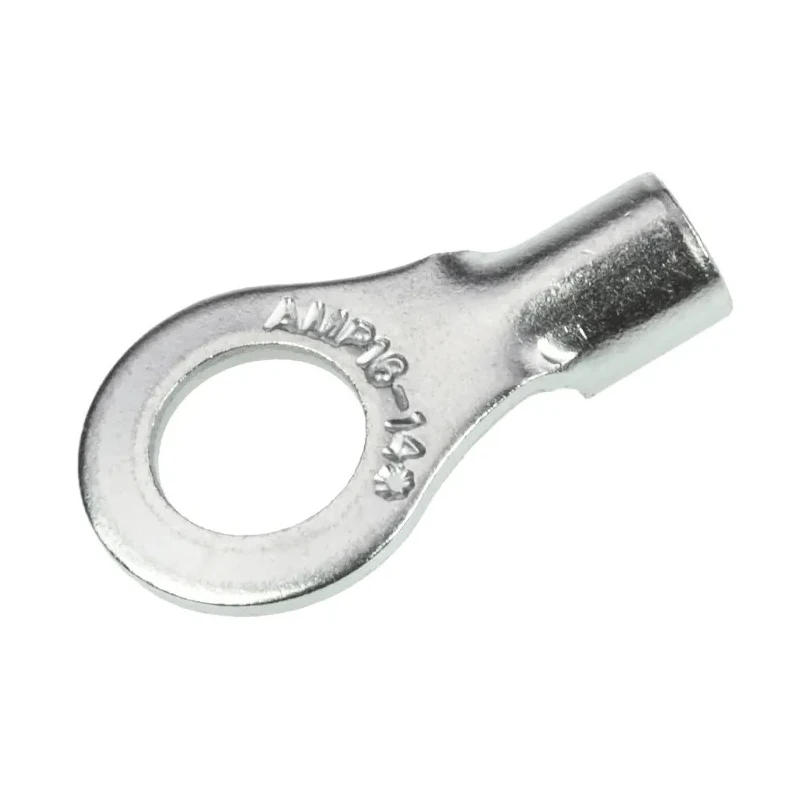

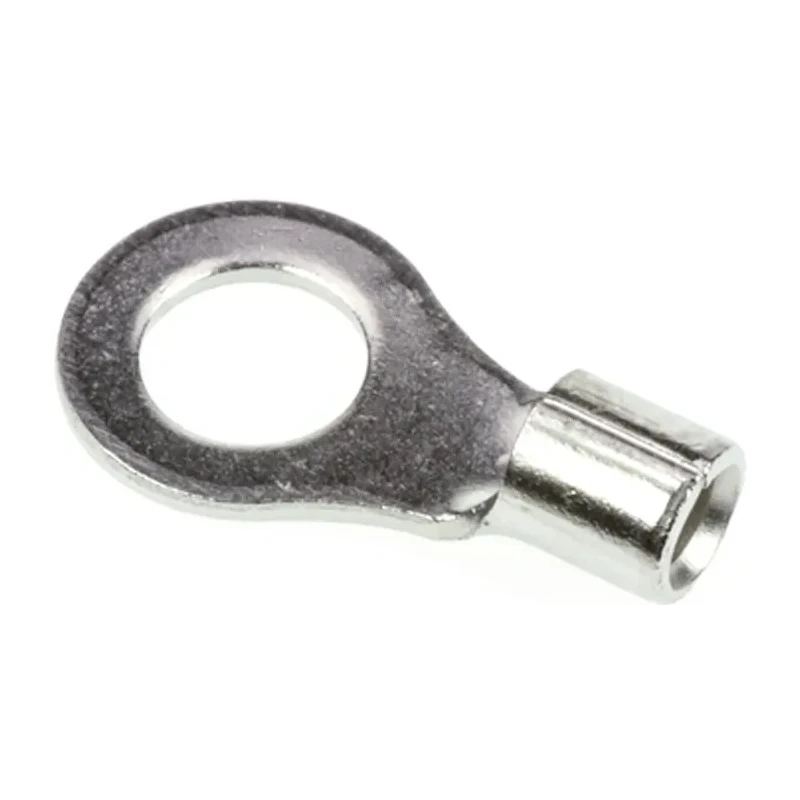

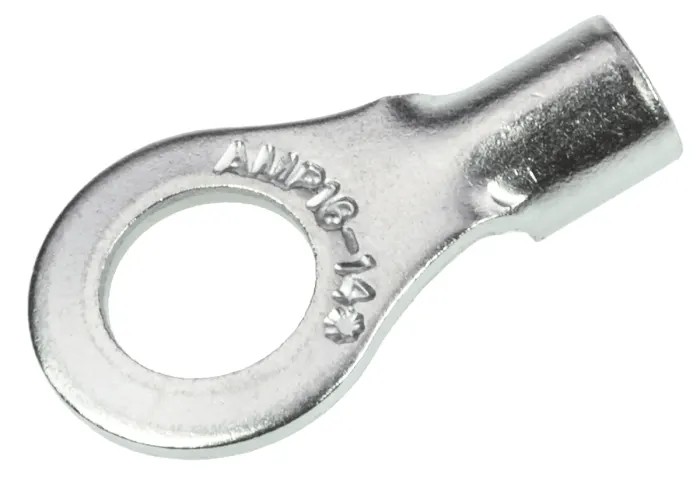

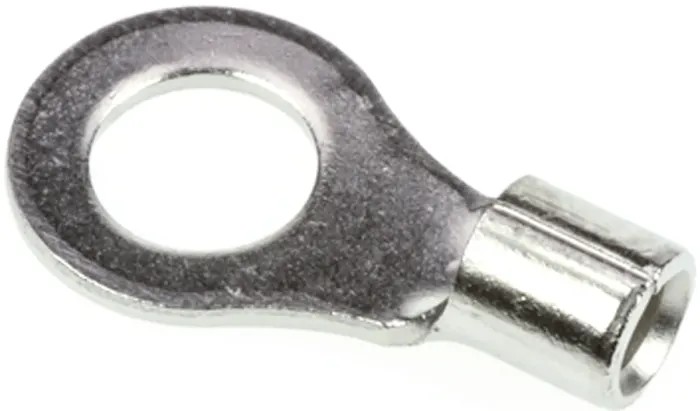

TE Connectivity 322695 STRATO-THERM uninsulated ring terminal provides superior heat-resistant electrical connection for use with solid and stranded conductors. Designed for demanding industrial and electrical applications, this Ring Terminal can withstand operating temperatures up to 343°C (650°F), making it suitable for high-temperature environments where insulated crimps are inadequate.

The terminal is fabricated from electrolytic copper with a nickel plating finish to ensure excellent conductivity and protection against corrosion. The crimping process forces the wire into serrations inside the barrel, maximizing electrical contact area and mechanical stability.

With a stud size of M5, an inner ring diameter of 5mm, and outer ring diameter of 8.71mm, the terminal supports wire sizes ranging from 16 AWG to 14 AWG (1mm² to 2.6mm²). The overall terminal length is 16.15mm with a thickness of 0.79mm, suited for compact yet robust electrical connections.

These STRATO-THERM terminals comply with RoHS directives, ensuring environmentally responsible manufacturing practices. Originating from the United States, they are ideal for use in industrial, automation, electrical maintenance, and manufacturing sectors requiring reliable high-temperature wire termination solutions.

Uninsulated terminal suitable for elevated temperature conditions. Copper with nickel plating delivers durability and corrosion resistance. Precision fit for M5 stud size ensures secure connections. Supports wide wire gauge compatibility from 16 AWG to 14 AWG.

Compliant with RoHS environmental standards. Manufactured in the United States with strict quality controls. Explore the TE Connectivity range of wire terminals and connectors on EnvMart for industrial-grade wiring solutions that meet rigorous application demands.
