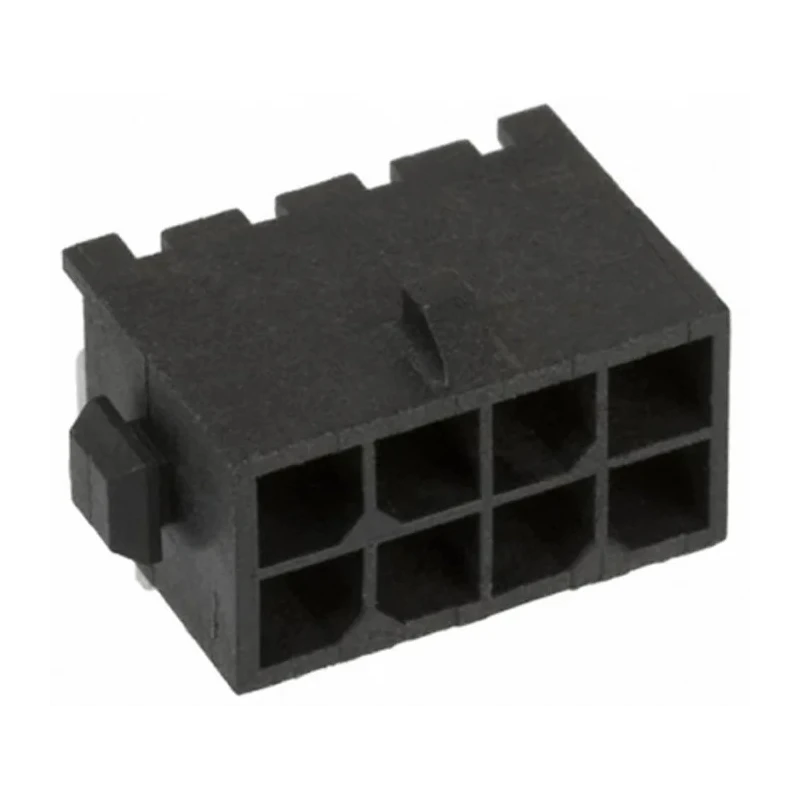

TE Connectivity Micro MATE-N-LOK Series Right Angle Through Hole PCB Header 8 Contact 3 mm Pitch 2 Row Shrouded 3-794618-8

TE Connectivity 3-794618-8 Micro MATE-N-LOK Series right angle through hole PCB header offers a reliable wire-to-board connector solution with 8 contacts arranged in 2 rows with 3 mm pitch.

The black nylon housing is shrouded, providing protection and polarization features to prevent mis-mating and enhancing connection security through positive lock tabs.

This header utilizes brass contacts with tin plating to ensure excellent conductivity and corrosion resistance, rated for 5A current and 250V voltage, suitable for various electronic and industrial control applications.

The right angle orientation and through-hole mounting ensure a secure and durable soldered connection to printed circuit boards, with tail pins measuring 3.18 mm for strong mechanical and electrical performance.

Operating temperature ranges from -65°C to 105°C, allowing usage in diverse environmental conditions. The connectors are compliant with standard industrial requirements and support manufacturing processes including IR reflow soldering.

Common applications include household appliances, lighting, factory automation, data storage, and security systems, with low-profile versions available to meet compact design needs, especially in LED lighting solutions.

Designed with a 3 mm pitch and 2 rows of contacts for compact PCB connection. Shrouded header housing prevents mis-mating for reliable electrical performance. Constructed with nylon housing and brass contacts plated with tin for durability.

Rated for a current of 5A and voltage up to 250V, suitable for various industrial applications. Right angle orientation and through-hole mount provide secure soldered connections on PCBs. Features polarization and positive lock tabs to ensure secure mating with cable connectors.

Operates reliably between temperatures of -65°C to 105°C. Tail pin length of 3.18 mm enhances soldering strength and electrical contact. Ideal for applications in household appliances, data storage, factory automation, and lighting systems.
