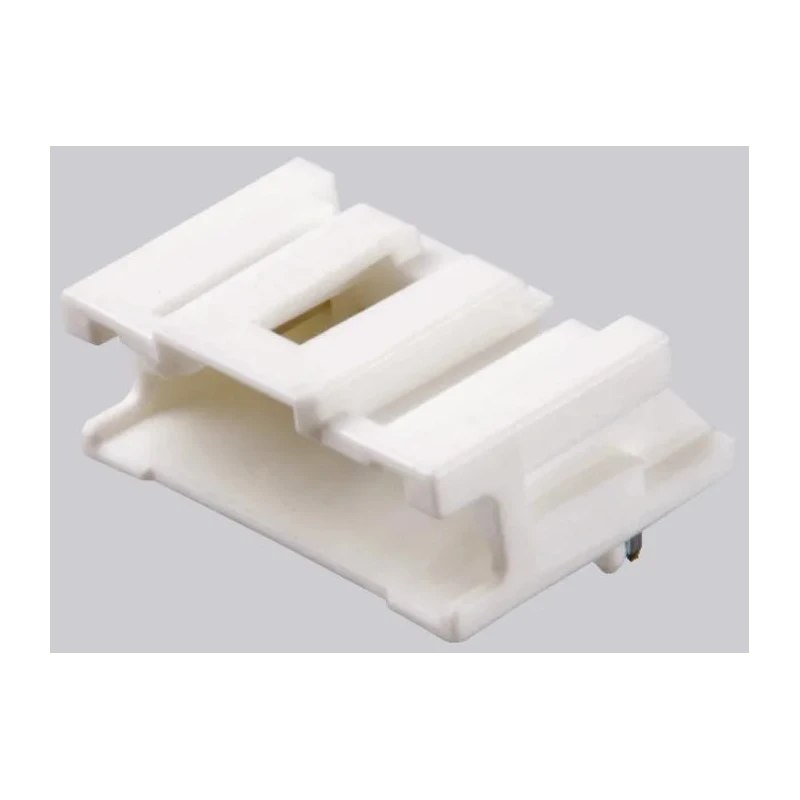

Molex MicroClasp Series Right Angle Through Hole 7 Contact PCB Header, 2 mm Pitch, 1 Row, Shrouded 55935-0710

Molex 55935-0710 MicroClasp Series Right Angle Through Hole PCB Header is a shrouded, single row right angle connector featuring 7 contacts with a 2 mm pitch. It is engineered for wire-to-board applications requiring reliable electrical connections in a compact form factor. The connector operates up to 250 V and supports current carrying up to 3.0 A.

The unique inner positive lock mechanism provides secure latch protection with an audible click to ensure reliable mating and retention during usage. The terminal design ensures low insertion and withdrawal forces, facilitating ease of assembly and maintenance. The contact system utilizes tin-plated tin material, enhancing corrosion resistance and signal integrity.

The housing is made from durable polyester material, suitable for operating temperature ranges from -40°C up to 105°C. The connector's right angle orientation and through hole mount type makes it ideal for printed circuit board assemblies where space efficiency and robust electrical connection are critical.

Additional design features include a housing lance system for secure mating, two-point contact design for robust electrical performance, and compliance with UL 94V-0 flame retardant standard, ensuring safety in demanding industrial environments.

This PCB header is extensively used in industrial electronics, telecommunications, consumer electronics, instrumentation, and other manufacturing applications where small pitch, high reliability wire-to-board connectors are required. It enables space-saving layouts and secure mechanical connection in compact electronic assemblies.

The 2.00 mm pitch enables space saving and easy mating/unmating. Features a unique inner positive lock providing latch protection and audible mating click. The terminal design offers low insertion and withdrawal forces for usability.

Capable of carrying up to 3.0 A current with compact construction. Constructed with polyester housing and tin-plated tin contact material for durability. Right angle orientation is suitable for standard through-hole mounting.

Operates reliably from -40°C to 105°C temperature range. Includes housing lance system for secure connection. Designed to meet UL 94V-0 flammability standard. Designed for industrial and electronic assembly applications requiring secure, reliable connections.
