Nexperia Digital Transistor 100 mA NPN + PNP 50 V 6-Pin SOT-666 PEMD12,115

Free Delivery in India | Lowest Global Shipping Charges

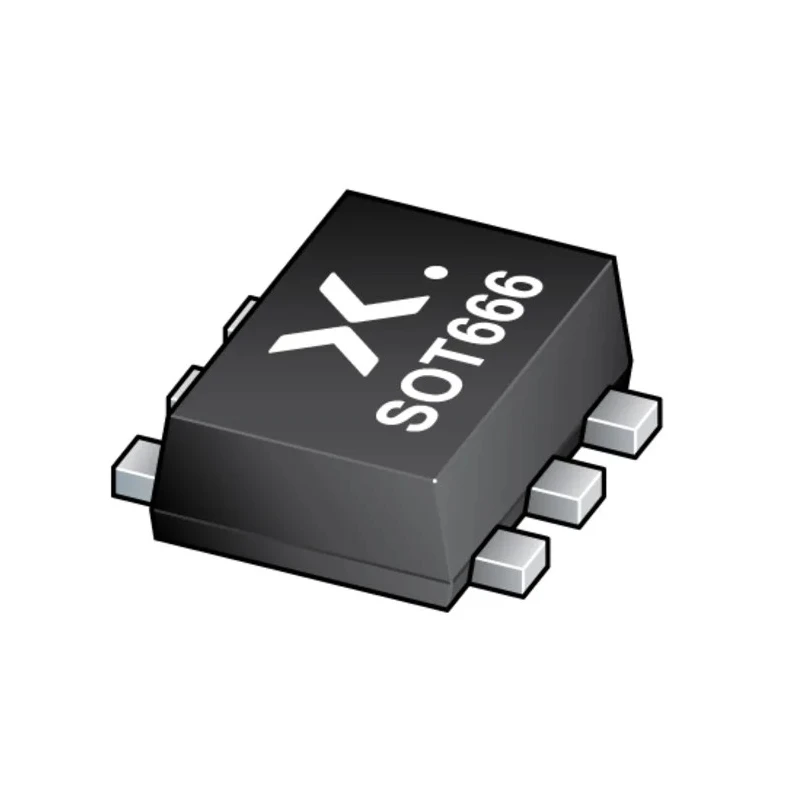

Nexperia Digital Transistor 100 mA NPN + PNP 50 V 6-Pin SOT-666 PEMD12,115

Name: Nexperia Digital Transistor 100 mA NPN + PNP 50 V 6-Pin SOT-666 PEMD12,115
Brand: Nexperia
SKU: 147733
Price: 0.14 USD
Availability: InStock



Category Bipolar Transistors Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	0.6mm
Length	1.7mm
Model	PEMD12,115
Width	1.3mm
Mount Type	Surface
Series	PEMD12
Maximum Operating Temperature	150°C
Package Type	SOT-666
Minimum Operating Temperature	-65°C
Standards/Approvals	RoHS
Pin Count	6
Maximum Collector Emitter Voltage Vceo	50V
Minimum DC Current Gain hFE	80
Transistor Polarity	NPN + PNP
Maximum Emitter Base Voltage VEBO	10V
Maximum Collector Base Voltage VCBO	50V
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	200mW
Maximum DC Collector Current Idc	100mA
Transistor Configuration	Dual
Maximum Transition Frequency ft	230MHz

Key Features

The transistor supports a maximum DC collector current of 100 mA.
Maximum collector emitter voltage rating is 50 V, suitable for multiple electronic applications.
It is equipped with built-in bias resistors for simplified circuit design.
Comes in a surface mount SOT-666 package with 6 pins for easy PCB integration.
Low power dissipation of 200 mW enables efficient thermal management.
Supports a high maximum transition frequency of 230 MHz, ideal for high-speed circuits.
Operates across a wide temperature range from -65°C to 150°C for reliability.
This device complies with RoHS and is AEC-Q101 automotive standard qualified.

Product Description

Nexperia PEMD12,115 digital transistor is a dual NPN + PNP transistor designed for digital switching and peripheral driving applications, rated for 100 mA maximum collector current and 50 V maximum collector emitter voltage. Packaged in a compact 6-pin SOT-666 surface mount device, it integrates resistor-equipped transistors with built-in bias resistors (R1 = 47 kΩ, R2 = 47 kΩ), enabling simplified circuit design and reduced component count.

This digital transistor operates efficiently with a maximum power dissipation of 200 mW and supports high-frequency applications up to 230 MHz transition frequency. It is well-suited for automotive, industrial, and consumer electronic sectors due to its compliance with RoHS and automotive standard AEC-Q101.

With a broad operating temperature range from -65°C to 150°C, it ensures reliable performance in harsh environments. Its dual transistor configuration allows control of integrated circuit inputs and replaces general-purpose transistors in digital applications, reducing pick and place costs in manufacturing.

The device's compact size - 1.7 mm length, 1.3 mm width, and 0.6 mm height - makes it ideal for dense PCB layouts and surface mount technology assembly. The transistor supports a maximum DC collector current of 100 mA. Maximum collector emitter voltage rating is 50 V.

Equipped with built-in bias resistors for ease of design. Compact 6-pin SOT-666 surface mount package. Maximum power dissipation of 200 mW. High maximum transition frequency of 230 MHz. Operates reliably between -65°C to 150°C.

RoHS compliant and AEC-Q101 qualified for automotive use. Dual NPN and PNP configuration for digital switching. Small form factor with 1.7 x 1.3 x 0.6 mm dimensions.

Ideal for use in digital circuit designs, automotive electronics, and industrial applications needing efficient and space-saving digital transistors. Explore our range of Nexperia semiconductor components at EnvMart for reliable industrial and automotive-grade electronics.
