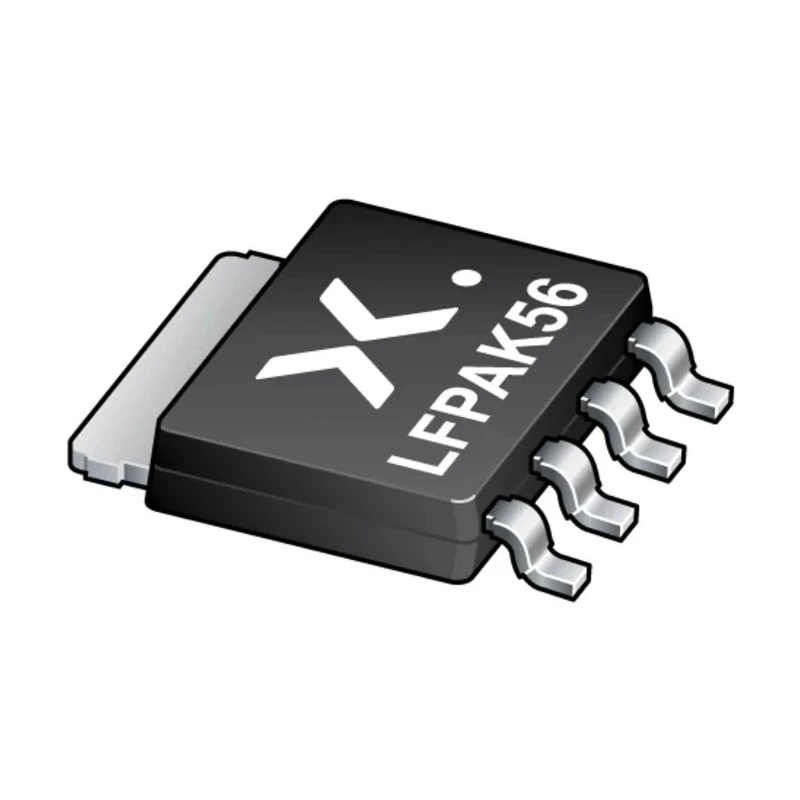

Nexperia High Power NPN Transistor 10 A, 100 V, 5-Pin SOT-669 Surface Mount PHPT61010NYX

Nexperia PHPT61010NYX is a high power NPN bipolar transistor designed for surface mount applications in industrial, automotive, and high-performance electronics. It supports a maximum DC collector current of 10 amperes with a collector-emitter voltage rating of 100 volts, making it suitable for demanding power amplification and switching roles.

Packaged in a 5-pin SOT-669 (LFPAK56) surface mount device, it allows reduced PCB size requirements while maintaining excellent thermal performance. The device offers a high power dissipation of 25 watts, capable of sustaining operation in high temperature environments up to 175 degrees Celsius and down to minus 55 degrees Celsius.

The transistor features a minimum DC current gain of 150, which ensures strong signal amplification. It operates with a high transition frequency of 145 MHz, suitable for fast switching and RF applications.

Compliance with RoHS environmental standards and AEC-Q101 automotive qualifications guarantee that this transistor meets industry reliability and safety standards for automotive and industrial use cases.

Typical applications include power regulation, amplification, motor drives, automotive electronics, and other domains requiring robust high current switching components. Supports maximum DC collector current of 10 amperes for high current applications.

Maximum collector-emitter voltage rating of 100 volts to handle substantial voltage loads. Compact 5-pin SOT-669 surface mount package for efficient PCB layout. High thermal dissipation up to 25 watts supports reliable operation under high load.

Wide operating temperature range from -55°C to 175°C for harsh conditions. NPN polarity with minimum DC current gain (hFE) of 150 for effective amplification. High transition frequency of 145 MHz for switching and RF uses.

Meets RoHS and AEC-Q101 automotive standards for quality and compliance. Compact mechanical dimensions with height 1.05 mm, length 5 mm, and width 4.1 mm. Explore more high performance Bipolar Transistors and discrete semiconductors at EnvMart for your industrial, automotive, and electronics development needs.
