Nexperia 45 V 14 A Surface Mount Schottky Diode 3-Pin CFP15 PMEG045V100EPDZ

Free Delivery in India | Lowest Global Shipping Charges

Nexperia 45 V 14 A Surface Mount Schottky Diode 3-Pin CFP15 PMEG045V100EPDZ

Name: Nexperia 45 V 14 A Surface Mount Schottky Diode 3-Pin CFP15 PMEG045V100EPDZ
Brand: Nexperia
SKU: 147723
Price: 0.62 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	0.78mm
Length	5.8mm
Model	PMEG045V100EPDZ
Width	4.3mm
Mount Type	Surface
Series	PMEG045V100EPD
Maximum Operating Temperature	175°C
Package Type	CFP15
Minimum Operating Temperature	-55°C
Standards/Approvals	RoHS
Pin Count	3
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	14A
Peak Reverse Repetitive Voltage Vrrm	45V
Diode Configuration	Common Cathode
Rectifier Type	Schottky
Peak Reverse Current Ir	600μA
Peak Non-Repetitive Forward Surge Current Ifsm	210A
Maximum Forward Voltage Vf	490mV
Peak Reverse Recovery Time trr	37ns
Average forward current	IF(AV) ≤ 10 A
Reverse voltage	VR ≤ 45 V

Key Features

Designed for low forward voltage and high efficiency.
Supports an average forward current up to 10 A.
Peak reverse repetitive voltage of 45 V for robust operation.
High surge capability with a peak non-repetitive forward surge current of 210 A.
Compact CFP15 plastic package with a height of 0.78 mm for space saving.
Designed with integrated guard ring for stress protection and high power handling.
AEC-Q101 qualification ensures automotive-grade quality and reliability.
Reverse polarity protection and low power consumption applications.

Product Description

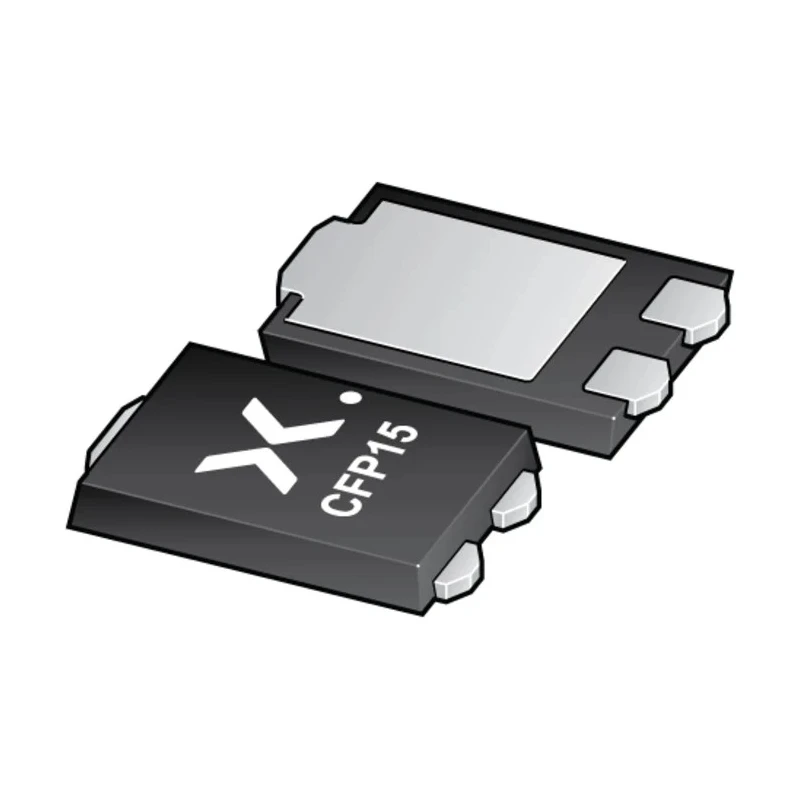

Nexperia PMEG045V100EPDZ is a 45 V 14 A Schottky diode designed in a 3-pin CFP15 (SOT1289) surface mount plastic package with a typical height of 0.78 mm. This diode features a low forward voltage and high power capability enabled by clip-bonding technology and integrated guard ring for stress protection.

The device supports a maximum continuous forward current of 14 A and an average forward current of up to 10 A. Its peak reverse repetitive voltage is 45 V, with a peak reverse current of 600 μA and a maximum forward voltage drop of 490 mV. The diode also has a peak non-repetitive forward surge current of 210 A and a peak reverse recovery time of 37 ns, allowing fast switching and efficient performance in power circuits.

This diode is RoHS compliant and AEC-Q101 qualified, ensuring compatibility with automotive systems and demanding environments with operating temperatures ranging from -55°C to 175°C. The package size measures 5.8 mm in length and 4.3 mm in width, making it a compact yet robust solution for PCB surface mount applications.

These features make the PMEG045V100EPDZ ideal for use in various industrial, automotive, and consumer electronics applications such as high efficiency DC-to-DC converters, power supply rectification, freewheeling diodes, reverse polarity protection, and low power consumption circuits.

Designed for low forward voltage and high efficiency. Supports an average forward current up to 10 A. Peak reverse repetitive voltage of 45 V for robust operation. High surge capability with a peak non-repetitive forward surge current of 210 A.

Compact CFP15 plastic package with a height of 0.78 mm for space saving. Designed with integrated guard ring for stress protection and high power handling. AEC-Q101 qualification ensures automotive-grade quality and reliability.

Reverse polarity protection and low power consumption applications. Suitable for DC-to-DC conversion and switch mode power supplies. Explore more in the Schottky Diodes & Rectifiers category at EnvMart for reliable semiconductor components.
