| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1.3mm |
| Length | 2.8mm |
| Model | PMEG4010EGWX |
| Width | 1.7mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-123 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Forward Current | IF ≤ 1 A |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 100μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 9A |
| Maximum Forward Voltage Vf | 640mV |
| Reverse voltage | VR ≤ 40 V |

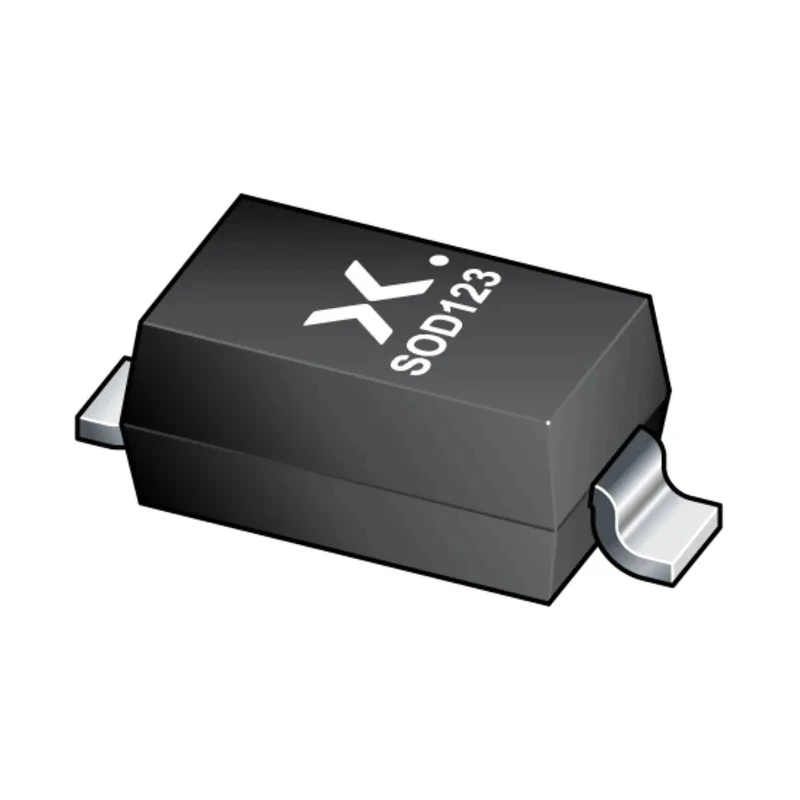

Nexperia PMEG4010EGWX is a medium power low forward voltage Schottky diode designed for efficient switching and rectification in automotive and general electronic applications. Encapsulated in a compact SOD-123 surface mount plastic package, this device supports continuous forward current up to 1 A and reverse repetitive voltage up to 40 V.
This diode features a planar MEGA Schottky barrier technology with an integrated guard ring to protect against stress and enhance reliability. With a typical forward voltage of 540 mV and low reverse current in typical use, it helps improve efficiency in power management circuits and battery life extension.
Its wide operating temperature range from -55°C to 150°C and compliance with AEC-Q101 automotive standards make it suitable for harsh environments and automotive applications. The diode is ideal for use in switch mode power supplies, DC-to-DC converters, and circuits requiring reverse polarity protection.
Compact dimensions of 2.8 mm length, 1.7 mm width, and 1.3 mm height facilitate space-saving PCB designs without compromising electrical performance. Medium power Schottky rectifier with low forward voltage drop. Maximum continuous forward current of 1 A for reliable performance.
Peak repetitive reverse voltage rating of 40 V. Compact SOD-123 surface mount package minimizes board space. AEC-Q101 qualified for automotive standard compliance. Wide operating temperature range from -55°C to 150°C. Low peak reverse current and high surge current capability.
Suitable for high efficiency DC-to-DC conversion and reverse polarity protection. Small dimensions ensure easy integration into compact designs. High efficiency and low power consumption for modern electronic circuits.
This diode is widely used in industrial, automotive, consumer electronics, and power management applications. Its combination of performance, efficiency, and compact package makes it a critical component in modern electronic product designs.
