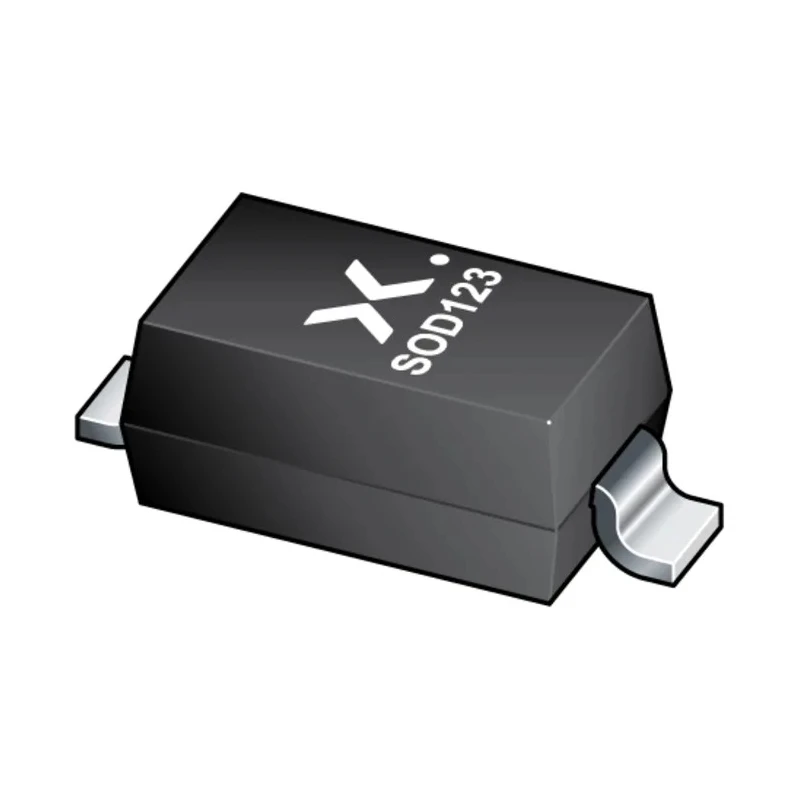

Nexperia 40 V 1 A Low Forward Voltage Schottky Diode Surface Mount SOD-123 PMEG4010CEGWX

Name: Nexperia 40 V 1 A Low Forward Voltage Schottky Diode Surface Mount SOD-123 PMEG4010CEGWX
Brand: Nexperia
SKU: 147712
Price: 0.08 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	1.3mm
Length	2.8mm
Model	PMEG4010CEGWX
Width	1.7mm
Mount Type	Surface
Maximum Operating Temperature	150°C
Package Type	SOD-123
Minimum Operating Temperature	-55°C
Pin Count	2
Forward Current	IF ≤ 1 A
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	1A
Peak Reverse Repetitive Voltage Vrrm	40V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	50μA
Peak Non-Repetitive Forward Surge Current Ifsm	9A
Maximum Forward Voltage Vf	570mV
Reverse voltage	VR ≤ 40 V

Key Features

Features maximum continuous forward current of 1 A for reliable circuit operation.
Has peak reverse voltage rating of 40 V suitable for low voltage applications.
Encapsulated in a small surface-mounted SOD-123 plastic package.
Achieves typical forward voltage as low as 490 mV for enhanced energy efficiency.
Complies with automotive standard AEC-Q101 ensuring robustness in automotive environments.
Operates reliably over a wide temperature range from -55°C to 150°C.
Offers low reverse current leakage and integrated guard ring for stress protection.
Designed for use in high efficiency DC-to-DC converters and switch mode power supplies.

Product Description

Nexperia PMEG4010CEGWX is a Schottky diode designed for automotive and industrial applications requiring high efficiency and low power losses. This 40 V, 1 A diode features a planar MEGA Schottky barrier with low forward voltage drop, encapsulated in a compact SOD-123 surface mount plastic package.

The diode delivers reliable performance with maximum continuous forward current of 1 A and low typical forward voltage of 490 mV, making it suitable for low voltage rectification and high efficiency DC-to-DC conversion. Its AEC-Q101 automotive qualification ensures durability and stable operation under demanding automotive conditions.

Operating temperature range extends from -55°C to 150°C, making it ideal for harsh industrial environments. The integrated guard ring provides protection against electrical stress, minimizing reverse leakage currents to around 6 μA typically, thus reducing power consumption in circuits.

This Schottky diode is well-suited for switch mode power supplies, automotive electronics, and applications requiring reverse polarity protection. Its small SOD-123 package allows for compact PCB layouts and efficient thermal management.

Maximum continuous forward current of 1 A. Peak reverse voltage rating of 40 V. Low typical forward voltage of 490 mV enhances efficiency. AEC-Q101 automotive qualified for reliability. Wide operating temperature range from -55 to 150°C.

Compact SOD-123 surface mount package. Integrated guard ring for electrical stress protection. Low reverse leakage current minimizes power loss.

This diode is an excellent choice for industrial, automotive, and consumer electronics where efficient low-voltage rectification is critical. It supports power conversion in DC-DC converters, protects circuits from reverse polarity, and fits tightly in compact electronic designs.
