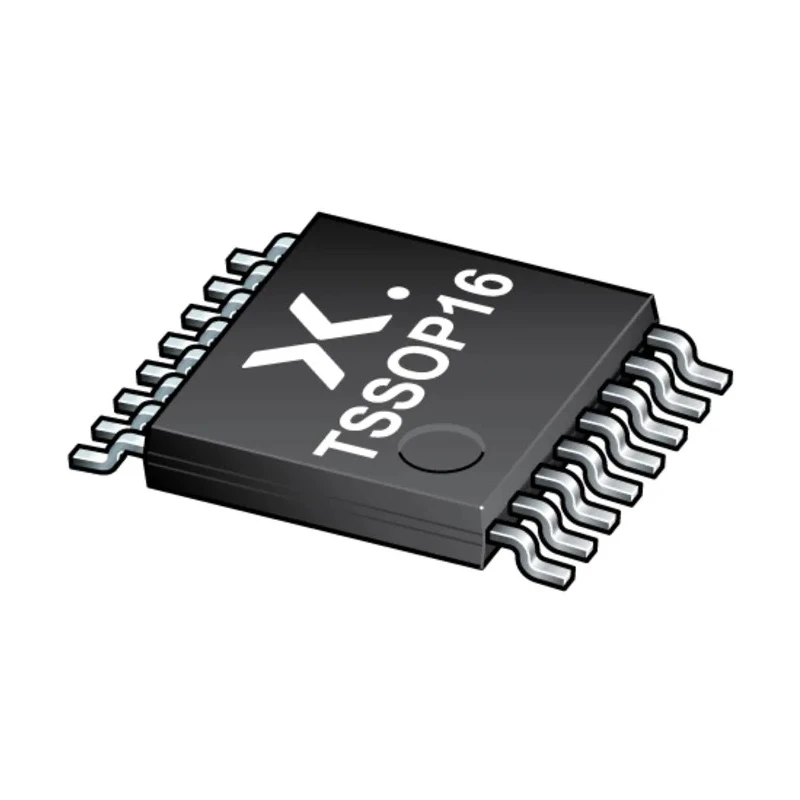

Nexperia Decoder Logic IC, Dual 4-Channel Analog Multiplexer/Demultiplexer, 16-Pin TSSOP, AEC-Q100 74HC4052PW-Q100,11

Free Delivery in India | Lowest Global Shipping Charges

Nexperia Decoder Logic IC, Dual 4-Channel Analog Multiplexer/Demultiplexer, 16-Pin TSSOP, AEC-Q100 74HC4052PW-Q100,11

Name: Nexperia Decoder Logic IC, Dual 4-Channel Analog Multiplexer/Demultiplexer, 16-Pin TSSOP, AEC-Q100 74HC4052PW-Q100,11
Brand: Nexperia
SKU: 147699
Price: 0.35 USD
Availability: InStock



Category Encoder & Decoder ICs Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	2mm
Length	6.4mm
Model	74HC4052PW-Q100,11
Mount Type	Surface
Number of inputs	6
Series	74HC
Maximum Operating Temperature	125°C
Package Type	TSSOP
Minimum Operating Temperature	-40°C
Pin Count	16
Automotive Standard	AEC-Q100
Maximum Supply Voltage	11V
Logic Family	74HC
Logic Function	Multiplexer, Demultiplexer
Minimum Supply Voltage	-0.5V

Key Features

Features dual 4-channel analog multiplexing and demultiplexing with common select logic.
Supports 6 inputs with multiplexer and demultiplexer logic functions.
Operates from a minimum supply voltage of -0.5V up to a maximum of 11V.
Operating temperature range spans from -40°C to 125°C ensuring automotive-grade reliability.
Low ON resistance and break-before-make design enhance signal integrity and switching.
Comes in a compact 16-pin TSSOP surface mount package measuring 6.4mm length and 2mm height.
Suitable for digital and analog signal gating in automotive, industrial, and consumer electronics applications.
Complies with the AEC-Q100 automotive standard for high quality and reliability.

Product Description

The Nexperia 74HC4052PW-Q100,11 Decoder Logic IC is a dual 4-channel analog multiplexer/demultiplexer designed for high-speed switching applications. This device integrates six inputs within a 16-pin TSSOP surface mount package, complying with JEDEC standard no. 7A and is tested to the automotive AEC-Q100 (Grade 1) standard. It supports both digital and analog signal multiplexing and demultiplexing with common select logic which makes it highly versatile for signal routing in complex circuits.

Operating reliably over a wide voltage range of -0.5V to 11V and a temperature range from -40°C up to 125°C, this IC is suited for demanding automotive and industrial environments. The package dimensions of 6.4mm length and 2mm height allow compact PCB layouts and cost-effective surface mounting.

The device features a low ON resistance and an internal break-before-make configuration that prevents signal overlap and distortion during switching. Its robustness and performance make it suitable for applications including automotive control systems, communication devices, and industrial automation where precise and reliable signal control is critical.

Dual 4-channel analog multiplexer/demultiplexer with common select logic. High-speed Si-gate CMOS technology with compatibility for Low-power Schottky TTL. Wide operating voltage range from -0.5V to 11V for versatile use cases.

Automotive certified with AEC-Q100 Grade 1 qualification. Low ON resistance reduces power loss during switching. Compact 16-pin TSSOP package with a length of 6.4mm and height of 2mm. Suitable for analog and digital multiplexing and demultiplexing applications.

Broad temperature rating from -40°C to 125°C for harsh conditions.

Choose the Nexperia 74HC4052PW-Q100,11 Decoder IC for reliable and efficient signal multiplexing in automotive, industrial, consumer electronics, and communication device applications. Explore our wide range of semiconductor components for your industrial and electronics needs at EnvMart.
