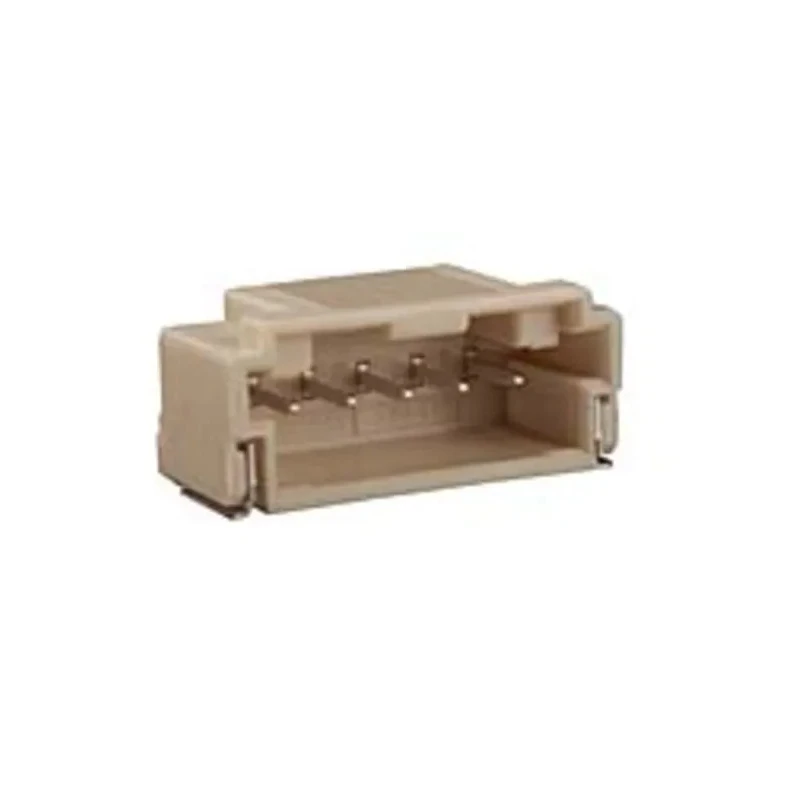

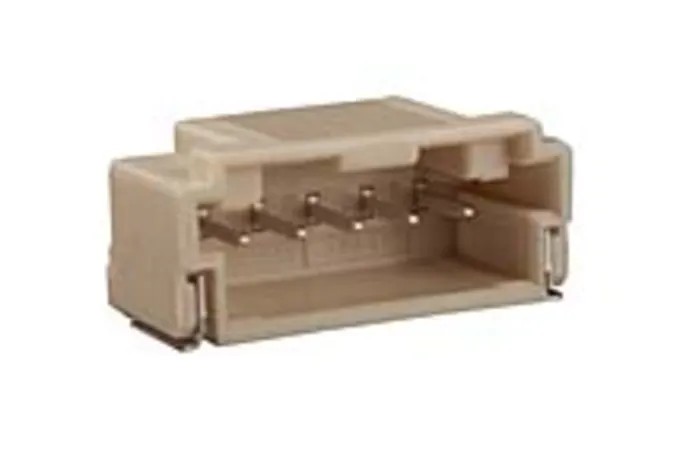

Molex DuraClik Series Right Angle Surface PCB Header, 3 Contacts, 2 mm Pitch, 1 Row, Shrouded 5023520300

Molex 5023520300 is a DuraClik Series Right Angle Surface PCB Header designed for use in electronic assemblies requiring reliable wire-to-board connections. This connector features a single row with 3 contacts spaced at a 2 mm pitch, making it compact for dense PCB layouts.

The housing is made from durable polyamide material that provides excellent electrical insulation and mechanical stability. The right angle orientation facilitates horizontal PCB mounting, optimizing space in compact electronic devices.

Contacts are manufactured from copper alloy and plated with tin to ensure corrosion resistance and excellent conductivity. The connector system is shrouded to protect contacts from accidental shorts and enhance user safety during handling and PCB assembly.

It supports a maximum current rating of 3A and voltage rating of 125V, making it suitable for low power electronic circuits. The operating temperature range from -40°C up to 105°C allows use in harsh industrial and commercial environments.

Termination is intended for soldering, compatible with standard assembly processes, ensuring strong mechanical and electrical connections to the PCB. As a product made in Germany, this PCB header adheres to stringent manufacturing quality standards.

This Molex PCB Header is widely used in industrial, commercial, and electronic manufacturing applications where reliable wire-to-board connection and compact design are required. Constructed with polyamide housing material for durability.

Rated for 3A current and 125V voltage operation. Designed with a single row and right angle orientation for PCB mounting. Contacts are made from copper alloy with tin plating for reliable electrical connection. Shrouded contact system enhances connector safety and insulation.

Operates reliably within -40°C to 105°C temperature range. Termination type is solder for secure attachment to PCB. Male contact gender suitable for wire-to-board applications. Manufactured in Germany ensuring quality standards.
