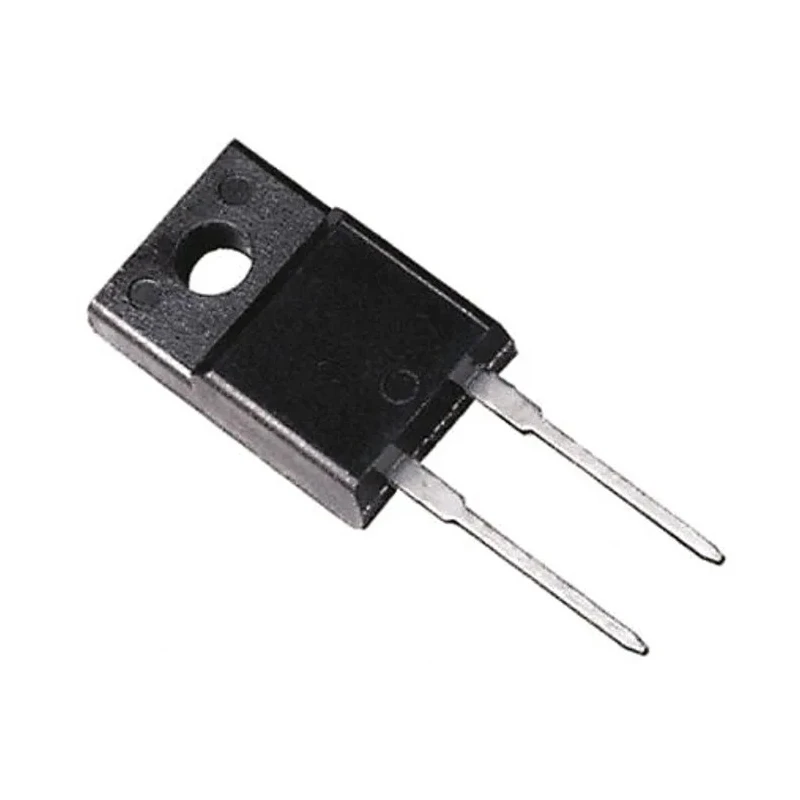

Infineon 650 V 30 A Switching Diode Single 2-Pin TO-220FP IDV30E65D2XKSA1

Infineon IDV30E65D2XKSA1 is a high-performance switching diode with a single diode configuration and two pins, housed in a TO-220FP package suitable for through-hole mounting. It supports a maximum continuous forward current of 30 A and a peak reverse repetitive voltage of 650 V, designed to efficiently handle demanding power electronics tasks.

This diode features a low forward voltage drop of 2.2 V, ensuring efficient conduction, and a peak reverse recovery time of 73 ns, allowing rapid switching with minimal losses. The device operates reliably across a broad temperature range from -40°C to 175°C, making it ideal for harsh industrial and commercial environments.

The diode's peak non-repetitive forward surge current of 180 A enables it to withstand transient current peaks without damage. Physical dimensions include a height of 16.15 mm, width of 4.85 mm, and length of 10.65 mm, contributing to compact design integration.

Infineon’s switching emitter controlled diodes like the IDV30E65D2XKSA1 rapid switch offer excellent electromagnetic interference (EMI) behaviour, low turn-on losses, and easy paralleling for enhanced power handling. They are well-suited for applications such as telecom systems, uninterruptible power supplies, welding equipment, and motor drive circuits up to 30 kHz operating frequency.

Although this product does not carry automotive standard certification, it is engineered for robust industrial use, offering stable performance and reliability. The diode supports power factor correction (PFC) topologies and low conduction losses, enhancing system efficiency.

Mount type is through hole for easy PCB mounting. Package type is TO-220FP for superior heat dissipation. Maximum continuous forward current of 30 A allows handling substantial load currents. Peak reverse repetitive voltage rated at 650 V provides high voltage tolerance.

Low reverse recovery charge and fast switching speeds improve switching efficiency. Operates reliably in harsh temperature environments from -40°C to 175°C. Peak surge current rating of 180 A ensures robustness against transient currents.

Compact physical dimensions support versatile application integration. Suitable for multiple industrial applications including telecom, UPS, and motor drives. Designed without automotive certification for general-purpose industrial usage.
