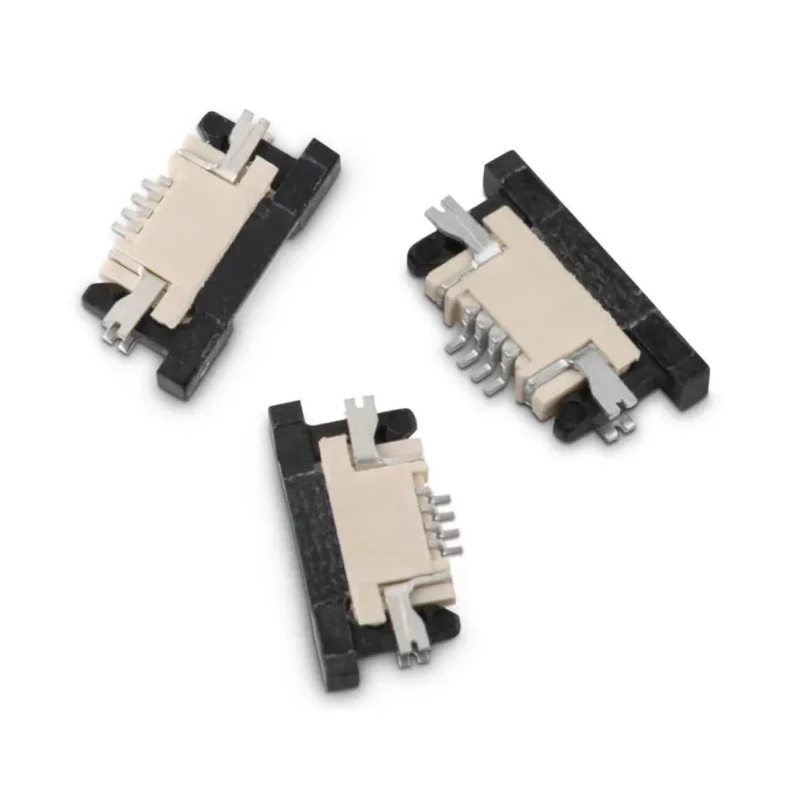

Wurth Elektronik WR-FPC 0.5 mm Pitch 20 Way Horizontal Male FPC Connector Bottom Contact 687120183722
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 50V ac |
| Brand | Wurth Elektronik |
| Orientation | Horizontal |
| Current | 400mA |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | WR-FPC |
| Termination Type | Bottom Contact |
| Maximum Operating Temperature | 85°C |
| Sub Type | FPC |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 1 |
| Pitch | 0.5mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 20 |
| Contact Gender | Female |
| Connector Gender | Male |
| Insertion Force | ZIF |
| Contact Position | Bottom |
Key Features
- Low profile design with a height of 1.2 mm suitable for compact assemblies.
- Zero insertion force (ZIF) flip lock actuator for easy and secure FPC insertion.
- Solder tabs on both sides for secure PCB retention and mechanical stability.
- Bottom contact type with phosphor bronze contacts plated with tin over nickel for reliability.
- Supports 50 V AC voltage and 400 mA current capacity for effective signal transmission.
- Operating temperature range from -25°C to 85°C for various environmental conditions.
- Horizontal orientation with 20 contacts arranged in a single row.
- Housing made of liquid crystal polymer to ensure durability and electrical insulation.
Product Description
Wurth Elektronik 687120183722 WR-FPC 0.5 mm Pitch 20 Way Horizontal Male FPC Connector Bottom Contact is a precision engineered FPC Connector featuring a low profile design and zero insertion force (ZIF) flip lock actuator, ideal for use in miniaturized and high-density electronic assemblies.
The connector has a 0.5 mm pitch and 20 contacts arranged horizontally in a single row to meet demanding space constraints.
Constructed with phosphor bronze contacts plated with tin over nickel, it provides excellent electrical connectivity and corrosion resistance. The bottom contact termination type allows for flexible PCB design options.
The connector housing is molded from liquid crystal polymer, providing mechanical strength and high electrical insulation. Its flip lock actuator facilitates easy insertion and removal of flat flexible cables, while the locking mechanism ensures reliable retention during operation.
With an operating voltage of 50 V AC, a current rating of 400 mA, and an operating temperature range of -25°C to 85°C, it is well suited for industrial, consumer electronics, medical, and display applications such as touch panels and screens.
The connector includes brass solder tabs on either side to bolster board retention and mechanical stability under vibration or movement. Low profile design ideal for space sensitive applications. Zero insertion force flip lock actuator ensures easy cable mating.
Solder tabs for secure retention on PCB. Phosphor bronze contacts with tin over nickel plating for durability. Bottom contact type with horizontal orientation for versatile PCB layout. Operating voltage: 50 V AC, current: 400 mA.
Temperature range: -25°C to 85°C. Suitable for consumer, industrial, medical, and display electronics. Single row with 20 contacts. Housing material: liquid crystal polymer. Explore more electronics connectors and components at EnvMart for your professional and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector is 0.5 mm.
It has a current capacity of 400 mA.
The operating voltage for this connector is 50 V AC.
This connector operates within a temperature range of -25°C to 85°C.
It features 20 contacts arranged in a single row.
The housing is made of liquid crystal polymer, and the contacts are phosphor bronze plated with tin over nickel.
This model uses a bottom contact termination type.
The connector is designed for horizontal orientation.
It supports surface mounting.
It features a zero insertion force (ZIF) flip lock actuator for easy and secure FPC insertion.
The connector is manufactured in India.
It is suitable for industrial, consumer electronics, medical, and display applications such as touch panels and screens.
