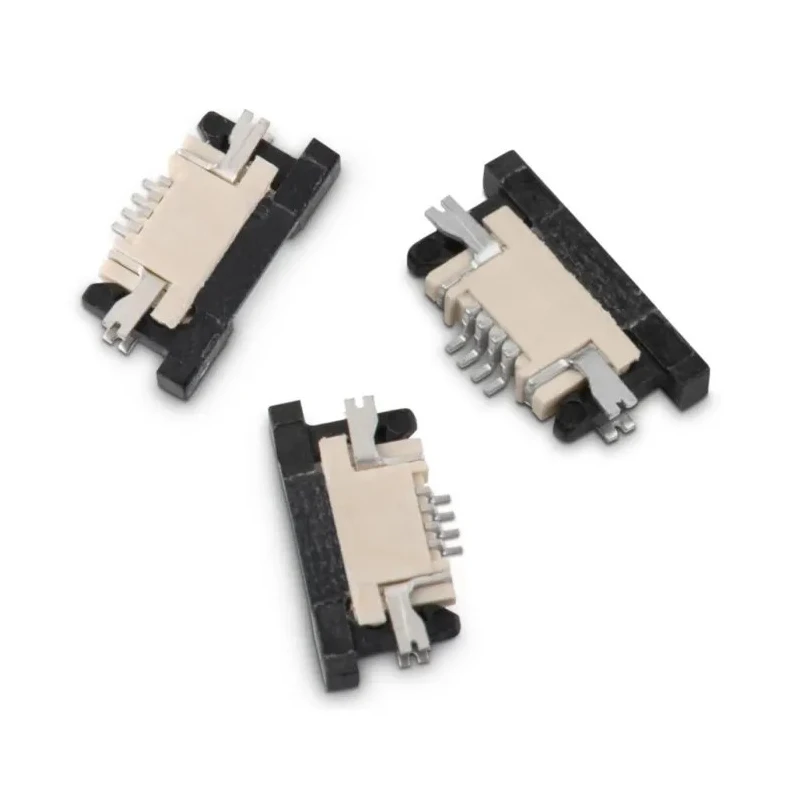

Wurth Elektronik WR-FPC 0.5 mm Pitch 18 Way Horizontal Female FPC Connector Surface Mount 687118183722
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 50V ac |
| Brand | Wurth Elektronik |
| Orientation | Horizontal |
| Current | 400mA |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | WR-FPC |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 85°C |
| Sub Type | FPC |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 1 |
| Pitch | 0.5mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 18 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Bottom |
Key Features
- Low profile connector height of 1.2 mm suitable for high density applications.
- Zero Insertion Force (ZIF) flip lock actuator allows easy FPC insertion with secure locking.
- Phosphor bronze contacts plated with tin over nickel ensuring durable electrical connection.
- Supports 50 V AC voltage and 400 mA current rating for reliable performance.
- Connector housing made of liquid crystal polymer offering thermal stability between -25°C to 85°C.
- Bottom contact position with locking mechanism for stable and reliable mounting.
- Designed for applications including displays, touch panels, consumer electronics, and industrial equipment.
Product Description
Wurth Elektronik 687118183722 WR-FPC Series surface mount FPC connector features a 0.5 mm pitch and 18 way horizontal female contacts designed for high density and miniaturized electronic applications. The connector's low profile design with a height of 1.2 mm makes it ideal for compact devices requiring secure and reliable connections.
Equipped with a Zero Insertion Force (ZIF) flip lock actuator, this connector simplifies the insertion of flexible printed circuits (FPC) while providing a strong retention force to ensure a stable electrical and mechanical connection. The actuator rotates fully to open the connector, allowing the FPC to be placed easily, then locks it firmly in place upon return rotation.
The contacts are made of phosphor bronze and plated with tin over nickel, providing durable conductivity and resistance to wear. The connector can withstand voltages up to 50 V AC and currents up to 400 mA, suitable for a variety of electronic circuits requiring low power connections.
The housing is constructed from liquid crystal polymer, imparting excellent thermal and mechanical stability with operating temperatures ranging from -25°C to 85°C. The bottom contact orientation and inclusion of solder tabs enhance the mechanical securing of the connector to printed circuit boards (PCBs).
Applications for this FPC Connector include miniaturized devices such as LCD displays, touch screens, tablets, mobile phones, cameras, and various industrial and medical equipment where space-saving, reliable interconnections are critical.
Low profile connector height of 1.2 mm suitable for high density applications. Zero Insertion Force (ZIF) flip lock actuator for easy insertion and reliable retention. Phosphor bronze contacts with tin over nickel plating for durability.
Supports 50 V AC voltage and 400 mA current ratings. Liquid crystal polymer housing offers thermal stability. Bottom contact position with locking mechanism and solder tabs for secure PCB mounting. Ideal for consumer electronics, industrial, medical, and display technologies.
Explore the wide range of Wurth Elektronik connectors for professional and industrial applications in the EnvMart catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a 0.5 mm pitch and has 18 contacts.
It supports a maximum voltage of 50 V AC.
The current rating for this connector is 400 mA.
The contacts are made of phosphor bronze and are plated with tin over nickel.
It operates within a temperature range of -25°C to 85°C.
The ZIF flip lock actuator allows for easy insertion of flexible printed circuits (FPC) and locks them securely in place upon rotation.
This unit is designed for surface mounting.
The contacts are oriented horizontally.
The housing is made from liquid crystal polymer, providing thermal stability.
It is suitable for applications such as displays, touch panels, consumer electronics, and industrial equipment.
Yes, it includes a locking mechanism to ensure stable and reliable mounting.
The connector features a Zero Insertion Force (ZIF) design for easy FPC insertion.
