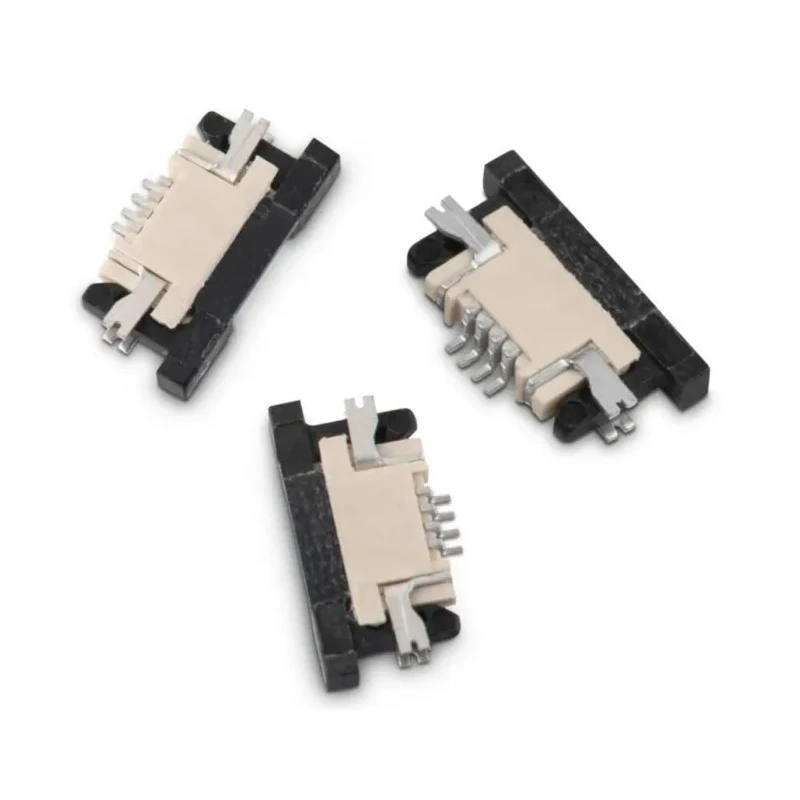

Wurth Elektronik WR-FPC 0.5 mm Pitch 14 Way Horizontal Female FPC Connector Surface Mount 687114183722
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 50V ac |
| Brand | Wurth Elektronik |
| Orientation | Horizontal |
| Current | 400mA |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | WR-FPC |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 85°C |
| Sub Type | FPC |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 1 |
| Pitch | 0.5mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 14 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Bottom |
Key Features
- This connector features a 0.5 mm pitch with 14 contacts to ensure precise connectivity.
- It utilizes phosphor bronze contacts plated with tin over nickel for reliable electrical performance.
- The low profile design of 1.2 mm height makes it suitable for high-density electronic assemblies.
- Flip lock actuator enables easy and secure insertion of flexible printed circuits with high retention force.
- Surface mount termination with brass solder tabs offers robust mechanical and electrical connection to PCBs.
- Designed for operation between -25°C and 85°C, handling voltages up to 50V AC and currents of 400 mA.
- Horizontal orientation with bottom contact position supports flexible PCB designs.
- Ideal for consumer electronics, industrial, medical, and business equipment requiring compact interconnect solutions.
Product Description
Wurth Elektronik 687114183722 is a 14 Way Horizontal Female FPC Connector with a fine 0.5 mm pitch designed for surface mount applications requiring zero insertion force (ZIF) mechanical insertion. It features a low profile height of 1.2 mm, making it an optimal choice for densely packed PCB layouts.
The connector uses phosphor bronze contacts with tin over nickel plating to provide durable and reliable conductivity. It includes a rotating flip lock actuator that secures the flexible printed circuit (FPC) once inserted, ensuring stable electrical and mechanical performance.
This connector is suitable for operation in temperatures ranging from -25°C up to 85°C, supports a voltage rating of 50V AC and a current rating of 400 mA. The horizontal, bottom contact orientation enhances design flexibility for various electronic applications.
Brass solder tabs on both sides secure the connector firmly to the printed circuit board, improving retention and durability in high-density electronics assemblies. It is ideal for use in miniaturized devices including displays, touch panels, personal computers, tablets, mobile phones, cameras, and a wide range of industrial, business, and medical equipment.
This FPC connector supports 14 contacts with a 0.5 mm pitch. The ZIF flip lock actuator eases assembly while providing strong retention. Surface mount termination with solder tabs enhances mechanical stability. Phosphor bronze contacts plated with tin over nickel ensure reliable conductivity.
Compact liquid crystal polymer housing minimizes connector height to 1.2 mm. The product maintains performance across a wide temperature range (-25°C to 85°C). Supports voltage up to 50V AC and current of 400 mA. Horizontal orientation and bottom contact placement benefit flexible PCB layouts.
Used extensively in electronics manufacturing for robust and reliable FPC connections, the Wurth Elektronik WR-FPC Connector series exemplifies precision and durability. This product is a new condition item and manufactured to exacting standards.
Explore more electronic connectors and FPC solutions in the Electronics & Electricals category on EnvMart for your industrial, commercial, and laboratory applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a pitch of 0.5 mm and includes 14 contacts.
It supports a maximum voltage of 50V AC and a current rating of 400 mA.
The contacts are made of phosphor bronze with tin over nickel plating, while the housing is constructed from liquid crystal polymer.
It operates effectively within a temperature range of -25°C to 85°C.
It utilizes surface mount termination with brass solder tabs for secure attachment to printed circuit boards.
This connector has a horizontal orientation with the contacts positioned at the bottom.
It features a zero insertion force (ZIF) mechanism with a flip lock actuator for easy and secure insertion of flexible printed circuits.
It is ideal for use in consumer electronics, industrial, medical, and business equipment that require compact interconnect solutions.
The height of this model is 1.2 mm, making it suitable for high-density electronic assemblies.
This connector has a single row configuration.
Yes, it is specifically designed for flexible printed circuits with its ZIF insertion mechanism and secure locking feature.
The connector is manufactured in India.
