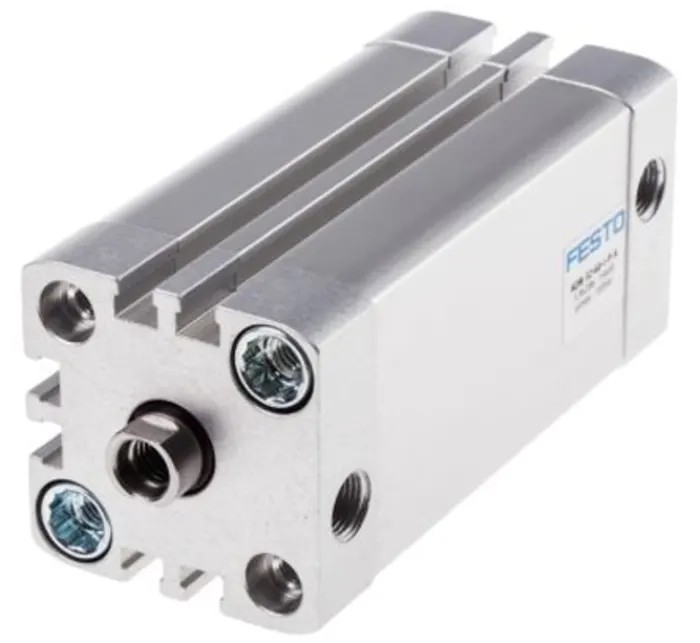

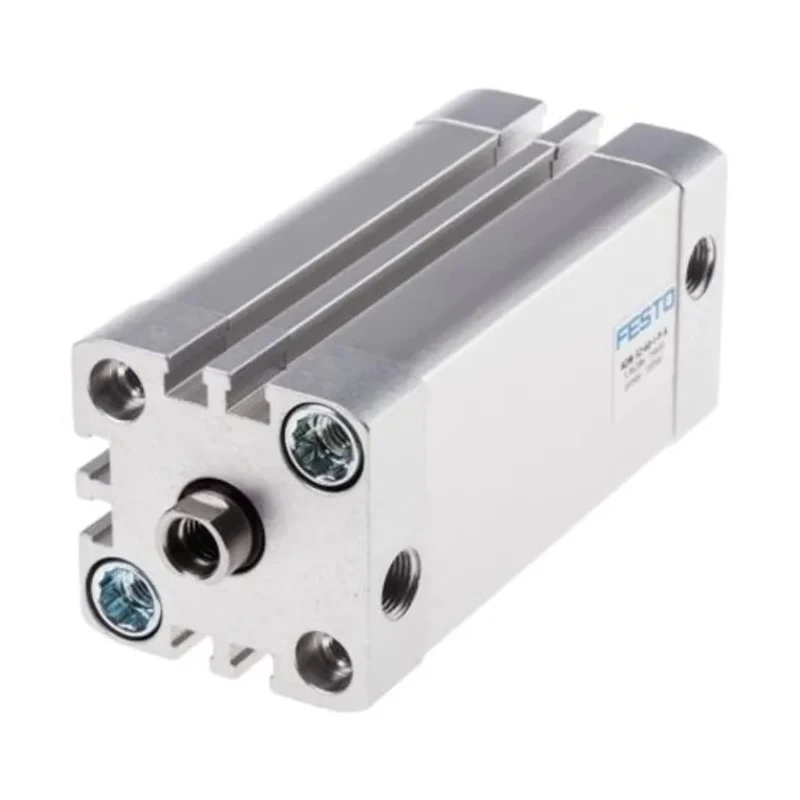

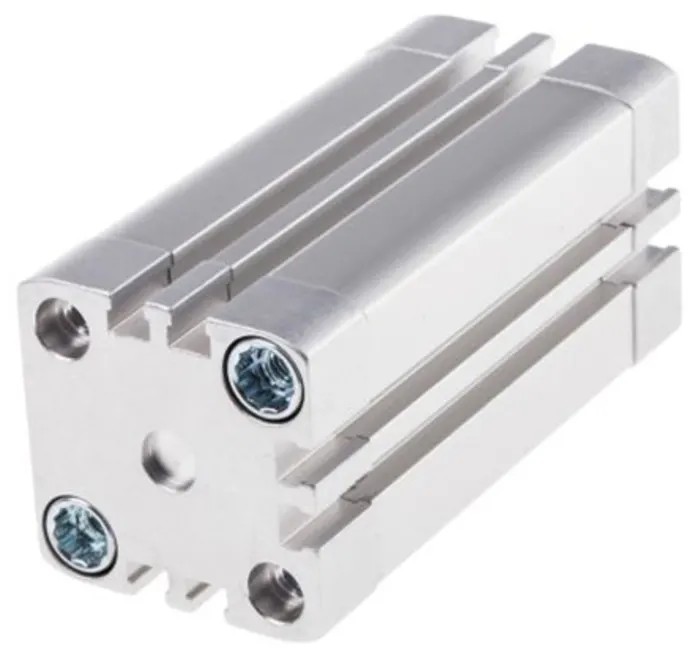

Festo ADN Series Pneumatic Cylinder 50mm Bore, 40mm Stroke, Double Acting, Aluminium Body ADN-50-40-I-PPS-A
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Festo |
| Body Material | Aluminium |
| Maximum Operating Pressure | 10 bar |
| Height | 65.5mm |
| Length | 92.7mm |
| Model | ADN-50-40-I-PPS-A |
| Width | 65.5mm |
| Mount Type | Through Hole |
| Series | ADN |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -20°C |
| Stroke Length | 40mm |
| Bore Diameter | 50mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Standards/Approvals | ISO 21287, RoHS |
| Cushioning Type | Air Cushion |
| Piston Rod Gender | Female |
| Piston Rod Thread Size | 1/8 in G |
Key Features
- Compact ADN series design is up to 50% smaller than standard cylinders for confined space use.
- Double acting operation allows compressed air to advance and retract the piston rod.
- Aluminium body material ensures lightweight and corrosion resistance.
- Air cushioning reduces noise and vibration, extending service life.
- Complies with ISO 21287 standard and RoHS directive for quality assurance.
- Through hole mount type facilitates versatile installation options.
- Maximum operating pressure of 10 bar for reliable pneumatic control.
- Operating temperature range from -20°C to 80°C supports varied environments.
Product Description
Festo ADN-50-40-I-PPS-A pneumatic cylinder is a compact double acting actuator with a 50mm bore and 40mm stroke length, designed for precise linear motion in industrial pneumatic applications. The aluminium body provides durability and corrosion resistance, making it ideal for manufacturing, automation, and material handling environments. This ADN series cylinder complies with ISO 21287 standards and RoHS, ensuring high quality and environmental safety.
The actuator operates by applying compressed air to extend and retract the piston rod through dual connection ports. Its air cushioning system reduces noise and vibration to prolong the cylinder's service life and enhance productivity. The single rod design features a female piston rod thread sized 1/8 in G, suitable for various mounting and attachment requirements.
This pneumatic cylinder is suitable for horizontal or vertical mounting using through hole mounting options. It is compatible with flush mounting proximity sensors for magnetic piston rod position detection, facilitating automated feedback and control.
Compact design for use in confined spaces. Double acting piston for effective forward and return motion. Aluminium body construction ensures light weight and corrosion resistance. Air cushioning minimizes operational noise and vibration.
Compliant with ISO 21287 and RoHS standards for quality and safety. Maximum operating pressure of 10 bar provides reliable performance. Wide operating temperature range from -20°C to 80°C. Through hole mounting supports flexible installation.
Magnetic piston rod enables non-contact position sensing.
This pneumatic cylinder is well suited for industrial automation, manufacturing machinery, HVAC systems, and packaging equipment where reliable and precise actuation is required. For additional accessories and compatible mounting options, consult the Festo ADN series catalog. Explore related Pneumatic Cylinders and actuators at EnvMart for comprehensive fluid power solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a bore diameter of 50mm and a stroke length of 40mm.
The maximum operating pressure is 10 bar, ensuring reliable pneumatic control.
It operates within a temperature range of -20°C to 80°C, making it suitable for varied environments.
This unit supports through hole mounting, allowing for flexible installation options.
The body is made of aluminium, providing lightweight and corrosion resistance.
Air cushioning reduces noise and vibration during operation, which helps to extend the service life of the cylinder.
Yes, it complies with ISO 21287 standards and the RoHS directive for quality assurance and environmental safety.
The piston rod is of single type with a female thread size of 1/8 in G.
Yes, it is compatible with flush mounting proximity sensors for magnetic piston rod position detection, which facilitates automated feedback and control.
It is well suited for industrial automation, manufacturing machinery, HVAC systems, and packaging equipment where reliable actuation is required.
The dimensions are 65.5mm in height, 92.7mm in length, and 65.5mm in width.
This model operates as a double acting cylinder, allowing for effective forward and return motion.
