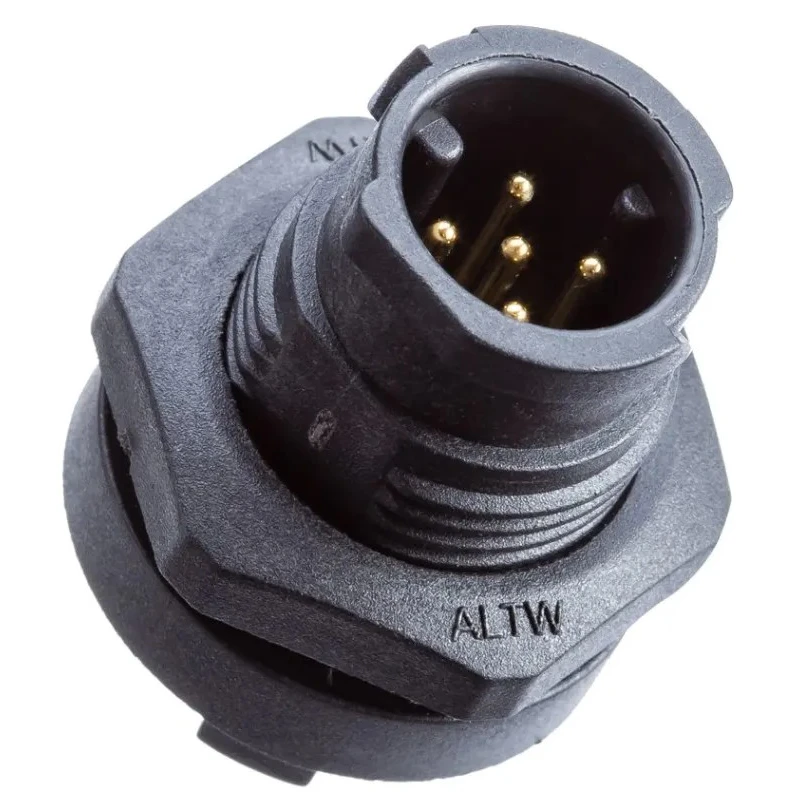

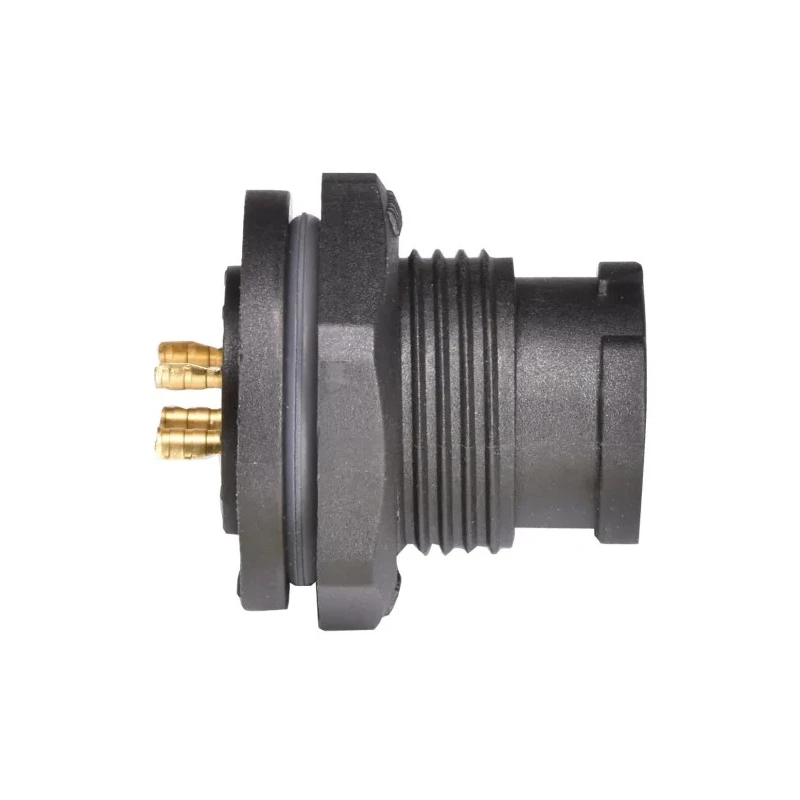

Amphenol Industrial Circular Connector 5 Contacts Panel Mount Miniature Plug Male IP68 X-LOK Series AD-05PMMS-QC8001
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 300V |
| Brand | Amphenol Industrial |
| Orientation | Straight |
| Current | 5A |
| Model | AD-05PMMS-QC8001 |
| IP Rating | IP68 |
| Mount Type | Panel Mount |
| Housing Material | Nylon Fibreglass |
| Contact Material | Copper Alloy |
| Series | X-LOK |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | UL 94 V-0 |
| Pole Format | 5 |
| Contact Plating | Gold Plated |
| Number of Contacts | 5 |
| Contact Gender | Male |
| Shell Size | 14.8 mm |
| Mating Type | Push Lock |
| Connector Size | Miniature |
| Plug/Socket | Plug |
Key Features
- Designed for industrial applications with a compact miniature connector size.
- Provides secure solder termination with push lock mating type for reliable connections.
- Constructed with nylon fiberglass housing ensuring durability and UL 94 V-0 flame rating.
- Gold plated copper alloy contacts enhance corrosion resistance and conductivity.
- Suitable for harsh environments, rated IP68 for dust and water ingress protection.
- Operates reliably in temperature ranges from -40°C to 105°C.
- Straight orientation and front fastening for easy panel mount integration.
Product Description
The Amphenol Industrial AD-05PMMS-QC8001 circular connector is a high-quality miniature panel mount plug designed specifically for demanding industrial electrical connections. This connector features 5 male contacts rated at 5 amperes and 300 volts, providing reliable power distribution in various industrial, manufacturing, and automation settings.
Constructed with a robust nylon fiberglass housing, the connector offers excellent mechanical strength and flame resistance compliant with UL 94 V-0 standards. The contacts are made of copper alloy and feature gold plating, ensuring superior conductivity and resistance to corrosion even in challenging environments.
Its compact 14.8 mm shell size and miniature connector classification make it ideal for applications where space is limited. The connector uses a push lock mating type with an X-LOK series design, providing secure and quick panel mount installation with front fastening.
The AD-05PMMS-QC8001 operates reliably across a wide temperature range from -40°C to 105°C and is rated to IP68 standards for water and dust ingress protection, making it suitable for outdoor and harsh industrial environments.
Miniature size suitable for compact industrial assemblies. 5 gold plated copper alloy contacts rated 5A, 300V. Solder termination for secure connections. Push lock mating type with X-LOK series for reliable fastening. Panel mount straight orientation with front fastening.
Nylon fiberglass housing with UL 94 V-0 flame rating. Operating temperature range from -40°C to 105°C. IP68 rated for protection against dust and water ingress.
This connector is extensively used in industrial automation, machinery, power distribution panels, and manufacturing equipment requiring robust, compact, and reliable electrical connection solutions. The panel mount design facilitates easy integration into control cabinets and enclosures.
Explore more connectors and complementary components in our Electronics & Electricals category for a complete industrial connection system tailored to your applications.
Explore more products in our Industrial Circular Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 5 amperes and a voltage rating of 300 volts, making it suitable for various industrial applications.
It is rated IP68, providing protection against dust and water ingress, which is ideal for harsh environments.
The housing is made of nylon fiberglass, and the contacts are made of copper alloy with gold plating for enhanced conductivity and corrosion resistance.
It operates reliably within a temperature range of -40°C to 105°C, suitable for various industrial conditions.
This unit features solder termination, ensuring secure and reliable electrical connections.
It utilizes a push lock mating type, which allows for secure and quick connections during installation.
The shell size of this connector is 14.8 mm, making it compact for space-constrained applications.
This model features 5 male contacts, suitable for various electrical connection needs.
It has a straight orientation and is designed for panel mount installation, facilitating easy integration into control systems.
The housing material complies with UL 94 V-0 standards, indicating its flame resistance and safety in industrial applications.
It is extensively used in industrial automation, machinery, power distribution panels, and manufacturing equipment that require reliable electrical connections.
This connector is part of the X-LOK series, known for its secure fastening and reliable performance in industrial settings.
