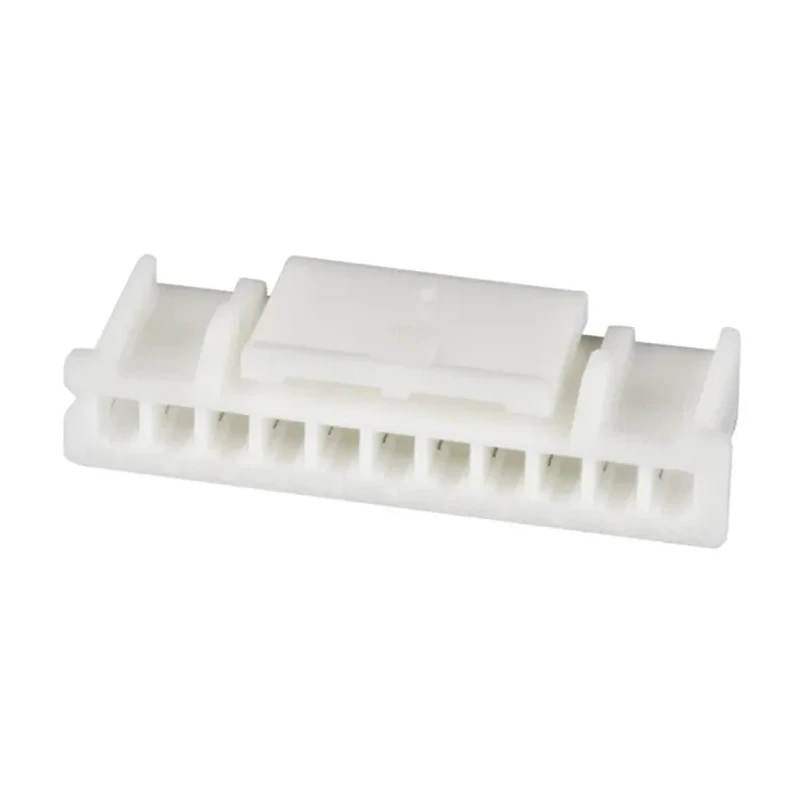

JST PA Female Connector Housing 2 mm Pitch 11 Way 1 Row Straight PAP-11V-S
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | JST |
| Orientation | Straight |
| Length | 24mm |
| Model | PAP-11V-S |
| Width | 5.8mm |
| Mount Type | Cable |
| Housing Material | Nylon |
| Series | PA |
| Number of Rows | 1 |
| Pitch | 2mm |
| For Use With | Crimp Connector |
| Number of Contacts | 11 |
| Connector Gender | Female |
Key Features
- Compact PA series housing provides a secure wire-to-board connection.
- Features additional locking mechanism to prevent accidental disconnection.
- Constructed from durable nylon material for reliable performance.
- Suitable for industrial, household appliance, and networking system applications.
- Top and side entry headers available for versatile mounting.
- Made in Japan, ensuring high quality manufacturing standards.
- Compatible with JST PA series connectors on 2.0 mm pitch.
- Offers reliable anti-vibration connection with thumb depress locking mechanism.
Product Description
JST PAP-11V-S female connector housing is a high-quality 2 mm pitch, 11 way, 1 row straight cable-mounted connector housing from the PA series. This housing is designed for use with crimp connectors and provides a secure wire-to-board connection interface optimized for electronic components and power connectors.
Manufactured from robust nylon material, this housing offers excellent durability and protection in various industrial settings including household appliances, industrial controls, storage systems, and networking equipment.
The PA series features an additional locking device that prevents accidental disconnections caused by vibration or assembly handling, ensuring a robust and dependable connection. Its compact size with dimensions of 24 mm in length and 5.8 mm in width supports installation in space-constrained environments.
This female connector housing supports the JST PA range on a 2.0 mm pitch, providing compatibility with top and side entry headers. The design incorporates polarising guides for correct insertion, and a thumb depress mechanism to secure locking easily.
Compact PA series housing provides a secure wire-to-board connection. Features additional locking mechanism to prevent accidental disconnection. Constructed from durable nylon material for reliable performance. Suitable for industrial, household appliance, and networking system applications.
Top and side entry headers available for versatile mounting. Housing dimensions: 24 mm length, 5.8 mm width. Made in Japan, ensuring high quality manufacturing standards. Compatible with JST PA series connectors on 2.0 mm pitch.
Offers reliable anti-vibration connection with thumb depress locking mechanism.
This connector housing is ideal for users needing a compact, reliable, and secure electronic connector solution in laboratory, industrial manufacturing, electronics assembly, and HVAC control systems.
Explore more Connector Housing options and related electronic components in our Electronics & Electricals catalog at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of the JST PAP-11V-S connector housing is 2 mm.
This connector housing supports 11 contacts.
The housing is constructed from nylon material.
The dimensions of this connector housing are 24 mm in length and 5.8 mm in width.
This connector housing uses cable mounting.
The orientation of this connector housing is straight.
Yes, it is compatible with JST PA series connectors on a 2.0 mm pitch.
This connector housing is suitable for industrial, household appliance, and networking system applications.
Yes, it features an additional locking mechanism to prevent accidental disconnection.
The connector housing is made in Japan.
It incorporates polarising guides for correct insertion and a thumb depress mechanism for easy locking.
The JST PAP-11V-S connector housing belongs to the PA series.
