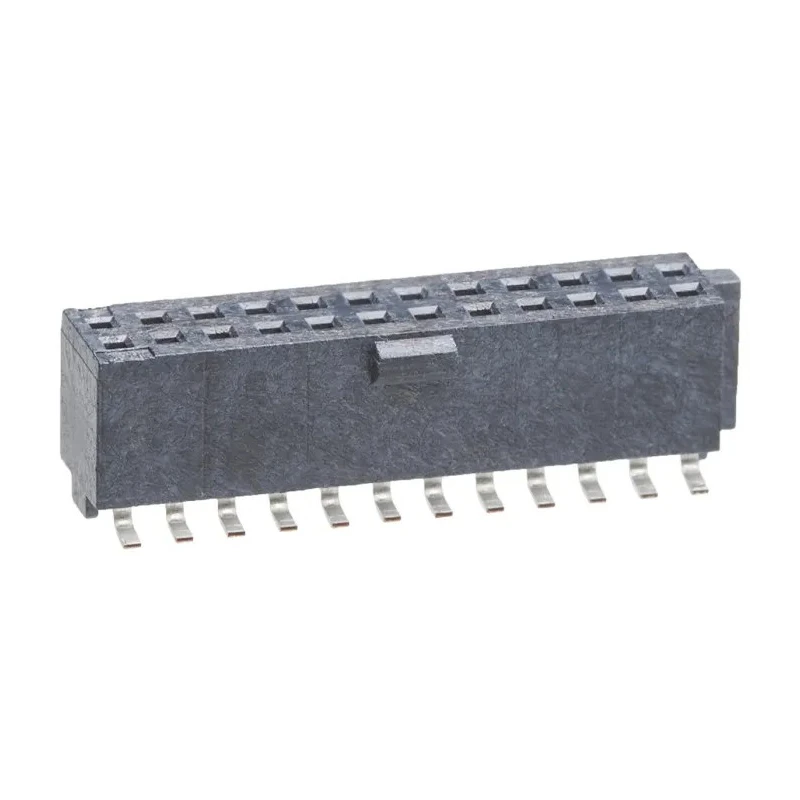

Molex Slim-Grid Series Straight Surface PCB Socket 24-Contact 2 Row 1.27 mm Pitch Solder 78120-2407
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 125V |
| Brand | Molex |
| Orientation | Straight |
| Current | 1.4A |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper |
| Series | Slim-Grid |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 24 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Row Pitch | 2mm |
Key Features
- Features a high density 1.27 x 1.27 mm grid design for flexible board-to-board applications.
- Includes polarization slots and tabs to prevent incorrect orientation and mismating.
- Secure locking windows and ramps ensure robust connections when mated.
- Constructed with a liquid crystal polymer housing and copper contact material.
- Supports a maximum current of 1.4 A and voltage up to 125 V.
- Gold plating on contacts provides reliable conductivity and corrosion resistance.
- Designed for surface mount with straight orientation mounting on PCB.
- Operates reliably within a temperature range of -55°C to 105°C.
Product Description
The Molex 78120-2407 Slim-Grid Series Straight Surface PCB Socket is a high-performance board-to-board connector designed for applications requiring a compact footprint with high contact density.
This 24-contact socket arranged in 2 rows with a 1.27 mm pitch ensures design flexibility for high-density PCB applications. Its construction features a durable liquid crystal polymer housing and copper contacts with gold plating that provide reliable electrical performance and corrosion resistance.
Polarization slots and tabs are included to prevent incorrect orientation and mismating, while locking windows and ramps secure a robust connection once mated. It is designed for straight surface mount orientation suitable for precise PCB placement, supported by PCB locating pegs.
The connector supports currents up to 1.4 A and voltages up to 125 V, making it suitable for automotive, industrial, white goods, communication devices, and consumer electronics such as routers, switches, car audio systems, and smartphones.
Its operating temperature range of -55°C to 105°C ensures reliability across various environmental conditions encountered in industrial and automotive sectors. High density 1.27 x 1.27 mm grid pitch connector. Polarization features to prevent mismating.
Locking windows and ramps for secure mating. Liquid crystal polymer housing for durability. Gold-plated copper contacts for enhanced conductivity. Surface mount straight orientation on PCB. Supports 1.4 A current and 125 V voltage rating.
Wide operating temperature range of -55°C to 105°C. Ideal for automotive, industrial, and consumer electronics. Explore the comprehensive range of PCB Sockets and connectors on EnvMart to support your electronic assembly needs with reliable components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current of 1.4 A and a voltage rating of up to 125 V.
It features a 1.27 mm pitch and has a total of 24 contacts arranged in 2 rows.
The housing is made from liquid crystal polymer, and the contacts are constructed from copper with gold plating for enhanced conductivity and corrosion resistance.
It operates reliably within a temperature range of -55°C to 105°C.
This unit is designed for surface mount with a straight orientation on the PCB, supported by PCB locating pegs.
It includes polarization slots and tabs to prevent mismating and ensure correct orientation during installation.
The termination type for this connector is solder, suitable for secure connections on the PCB.
It is suitable for automotive, industrial, white goods, communication devices, and consumer electronics such as routers, switches, and smartphones.
The connector system type is board-to-board, allowing for flexible connections between PCBs.
The pitch for the rows is 2 mm, ensuring a compact design for high-density applications.
The country of origin for this model is India.
It features locking windows and ramps that secure a robust connection once mated, enhancing reliability during use.
