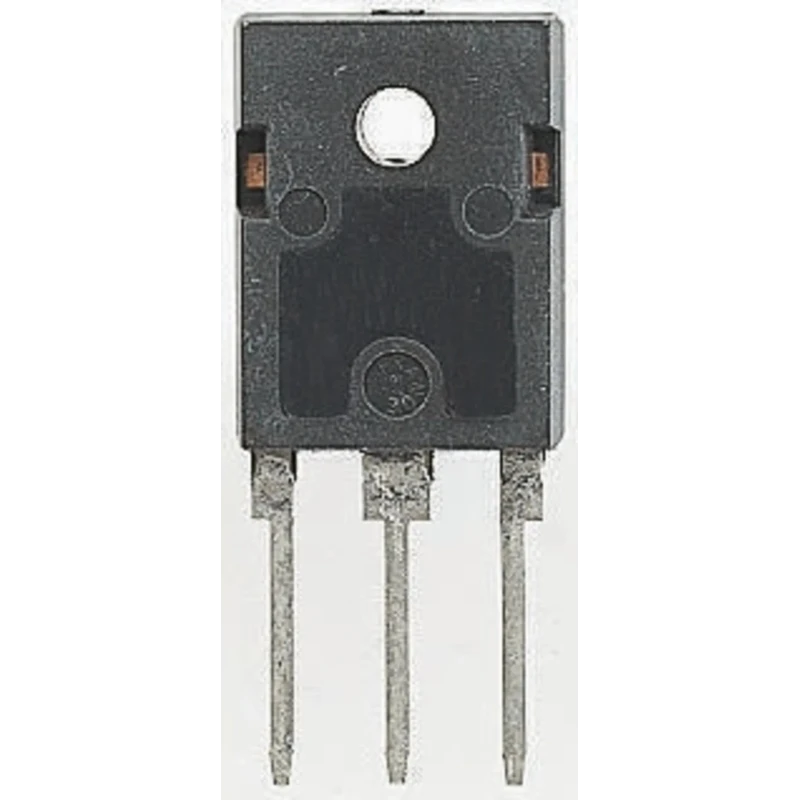

STMicroelectronics 1200 V 30 A Switching Rectifier Diode, Through Hole, DO-247 Package STTH3012W

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics 1200 V 30 A Switching Rectifier Diode, Through Hole, DO-247 Package STTH3012W

Name: STMicroelectronics 1200 V 30 A Switching Rectifier Diode, Through Hole, DO-247 Package STTH3012W
Brand: STMicroelectronics
SKU: 145266



Category Semiconductors Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Diameter	3.55mm
Brand	STMicroelectronics
Height	20.15mm
Length	15.75mm
Model	STTH3012W
Width	5.15mm
Mount Type	Through Hole
Series	STTH3012
Maximum Operating Temperature	175°C
Package Type	DO-247
Minimum Operating Temperature	-65°C
Standards/Approvals	RoHS
Pin Count	2
Maximum Continuous Forward Current If	30A
Peak Reverse Repetitive Voltage Vrrm	1200V
Diode Configuration	Single
Rectifier Type	Switching
Peak Reverse Current Ir	20μA
Peak Non-Repetitive Forward Surge Current Ifsm	210A
Maximum Forward Voltage Vf	2.25V
Peak Reverse Recovery Time trr	115ns

Key Features

Maximum continuous forward current of 30 amperes to support high power applications.
Peak reverse repetitive voltage of 1200 volts ensures robust blocking capability.
Low maximum forward voltage drop of 2.25 V for efficient conduction.
Fast peak reverse recovery time of 115 nanoseconds promotes rapid switching.
High surge current capacity up to 210 amperes for transient conditions.
Temperature operating range from -65°C minimum to 175°C maximum for harsh environments.
Single diode configuration with 2 pins in a DO-247 package for through-hole mounting.
RoHS compliant with environmentally friendly materials.

Product Description

STMicroelectronics STTH3012W is a high-performance switching rectifier diode designed for industrial and commercial electronics. It features a maximum continuous forward current rating of 30 amperes and a peak reverse repetitive voltage of 1200 volts, making it suitable for demanding power conversion and rectification tasks. Packaged in a robust DO-247 through-hole package, this diode supports reliable insertion and mounting in printed circuit boards.

The diode exhibits a maximum forward voltage of 2.25 volts, ensuring efficient conduction performance while minimizing power loss during operation. Its peak reverse recovery time of 115 nanoseconds allows for swift switching performance, optimizing efficiency in fast switching applications.

Designed to operate in extreme conditions, the STTH3012W supports a wide ambient temperature range from -65°C to 175°C, making it suitable for use in harsh industrial environments. The device also withstands peak non-repetitive forward surge currents up to 210 amperes to handle overload and transient scenarios effectively.

The physical dimensions include a height of 20.15 mm, length of 15.75 mm, width of 5.15 mm, and a pin diameter of 3.55 mm. Its single diode configuration and two-pin design simplify the integration into various electronic assemblies.

The STTH3012W diode complies with RoHS environmental standards, ensuring it meets industry requirements for hazardous substance restrictions.

This component is widely used in industrial power supplies, rectifiers, switching regulators, and other electronic systems requiring high reliability and durability. It is suitable for design engineers and manufacturers seeking a reliable diode solution for power management.

Package Contents: 1 Pc STMicroelectronics STTH3012W Switching Rectifier Diode (Supplied in a Tube). Explore our comprehensive selection of semiconductor components and rectifiers at EnvMart for advanced industrial applications.
