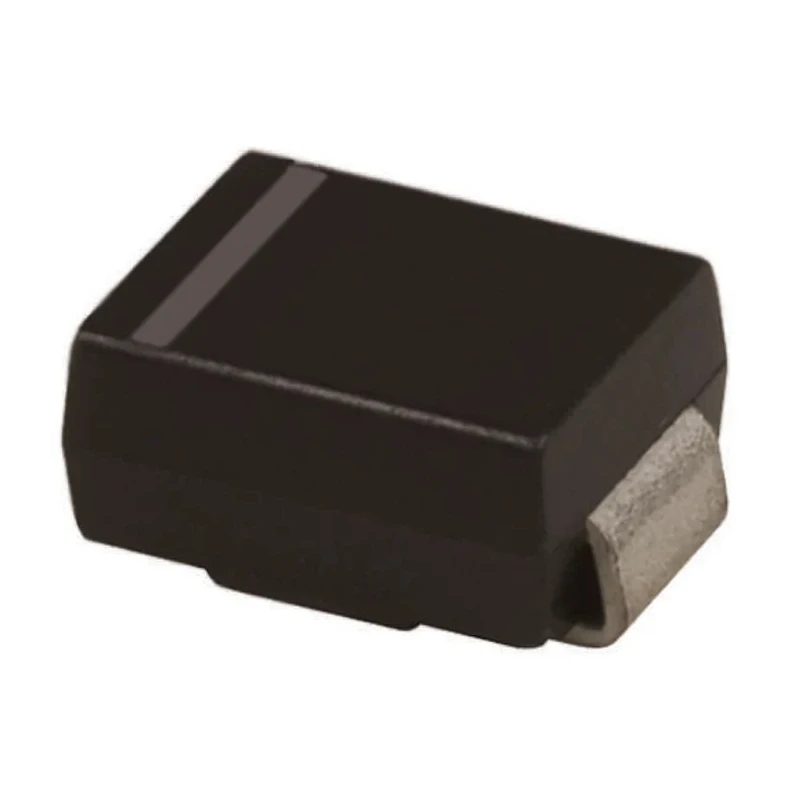

STMicroelectronics 600 V 2 A Surface Mount Switching Diode DO-214AA STTH2L06U

STMicroelectronics STTH2L06U is a high-performance surface mount switching diode designed for electronic circuits requiring effective rectification and switching capabilities. Rated at 600 V peak reverse repetitive voltage and a maximum continuous forward current of 2 A, this diode is manufactured in a DO-214AA package, facilitating compact and reliable surface mounted PCB layouts.

This diode’s single configuration and 2-pin design optimize it for power and switching applications in industrial electronics and embedded systems. It features a maximum forward voltage of 1.3 V, contributing to energy-efficient operation by reducing conduction losses. Its minimal peak reverse current of 2 microamperes ensures stable performance and low leakage, critical for precision circuits.

The STTH2L06U diode is designed to operate reliably over a wide temperature range from -65°C to 175°C, making it suitable for harsh environmental conditions and automotive electronics. The device can withstand a peak non-repetitive forward surge current of 35 A, allowing it to manage transient current spikes without damage. Its fast peak reverse recovery time of 85 nanoseconds supports high-frequency switching needs typical in power supplies and switch mode power supplies (SMPS).

Physically, this diode measures 4.6 mm in length, 3.95 mm in width, and 2.45 mm in height, providing a compact footprint that is ideal for modern assembly techniques. It does not carry any specific standards certification or automotive approval but remains a trusted choice in industrial, laboratory, and commercial electronic designs requiring reliable diode switching performance.

Features a single diode configuration for efficient switching applications. Encapsulated in a compact DO-214AA package suitable for surface mounting. Offers a maximum forward voltage of 1.3 V ensuring low power loss. Capable of operating within a temperature range from -65°C to 175°C.

Peak reverse current is minimal at 2 microamperes for improved reliability. Has a high peak non-repetitive forward surge current of 35 A for transient load conditions. Peak reverse recovery time of 85 nanoseconds supports fast switching speeds.

Physical dimensions include length 4.6 mm, width 3.95 mm, and height 2.45 mm.

This diode is broadly applicable in semiconductor switching, power management circuits, and embedded electronics across industrial, commercial, automotive, and laboratory environments. Its reliable operation and surface mount design allow for integration in space-constrained and demanding circuit boards.
