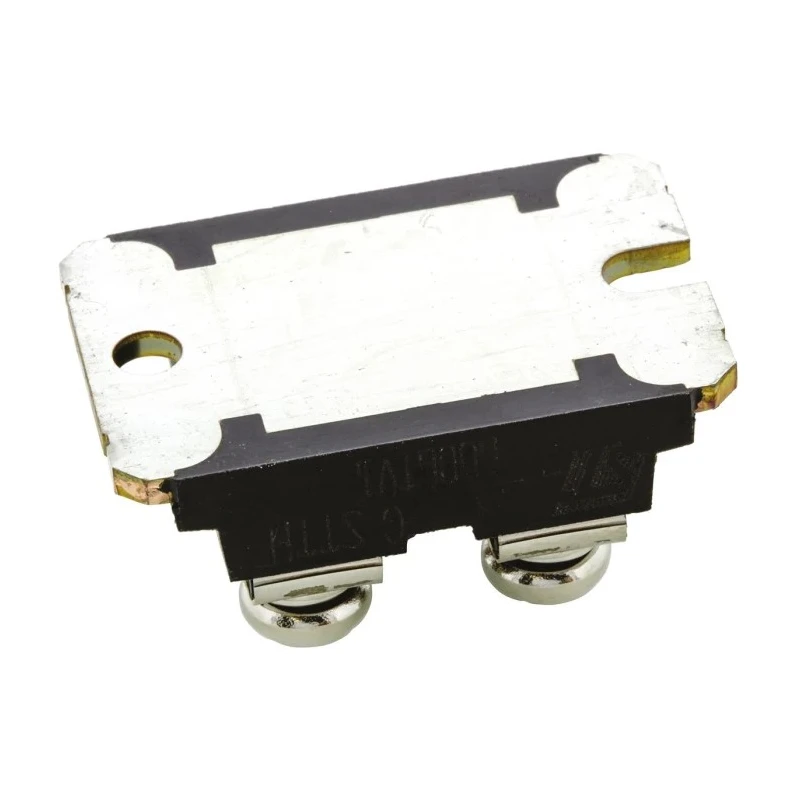

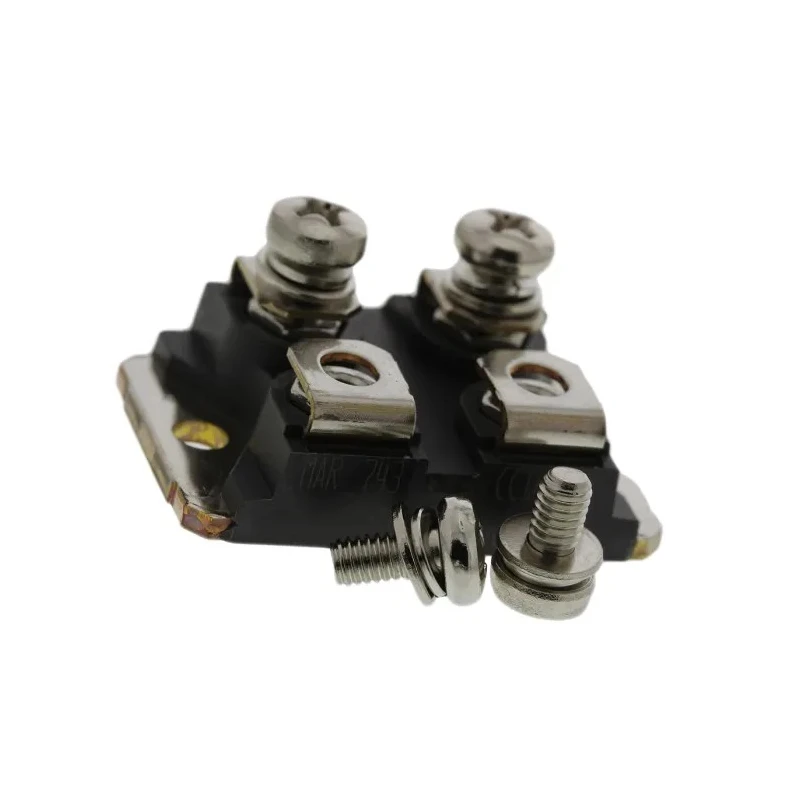

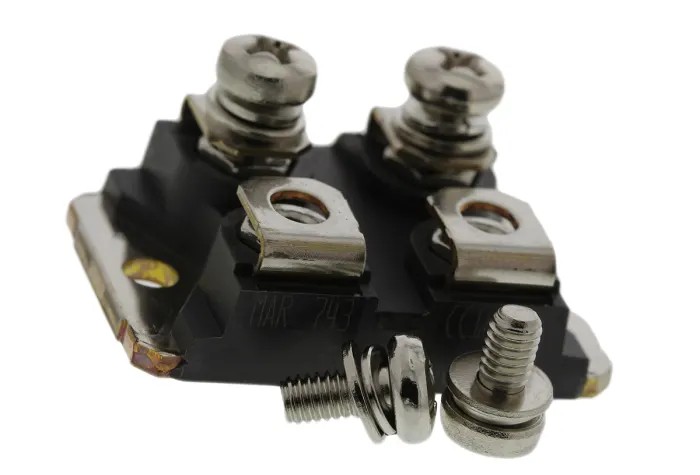

STMicroelectronics 600 V 30 A Switching Diode 4-Pin ISOTOP STTH6006TV1
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 4mm |
| Brand | STMicroelectronics |
| Height | 9.1mm |
| Length | 38.2mm |
| Model | STTH6006TV1 |
| Width | 25.5mm |
| Mount Type | Panel |
| Series | STTH6006TV |
| Maximum Operating Temperature | 150°C |
| Package Type | ISOTOP |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Maximum Continuous Forward Current If | 30A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Isolated |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 25μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 210A |
| Maximum Forward Voltage Vf | 1.85V |
| Peak Reverse Recovery Time trr | 70ns |
Key Features
- Panel mountable diode with isolated configuration providing efficient switching.
- Designed for high surge current tolerance with 210 A peak non-repetitive forward surge current.
- Fast switching capability with peak reverse recovery time of 70 ns.
- Operating temperature range from -55°C to 150°C ensures reliable performance under extreme conditions.
- Compact dimensions measuring 38.2 mm length, 25.5 mm width, and 9.1 mm height for space-saving applications.
- Maximum forward voltage of 1.85 V minimizing power loss during operation.
- Low peak reverse current of 25 μA increasing efficiency in power circuits.
- Compliance to RoHS standards ensures environmentally friendly manufacturing.
Product Description
STMicroelectronics STTH6006TV1 switching diode is engineered for robust power electronics applications requiring high voltage and current capabilities. The device features a 4-pin ISOTOP package designed for panel mounting, providing an isolated diode configuration that enhances circuit reliability and simplifies integration.
This diode supports a maximum continuous forward current of 30 A and a peak reverse repetitive voltage of 600 V, making it suitable for demanding industrial, power supply, and automotive applications where switching performance and thermal resilience are critical.
With a peak non-repetitive forward surge current rating of 210 A and a minimal peak reverse recovery time of 70 ns, the STTH6006TV1 delivers fast switching performance, reducing switching losses and improving efficiency in high-frequency circuits.
The diode operates reliably within a wide temperature range from -55°C to 150°C, accommodating extreme environmental conditions in industrial and automotive sectors. Its maximal forward voltage of 1.85 V and low peak reverse current of 25 μA contribute to energy savings and reduce heat generation during operation.
Physically, the diode measures 38.2 mm in length, 25.5 mm in width, 9.1 mm in height, with a 4 mm diameter pin, enabling compact design layouts. It meets RoHS compliance standards, confirming its adherence to environmental regulations.
Panel mountable diode with isolated diode configuration for efficient switching. Supports continuous forward current of 30 A and peak reverse voltage of 600 V. Peak non-repetitive surge current at 210 A for transient robustness.
Fast peak reverse recovery time of 70 ns for high-frequency applications. Wide operating temperature range from -55°C to 150°C for industrial usage. Compact ISOTOP package dimensions suited for space-constrained installations.
Low forward voltage drop and minimal reverse leakage current for energy efficiency. RoHS compliant for eco-friendly manufacturing standards.
This STMicroelectronics STTH6006TV1 diode is ideal for use in power supplies, industrial controls, automotive electronics, and other systems requiring reliable high-current switching diodes. For exploring other semiconductors and related components, please browse the Semiconductors category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 30 A.
It has a peak non-repetitive forward surge current rating of 210 A.
The diode measures 38.2 mm in length, 25.5 mm in width, and 9.1 mm in height.
It operates reliably within a temperature range from -55°C to 150°C.
The maximum forward voltage drop is 1.85 V, which helps minimize power loss during operation.
This diode uses a 4-pin ISOTOP package designed for panel mounting.
It complies with RoHS standards, ensuring environmentally friendly manufacturing.
The diode has a pin count of 4.
The diode features an isolated configuration, enhancing circuit reliability.
The STTH6006TV1 is manufactured in India.
