Hirose FPC Connector 0.5 mm Pitch 20 Way Straight Female Solder Type FH34SRJ

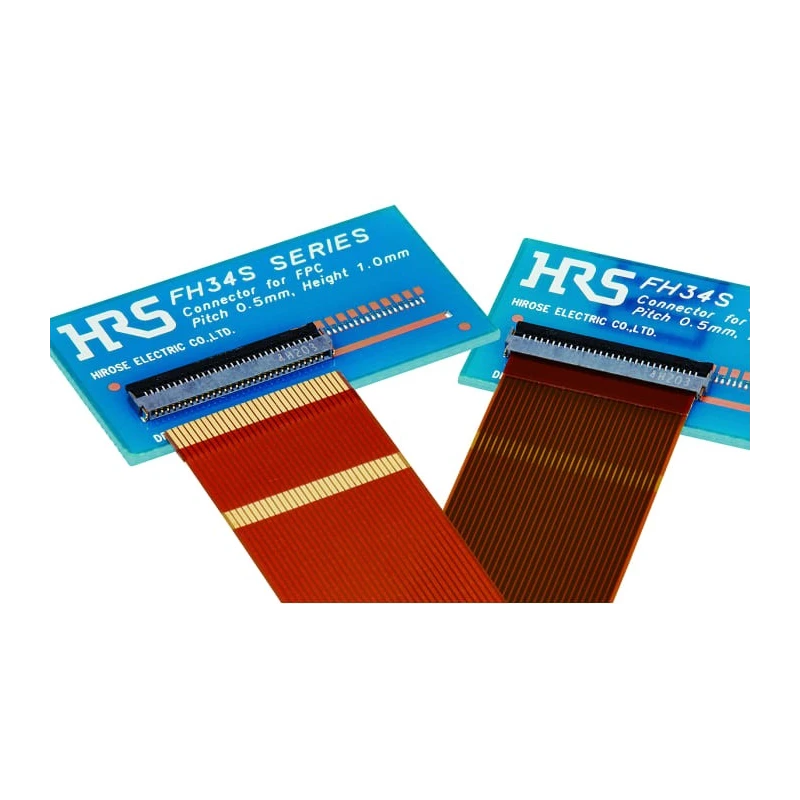

The Hirose FH34SRJ model is a 0.5 mm pitch, 20 way straight female FPC connector designed for surface mounting with solder termination. This connector features a low profile of 1.00 mm, making it ideal for compact electronic devices such as mobile phones, notebook PCs, DVDs, and LCD monitors.

It incorporates a back-flip rotating actuator that facilitates zero insertion force (ZIF), enabling easy insertion of FPC/FFC cables with minimal wear. The actuator provides a tactile click upon locking, confirming secure retention. The connector supports top and bottom contacts, enhancing design flexibility with its single-row, 20-contact configuration.

Constructed from durable phosphor bronze contacts plated with nickel and gold, and housed in polyamide and liquid crystal polymer materials, the connector offers reliable electrical conductivity and mechanical stability. It is rated for a voltage of 50V AC and a current of 500mA, operating reliably across a temperature range of -55°C to 85°C.

The connector housing includes chamfered inner walls for smoother FPC insertion and a flat upper surface suited for vacuum pick-up and placement during assembly. Moreover, its design prevents exposure of contacts on the bottom, allowing installation over conductive PCB traces without risk of shorts.

This FH34SRJ series connector is compliant with halogen-free standards per IEC61249-2-21, supporting environmentally conscious manufacturing processes.

Key applications include use in industrial, laboratory, consumer electronics, telecommunications, and commercial electronics environments where compact and reliable PCB interconnect solutions are essential.

Low profile height of 1.00 mm allows slim device integration. Back-flip rotating actuator ensures easy cable insertion with zero insertion force. High retention force guarantees secure electrical and mechanical connection.

Top and bottom contacts provide flexible PCB layout options. Durable phosphor bronze contacts with nickel and gold plating. Polyamide and liquid crystal polymer housing ensures robust durability. Voltage rating of 50V AC and current rating of 500mA for safe operation.

Operating temperature range from -55°C up to 85°C. Halogen-free compliant according to IEC61249-2-21. Suitable for mobile phones, notebook PCs, DVDs, LCD monitors, and similar applications. Browse the EnvMart electronics connectors category for more Hirose FPC Connectors and related interconnect solutions designed for industrial and commercial applications.
