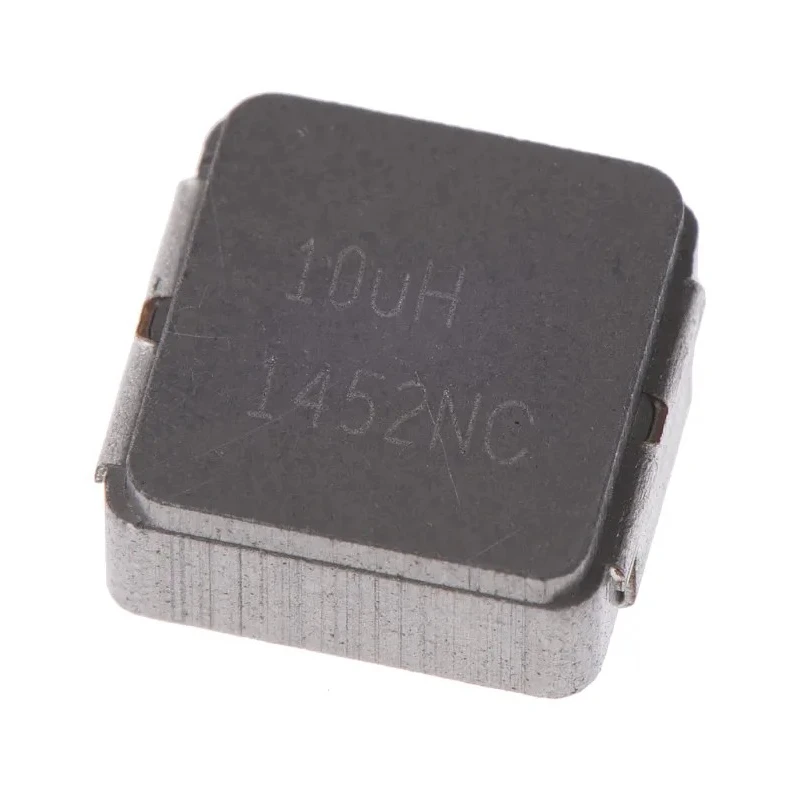

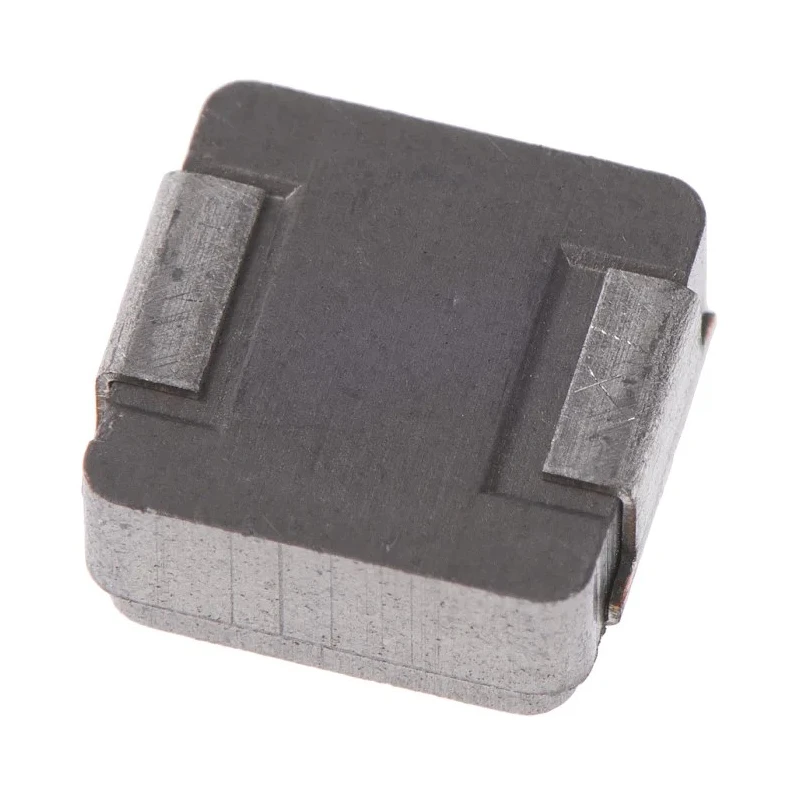

Vishay 2225 Shielded Wirewound Surface Mount Inductor with Metal Composite Core 10 µH ±20% 3 A IDC IHLP2525CZER100M01
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 3mm |
| Length | 6.86mm |
| Model | IHLP2525CZER100M01 |
| Depth | 6.47mm |
| Series | IHLP |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Metal Composite |
| Inductance | 10μH |
| Standards/Approvals | RoHS |
| Package/Case | 2225 |
| Maximum DC Current | 3A |
| Pin Count | 2 |
| Maximum DC Resistance | 1.7mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 5.0MHz |
| Inductor Construction | Wirewound |
Key Features
- Magnetically shielded design reduces EMI interference.
- Wirewound construction with metal composite core enhances reliability.
- Surface mount package size 2225 for easy PCB integration.
- Maximum DC resistance is low at 1.7 mΩ improving efficiency.
- Wide operating temperature range from -55°C to 125°C.
- Maximum self-resonant frequency of 5.0 MHz supports high frequency applications.
- Termination style is solder for secure mounting.
- RoHS compliant suitable for environmentally conscious designs.
Product Description
Vishay IHLP2525CZER100M01 is a high-quality shielded wirewound surface mount inductor featuring a robust metal composite core and a precise inductance of 10 µH with ±20% tolerance. Designed for modern electronic applications, this inductor supports a maximum DC current of 3 A, making it suitable for power management and filtering in consumer electronics, automotive electronics, and industrial devices.
The magnetically shielded ferrite core combined with enamel copper winding minimizes electromagnetic interference, ensuring improved circuit performance in sensitive environments. Its surface mount 2225 package enables compact PCB layouts where space is crucial.
Operating reliably between -55°C and 125°C, this inductor withstands harsh temperature conditions. The low DC resistance of 1.7 mΩ minimizes power losses, enhancing energy efficiency.
The inductor’s maximum self-resonant frequency of 5.0 MHz ensures stable operation in high-frequency DC-DC converters and filtering applications. The solder termination style guarantees dependable mechanical and electrical connections on the PCB.
Compliance with RoHS standards confirms the component's eco-friendly attributes. The compact dimensions with a height of 3 mm, length of 6.86 mm, and depth of 6.47 mm make it ideal for advanced electronic assembly and design innovation.
Magnetically shielded design reduces EMI interference. Wirewound construction with metal composite core enhances reliability. Surface mount package size 2225 for easy PCB integration. Maximum DC resistance is low at 1.7 mΩ improving efficiency.
Wide operating temperature range from -55°C to 125°C. Maximum self-resonant frequency of 5.0 MHz supports high frequency applications. Termination style is solder for secure mounting. RoHS compliant suitable for environmentally conscious designs.
Low profile height of 3 mm and compact overall dimensions.
This Vishay IHLP series inductor is ideal for industrial, automotive, telecommunications, consumer electronics, power supply, and aerospace applications. It enables effective filtering of supply voltages and supports DC-DC converters where stable, high current inductance is essential.
Explore more Inductors and electronic components on EnvMart for your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 10 µH with a tolerance of ±20%.
It can handle a maximum DC current of 3 A.
The maximum self-resonant frequency is 5.0 MHz, making it suitable for high-frequency applications.
The dimensions are 6.86 mm in length, 6.47 mm in depth, and 3 mm in height.
The termination style is solder, ensuring secure mounting on the PCB.
It operates reliably within a temperature range of -55°C to 125°C.
The maximum DC resistance is low at 1.7 mΩ, which improves efficiency.
Yes, this inductor is RoHS compliant, making it suitable for environmentally conscious designs.
It features a metal composite core, which enhances reliability and performance.
It is suitable for applications in consumer electronics, automotive electronics, industrial devices, and power management.
This inductor has a wirewound construction, which contributes to its performance characteristics.
It comes in a surface mount package size of 2225, facilitating easy PCB integration.
