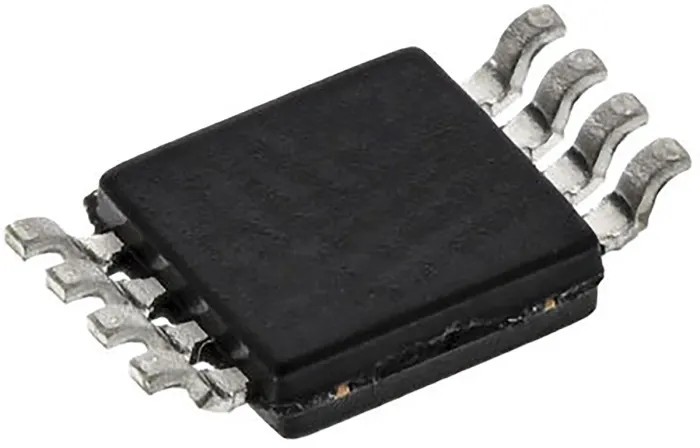

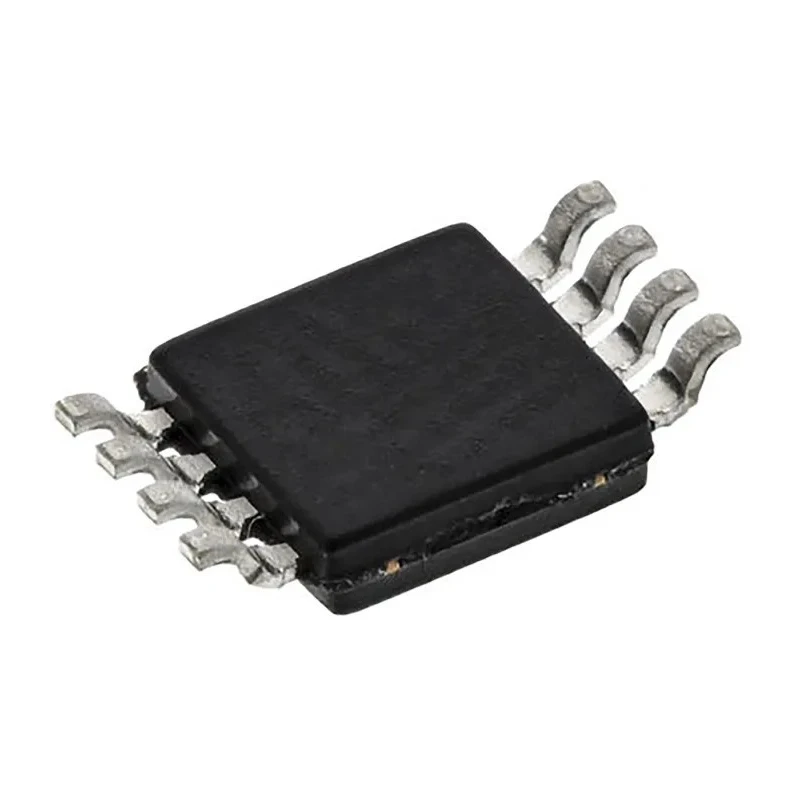

DiodesZetex Operational Amplifier 700 kHz 8-Pin 36V MSOP LM2904AM8-13
Specifications
| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Height | 0.95mm |
| Length | 3.1mm |
| Model | LM2904AM8-13 |
| Width | 3.1mm |
| Mount Type | Surface |
| Series | LM2902/LM2904 |
| Output Current | 50mA |
| Maximum Operating Temperature | 125°C |
| Package Type | MSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 36V |
| Minimum Supply Voltage | 3V |
| GBP - Gain Bandwidth Product | 700kHz |
| Input Bias Current | -500 nA |
| Vos - Input Offset Voltage | 4 mV |
| Slew Rate | 0.3V/μs |
| Input Offset Current | 150 nA |
Key Features
- Surface mount MSOP package suitable for compact PCB designs.
- Contains two independent amplifier channels in a single package.
- Operates over a wide temperature range from -40°C to 125°C.
- Low input bias current of -500 nA ensures precision amplification.
- Slew rate of 0.3 V/µs supports moderate speed signal processing.
- Input offset voltage typically at 4 mV for accurate signal integrity.
- Output current capability up to 50 mA for driving loads directly.
- Compliant with RoHS standards ensuring environmental safety.
Product Description
DiodesZetex LM2904AM8-13 is an operational amplifier designed for general-purpose amplification tasks demanding up to 36 V supply voltage and a gain bandwidth product of 700 kHz. Packaged in an 8-pin MSOP surface mount format, it supports compact and efficient PCB layouts suitable for industrial, automotive, and consumer electronic applications.
The dual-channel amplifier delivers reliable performance with low input bias current (-500 nA) and an input offset voltage of 4 mV, ensuring precise signal processing. Its slew rate of 0.3 V/µs aids in handling moderate-frequency signals without significant distortion.
Operating across an extended temperature range from -40°C to 125°C, it is qualified to meet automotive standards such as AEC-Q100 and complies with RoHS environmental directives, making it ideal for robust, eco-friendly electronics.
Measuring a mere 3.1 mm by 3.1 mm with a height of 0.95 mm, this package is optimized for space-constrained devices. The device can source or sink output currents up to 50 mA for direct load driving.
Surface mount package enhances assembly efficiency and footprint reduction. Dual operational amplifier channels in a single compact unit. Wide operating voltage range from 3 V minimum to 36 V maximum. Meets critical automotive industry reliability standards.
Suitable for industrial, automotive, laboratory, and consumer electronic circuits. Compliant with environmental safety regulations including RoHS. Compact dimensions allow use in small and densely packed circuit assemblies.
Stable operation over a broad temperature range ensures versatile applications. Moderate slew rate suitable for a variety of signal conditioning circuits. Ideal for improving production efficiency in electronic device manufacturing.
Explore a wide range of semiconductor and Operational Amplifier products at EnvMart for your electronic design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 700 kHz.
The maximum supply voltage for the LM2904AM8-13 is 36 V.
The input offset voltage is typically 4 mV, ensuring accurate signal integrity.
This operational amplifier can source or sink output currents up to 50 mA for driving loads directly.
It operates over a wide temperature range from -40°C to 125°C.
The LM2904AM8-13 is packaged in an 8-pin MSOP surface mount format.
The input bias current is -500 nA, which helps ensure precision amplification.
The slew rate of 0.3 V/µs supports moderate speed signal processing without significant distortion.
This operational amplifier is compliant with RoHS standards and meets automotive standards such as AEC-Q100.
The dimensions are 3.1 mm in length and width, with a height of 0.95 mm.
It contains two independent amplifier channels in a single package.
This operational amplifier is suitable for industrial, automotive, laboratory, and consumer electronic circuits.
