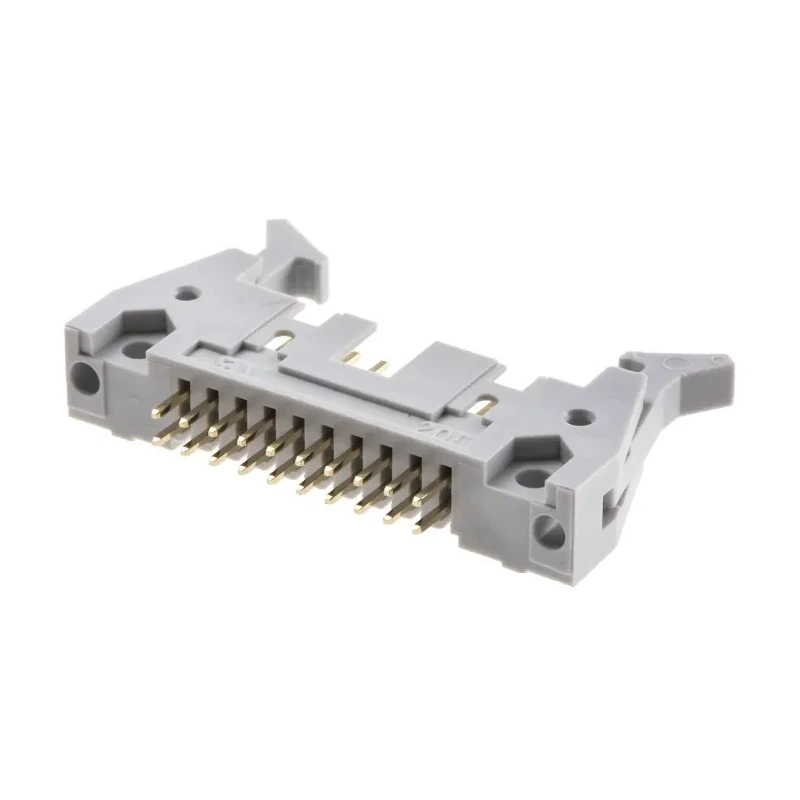

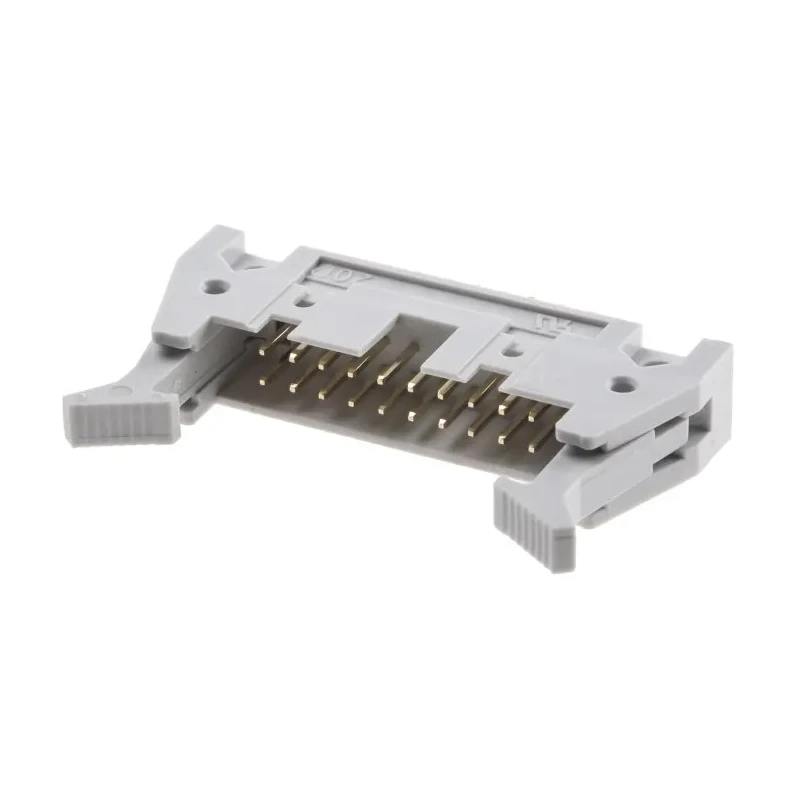

RS PRO Straight Through Hole PCB Header, 20 Contact(s), 2.54 mm Pitch, Shrouded 471-058
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Orientation | Straight |
| Current | 1A |
| Model | 471-058 |
| Mount Type | Through Hole |
| Housing Material | Polyethylene Terephthalate |
| Contact Material | Brass |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -45°C |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
Key Features
- This PCB header supports a maximum current of 1A per contact.
- It features a straight orientation with a through-hole mount type.
- The housing material is robust polyethylene terephthalate providing high durability.
- Gold plated brass contacts ensure reliable conductivity and corrosion resistance.
- Operating temperature ranges from -45°C to 105°C suitable for various industrial environments.
- The header is designed for solder termination with male contact gender.
- Fully shrouded with long ejection latches to secure connection and prevent misalignment.
- Compatible with connectors conforming to BS9525-F0023 standards, ideal for prototype development, medical equipment, consumer electronics, and industrial automation.
Product Description
RS PRO 471-058 Straight Through Hole PCB Header is a high-quality electronic component designed for reliable printed circuit board connectivity with 20 male contacts and a 2.54 mm pitch. The shrouded design ensures secure connections protected from accidental damage and misalignment while providing durability.
The housing is made from polyethylene terephthalate, a UV resistant and UL94V rated glass filled polyester material, capable of withstanding operating temperatures from -45°C up to 105°C. Contacts are precision crafted from brass and plated with gold flash to provide excellent conductivity and corrosion resistance, enhancing performance and lifespan.
This PCB header is intended for through-hole mounting with solder termination, suitable for industrial, laboratory, construction, and manufacturing applications requiring secure and robust electrical connections.
Designed for compatibility with BS9525-F0023 connectors, this header supports data and power transmission across various sectors including prototype development, medical instrumentation, consumer electronics, data storage devices, and industrial automation systems.
This PCB header supports a maximum current of 1A per contact. It features a straight orientation with a through-hole mount type. The housing material is robust polyethylene terephthalate providing high durability. Gold plated brass contacts ensure reliable conductivity and corrosion resistance.
Operating temperature ranges from -45°C to 105°C suitable for various industrial environments. The header is designed for solder termination with male contact gender. Fully shrouded with long ejection latches to secure connection and prevent misalignment.
Compatible with connectors conforming to BS9525-F0023 standards. Equip your electronic assemblies with this reliable RS PRO through-hole PCB Header for enhanced signal integrity and durability. Explore more PCB connectors and related components in the Electronics & Electricals category at EnvMart for comprehensive industrial-grade electronic solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header supports a maximum current of 1A per contact.
The contacts in this model have a pitch of 2.54 mm.
The operating temperature range for this PCB header is from -45°C to 105°C.
The housing is made from polyethylene terephthalate, and the contacts are crafted from brass with gold plating.
This PCB header features 20 male contacts.
This model is designed for solder termination.
Yes, it is compatible with connectors conforming to BS9525-F0023 standards.
This PCB header supports through-hole mounting.
The fully shrouded design with long ejection latches helps secure connections and prevent misalignment.
It is suitable for applications in prototype development, medical instrumentation, consumer electronics, and industrial automation.
This model features a straight orientation.
The country of origin for this PCB header is Taiwan.
