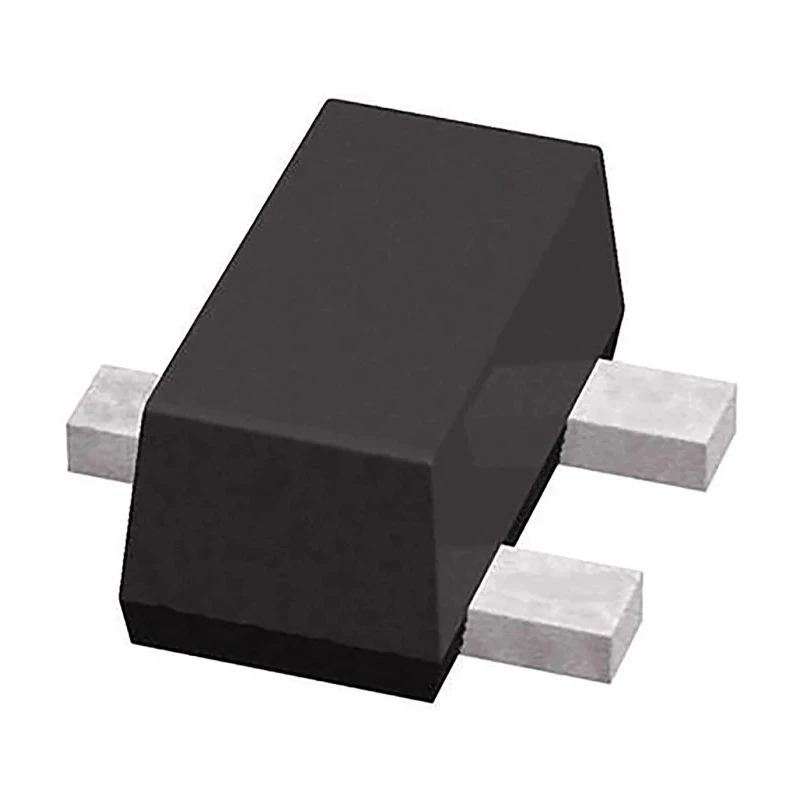

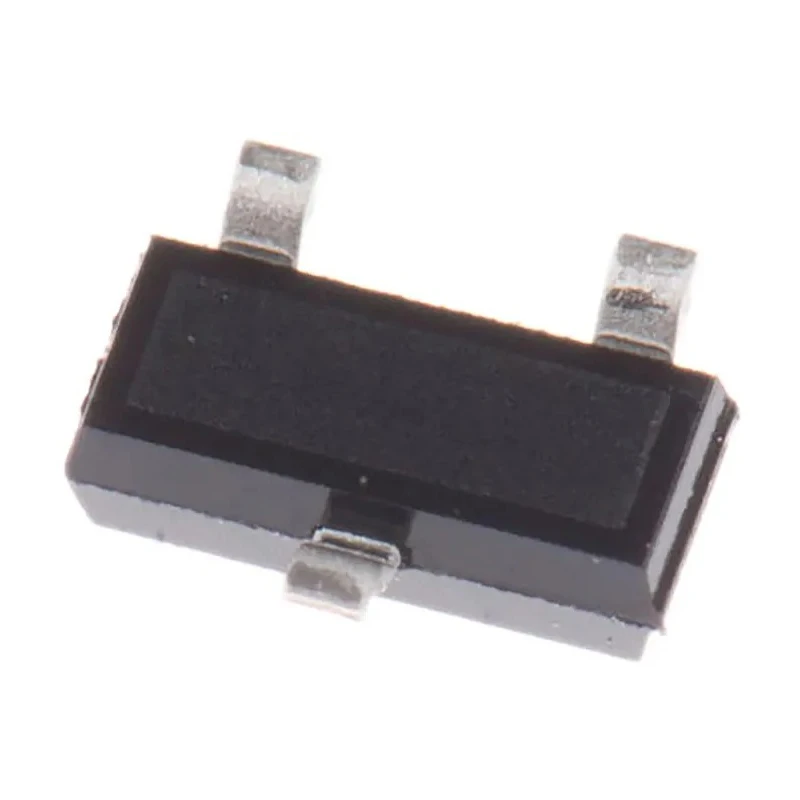

ROHM Digital PNP Surface Digital Transistor SOT-416FL, 3-Pin, -50 V, 150 mW DTA043EEBTL

Free Delivery in India | Lowest Global Shipping Charges

ROHM Digital PNP Surface Digital Transistor SOT-416FL, 3-Pin, -50 V, 150 mW DTA043EEBTL

Name: ROHM Digital PNP Surface Digital Transistor SOT-416FL, 3-Pin, -50 V, 150 mW DTA043EEBTL
Brand: ROHM
SKU: 143656
Price: 0.05 USD
Availability: InStock



Category Digital Transistor Brand ROHM Condition New

Specifications

Country of Origin	India
Brand	ROHM
Height	0.85mm
Length	1.7mm
Model	DTA043EEBTL
Width	0.96mm
Mount Type	Surface
Series	DTA043E
Maximum Operating Temperature	150°C
Package Type	SOT-416FL
Pin Count	3
Maximum Collector Emitter Voltage Vceo	-50V
Minimum DC Current Gain hFE	20
Transistor Polarity	PNP
Maximum Emitter Base Voltage VEBO	50V
Maximum Power Dissipation Pd	150mW
Transistor Configuration	Common Emitter

Key Features

The transistor has a maximum collector-emitter voltage rating of -50 V.
It features a maximum power dissipation of 150 mW for stable operation.
Designed for surface mounting with SOT-416FL package measuring 1.7 mm length, 0.96 mm width, and 0.85 mm height.
The transistor offers a minimum DC current gain (hFE) of 20 for reliable amplification.
It can operate at temperatures up to 150°C, making it suitable for various demanding environments.
With integrated bias resistors, it allows direct driving from digital logic circuits.
The product is designed for common emitter configuration applications in electronic circuits.
It does not comply with automotive standards and does not have any specific certifications.

Product Description

ROHM brand presents the DTA043EEBTL digital transistor, a PNP bipolar transistor tailored for digital switching applications with a compact surface mount design. The device features a SOT-416FL package, making it suitable for space-constrained circuit boards in electronics manufacturing and industrial automation.

This transistor supports a maximum collector-emitter voltage (Vceo) of -50 V and power dissipation of 150 mW, enabling it to handle moderate voltage and power levels efficiently. Its transistor configuration is common emitter, widely used in amplification and switching circuits.

The DTA043EEBTL incorporates integrated bias resistors, commonly referred to as Digital Transistors or resistor-equipped bipolar transistors, facilitating direct interface with microcontroller outputs and digital logic circuits without additional components. The minimum DC current gain (hFE) of 20 ensures adequate amplification in switching and signal processing roles.

The device dimensions are precise: length 1.7 mm, width 0.96 mm, and height 0.85 mm, making it appropriate for high-density circuit assembly. It withstands operating temperatures up to 150°C, suitable for industrial and commercial electronic equipment.

This transistor does not conform to automotive standards and is not certified under typical industrial approvals, focusing its usage primarily on general electronic and semiconductor applications rather than automotive-grade deployments.

PNP transistor with common emitter configuration. Surface mount SOT-416FL package suitable for compact circuit design. Maximum collector-emitter voltage of -50 V and power dissipation of 150 mW. Minimum DC current gain of 20 for reliable switching performance.

Operating temperature range up to 150°C. Integrated resistors allow direct drive from digital logic. Ideal for digital signal switching in electronic control systems. Compact dimensions for space-limited circuit environments.

The ROHM DTA043EEBTL is ideal for electronic circuit designers seeking a reliable digital PNP transistor with built-in resistors for simplified PCB layouts in industrial machines, automation devices, and consumer electronics.
