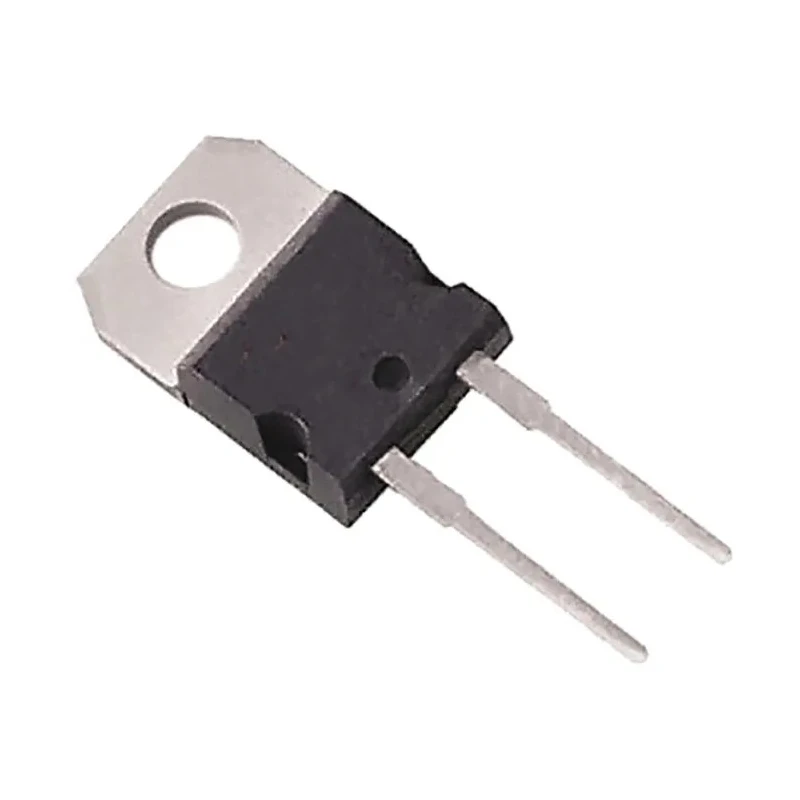

STMicroelectronics 650 V 12 A Schottky Diode Single 2-Pin Through Hole TO-220AC STPSC12065DY
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 15.75mm |
| Length | 10.4mm |
| Model | STPSC12065DY |
| Width | 4.6mm |
| Mount Type | Through Hole |
| Series | STPSC12065-Y |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-220AC |
| Minimum Operating Temperature | -40°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 12A |
| Peak Reverse Repetitive Voltage Vrrm | 650V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 1mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 220A |
| Maximum Forward Voltage Vf | 1.65V |
| ROHM 650V 12A, SiC Schottky Diode, 2-Pin TO-220AC SCS212AGCBrand | ROHM |
Key Features
- This diode features a maximum continuous forward current of 12 A.
- It supports a peak reverse repetitive voltage of 650 V for reliable operation.
- The maximum forward voltage is 1.65 V, ensuring low conduction losses.
- It has a peak non-repetitive forward surge current of 220 A for robust surge handling.
- The diode operates reliably within a temperature range from -40°C to 175°C.
- Its compact dimensions include a height of 15.75 mm, length of 10.4 mm, and width of 4.6 mm.
- The product complies with the automotive standard AEC-Q101 for automotive quality and reliability.
- Designed with Silicon Carbide (SiC) technology, it offers high efficiency and low EMC impact.
Product Description
STMicroelectronics STPSC12065DY is a high-performance Silicon Carbide (SiC) Schottky diode designed to provide efficient power rectification for industrial and automotive electronics. This single diode is configured with 2 pins in a durable TO-220AC package suitable for through hole mounting, combining reliability with ease of assembly.
Rated for a maximum continuous forward current of 12 A and a peak reverse repetitive voltage of 650 V, this diode supports robust electrical performance. It features a low maximum forward voltage of 1.65 V and a high surge current capacity of 220 A, making it well-suited for demanding power converter applications. The operational temperature range extends from -40°C to 175°C, ensuring stability and reliable functioning in harsh automotive and industrial environments.
The diode is compliant with the automotive standard AEC-Q101, indicating the high quality and durability required for automotive use.
Its compact physical dimensions, with a height of 15.75 mm, length of 10.4 mm, and width of 4.6 mm, complement its electrical performance, allowing integration in space-constrained designs. Applications include automotive electronics, industrial power supplies, and other demanding environments requiring high voltage and current Schottky diodes.
This diode has a maximum continuous forward current of 12 A to handle significant current loads effectively. It supports a peak reverse repetitive voltage of 650 V, ensuring resistance against high voltage spikes. The low forward voltage drop contributes to improved efficiency in power circuits.
The high surge current rating of 220 A increases reliability under transient conditions. Wide temperature operating range from -40°C to 175°C suits harsh environmental conditions. Compliance with AEC-Q101 automotive standard marks it fit for automotive applications.
Compact TO-220AC package ensures easy mounting and good thermal management. Silicon Carbide technology enhances switching performance and reduces losses. Designed for through hole mounting, facilitating repair and circuit assembly.
Ideal for automotive, industrial, and power conversion applications requiring robust and efficient diodes.
This product is an essential component for engineers designing power systems in automotive, industrial, and high-performance electronics sectors. Explore more quality semiconductor solutions and power components at EnvMart for your project requirements.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 12 A.
It supports a peak reverse repetitive voltage of 650 V, ensuring reliable operation under high voltage conditions.
The maximum forward voltage drop is 1.65 V, which helps to minimize conduction losses.
The diode has a peak non-repetitive forward surge current rating of 220 A, allowing it to handle robust surge conditions.
It operates reliably within a temperature range from -40°C to 175°C, making it suitable for harsh environments.
The diode has a height of 15.75 mm, a length of 10.4 mm, and a width of 4.6 mm.
This model is designed for through hole mounting, which facilitates easy assembly and repair.
Yes, it complies with the automotive standard AEC-Q101, indicating its suitability for automotive applications.
The diode is configured as a single diode with a 2-pin design.
It is designed with Silicon Carbide (SiC) technology, which enhances efficiency and reduces electromagnetic interference (EMI).
This diode is ideal for automotive electronics, industrial power supplies, and other applications requiring high voltage and current handling.
The peak reverse current is rated at 1 mA, indicating low leakage under reverse bias conditions.
