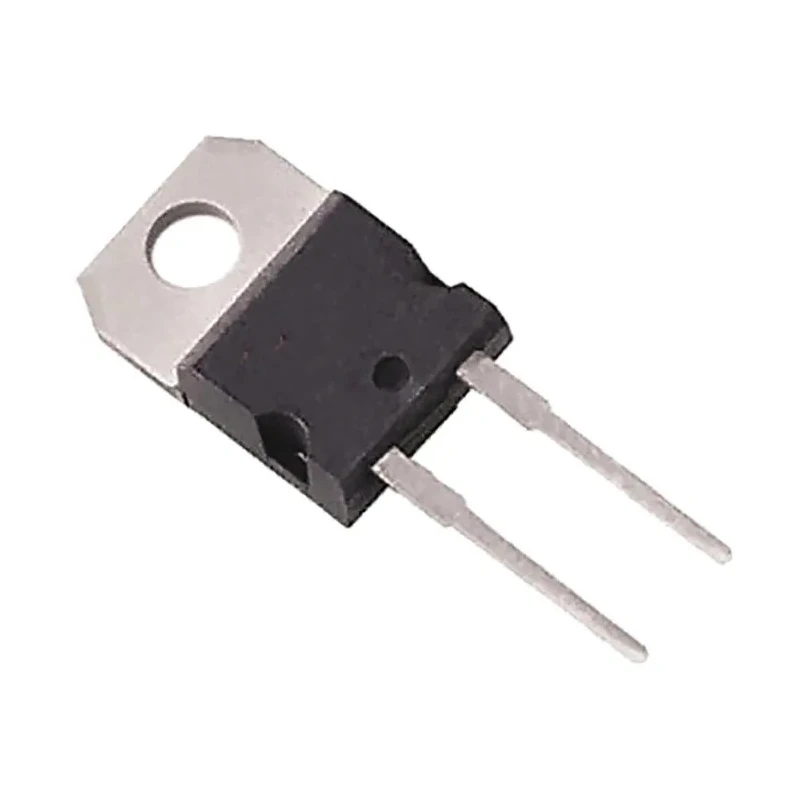

STMicroelectronics 650 V 20 A Schottky Diode, 2-Pin TO-220AC STPSC20065D
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 3.75mm |
| Brand | STMicroelectronics |
| Height | 15.75mm |
| Length | 10.4mm |
| Model | STPSC20065D |
| Width | 4.6mm |
| Mount Type | Through Hole |
| Series | STPSC20065 |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-220AC |
| Minimum Operating Temperature | -40°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 20A |
| Peak Reverse Repetitive Voltage Vrrm | 650V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 2mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 400A |
| Maximum Forward Voltage Vf | 1.65V |
Key Features
- The diode features a maximum continuous forward current of 20 A.
- Peak reverse repetitive voltage rating is 650 V ensuring robust operation under high voltage conditions.
- It includes a 2-pin configuration in TO-220AC package suitable for through-hole mounting.
- Maximum forward voltage drop is 1.65 V, contributing to low power loss.
- High surge current capability with a peak non-repetitive forward surge current of 400 A.
- Designed with Silicon Carbide technology for ultra-fast switching and negligible reverse recovery.
- Operates reliably at temperatures from -40°C up to 175°C.
- Non-automotive standard and no additional certifications.
Product Description
STMicroelectronics STPSC20065D is a 650 V, 20 A Silicon Carbide (SiC) Schottky diode housed in a 2-pin TO-220AC package designed for through-hole mounting. This ultra-high performance rectifier provides efficient power handling with negligible reverse recovery and fast switching capabilities, making it suitable for applications such as power factor correction, industrial power supplies, and automotive electronics.
The device supports a maximum continuous forward current of 20 A and a peak reverse voltage of 650 V, allowing it to operate reliably in demanding electrical environments. With a maximum forward voltage of 1.65 V and a surge capability of up to 400 A, it is designed for robust transient responses and high efficiency.
Constructed using Silicon Carbide technology, this Schottky diode exhibits minimal switching losses and thermal resistance, further enhancing device reliability and performance. The diode operates effectively in a wide temperature range from -40°C to 175°C, ensuring stability and durability in harsh operating conditions.
Its compact dimensions (Height: 15.75 mm, Width: 4.6 mm, Length: 10.4 mm, Diameter: 3.75 mm) make it compatible with space-sensitive designs. The diode does not adhere to specific automotive standards and lacks additional certifications, primarily focusing on industrial and commercial uses.
Key features include:. Maximum continuous forward current of 20 A. Peak reverse repetitive voltage of 650 V. 2-pin TO-220AC package with through-hole mount. Low forward voltage drop of 1.65 V for increased efficiency. High surge current tolerance of 400 A.
Wide operating temperature range from -40°C to 175°C. Compact physical dimensions suitable for various assemblies. Ideal for industrial power electronics and semiconductor applications.
This STMicroelectronics Schottky diode is an essential component for power management in industrial machines, laboratory equipment, HVAC systems, and manufacturing processes, where high switching speed and efficiency are critical. Explore EnvMart's extensive portfolio of Schottky diodes and rectifiers for comprehensive power solutions.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 20 A.
It has a peak reverse repetitive voltage rating of 650 V.
This diode is housed in a 2-pin TO-220AC package suitable for through-hole mounting.
The maximum forward voltage drop is 1.65 V, which contributes to low power loss.
It can handle a peak non-repetitive forward surge current of up to 400 A.
The diode operates reliably in a temperature range from -40°C to 175°C.
The dimensions are as follows: Height 15.75 mm, Width 4.6 mm, Length 10.4 mm, and Diameter 3.75 mm.
This model is a Schottky rectifier, designed for efficient power handling.
It is suitable for applications such as power factor correction, industrial power supplies, and automotive electronics.
This model does not adhere to specific automotive standards and lacks additional certifications.
The peak reverse current is rated at 2 mA.
It is constructed using Silicon Carbide technology, which allows for ultra-fast switching and negligible reverse recovery.
