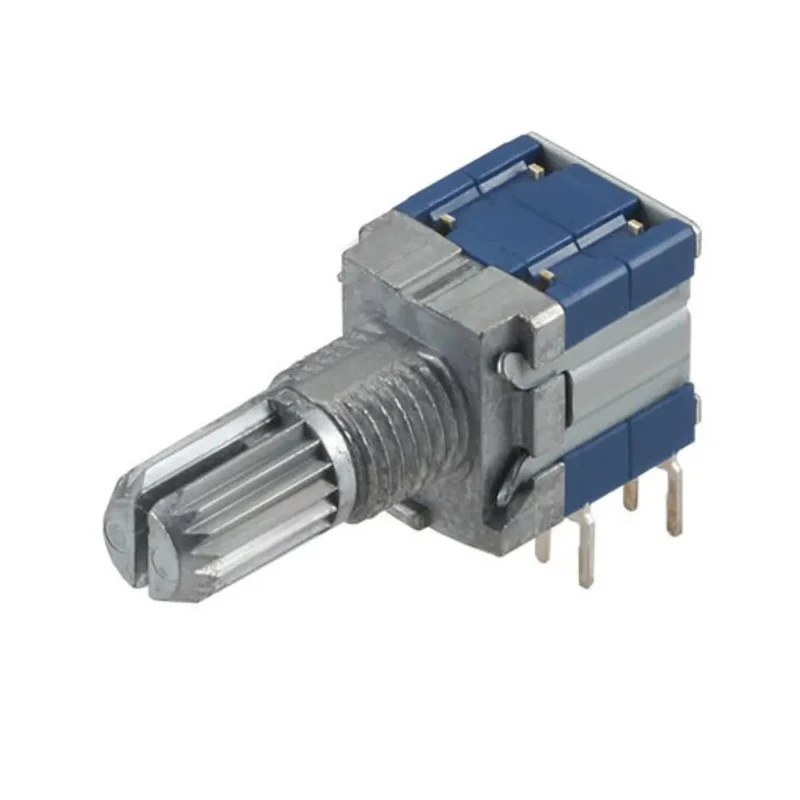

Alps Alpine SRBM 3 Position DP3T Rotary Switch, 100mA, PCB Mount, Grey Actuator, 30° Throw DP3T

Free Delivery in India | Lowest Global Shipping Charges

Alps Alpine SRBM 3 Position DP3T Rotary Switch, 100mA, PCB Mount, Grey Actuator, 30° Throw DP3T

Name: Alps Alpine SRBM 3 Position DP3T Rotary Switch, 100mA, PCB Mount, Grey Actuator, 30° Throw DP3T
Brand: Alps Alpine
SKU: 141714
Price: 8.95 USD
Availability: InStock



Category Rotary Switch Brand Alps Alpine Condition New

Specifications

Country of Origin	Japan
Diameter	6mm
Brand	Alps Alpine
Height	10mm
Model	DP3T
Depth	11mm
Width	11mm
Mount Type	PCB
Series	SRBM
Maximum Operating Temperature	85°C
Contact Configuration	DP3T
Number of Positions	3
Switch Configuration	Pulse
Minimum Operating Temperature	-30°C
Terminal type	Terminal
Maximum dc Voltage	16V dc
Number of Poles	2
Standards/Approvals	RoHS
Switch Operation	6-Position Horizontal Type
Actuator Colour	Grey
Switch Contact Current	100mA
Mechanical Life	10000Cycles
Maximum AC Voltage	100V ac
Angle of Throw	30 °

Key Features

This rotary switch features a 3-position configuration for versatile multi-circuit switching.
It utilizes a double-pole triple-throw (DP3T) contact setup suitable for complex switching requirements.
The switch operates efficiently at a maximum AC voltage of 100V and DC voltage of 16V.
Designed for PCB mounting, it ensures easy integration into electronic assemblies.
It has a mechanical life cycle of 10,000 operations for extended reliability.
The non-illuminated actuator is grey in color and measures 15mm to 20mm in length as per notes.
Operating temperature ranges from -30°C to 85°C, suitable for various industrial environments.
Compact dimensions with 11mm width, depth, and 10mm height enable installation in tight spaces.

Product Description

Alps Alpine DP3T Rotary Switch 3 Position SRBM model is a high-quality electrical switching component capable of handling 100mA switch contact current. This rotary switch is designed with a double-pole triple-throw (DP3T) contact configuration and features a 6-position horizontal type switch operation allowing precise control in complex circuits. The grey actuator offers a 30-degree angle of throw and is non-illuminated, suited for diverse applications in electronics and industrial automation systems.

The switch's compact size of 11mm width, 11mm depth, and 10mm height allows it to be easily mounted on PCB, making it ideal for integration in electronic assemblies, control panels, and instrumentation devices. It supports a maximum AC voltage of 100V and a maximum DC voltage of 16V, providing reliable performance under typical electrical load conditions.

With a mechanical life of 10,000 cycles and operating temperature range from -30°C to 85°C, this rotary switch is robust enough for use in demanding industrial environments. Its terminal type connections and 6mm diameter ensure secure wiring. The product complies with RoHS directives, underscoring its environmentally conscious design.

This rotary switch has a 3-position, 2-pole, double-pole triple-throw configuration suited for advanced switching needs. It operates on a 6-position horizontal switch operation allowing smooth user interaction. Max AC voltage rating of 100V and DC voltage rating of 16V ensure broad compatibility.

Compact dimensions facilitate PCB mount installations in electronic devices. Mechanical life assures durability over 10,000 operation cycles. Operating temperature range supports diverse industrial applications. Non-illuminated grey actuator with 30° angle of throw offers precise control.

Complies with RoHS standards for safe and eco-friendly use.

This Alps Alpine SRBM rotary switch is designed for industrial, electrical, and automation applications, including control panels, instrumentation, and embedded electronics requiring reliable multi-position switching with low current ratings. It is a premium choice for engineers and manufacturers seeking a dependable rotary switch from a reputable brand.

Explore a wide range of Rotary Switches and related components on EnvMart to find suitable switches fit for your applications.
