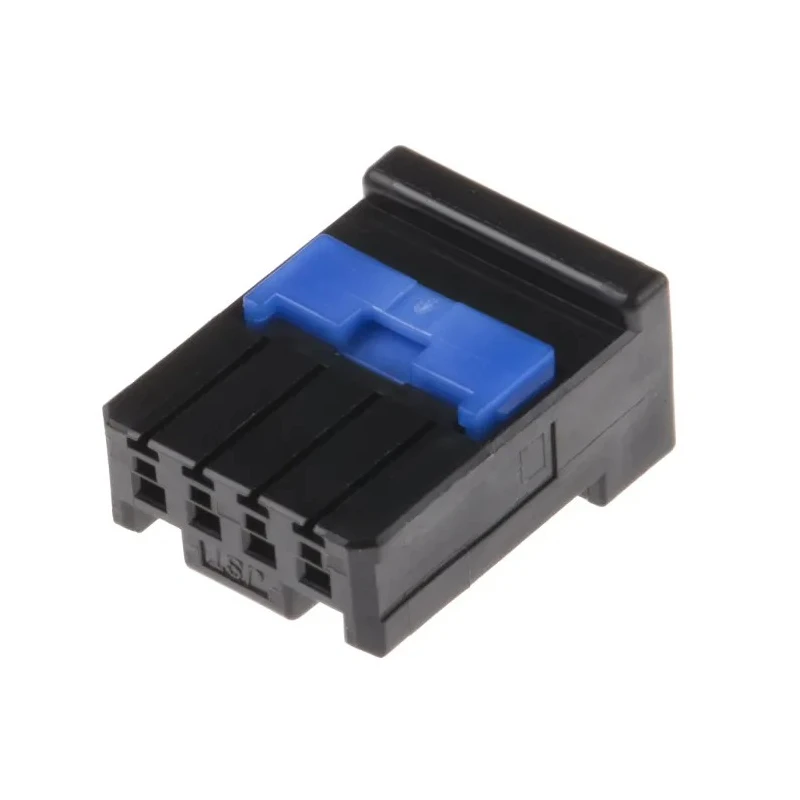

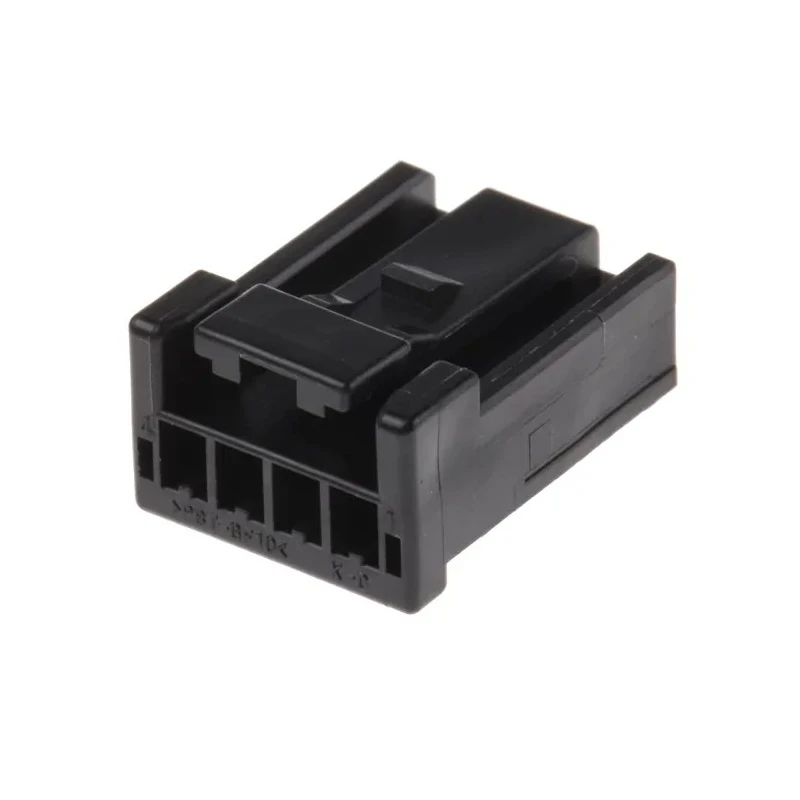

JST CPT Automotive Connector Female Black Surface 4 Way Crimp Termination 04CPT-B1-2A
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | JST |
| Colour | Black |
| Current | 3A |
| Height | 6.6mm |
| Model | 04CPT-B1-2A |
| Depth | 13.5mm |
| Width | 10mm |
| Gender | Female |
| Mount Type | Surface |
| Housing Material | Fibreglass Reinforced Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | CPT |
| Termination Type | Crimp |
| Maximum Operating Temperature | 100°C |
| Sub Type | CPT Connector |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Standards/Approvals | RoHS |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 4 |
Key Features
- Features a compact design with 4 contacts and a 2.0 mm pitch spacing.
- Suitable for crimp termination using compact female terminals with a cable size range of 0.3 mm² to 1.4 mm².
- Operating temperature range from -40°C to 100°C ensures durability in harsh automotive environments.
- Constructed with fibreglass reinforced polybutylene terephthalate housing for ruggedness and reliability.
- Brass contacts plated with gold over nickel for excellent conductivity and corrosion resistance.
- Surface mount type with single row, providing compact installation on PCB and automotive wiring harnesses.
- Complies with RoHS standards promoting environmental safety and quality compliance.
- Designed and manufactured in Japan, assuring high-quality standards.
Product Description
JST 04CPT-B1-2A CPT Automotive Connector Female Black Surface 4 Way Crimp Termination is engineered for miniaturized, low profile wire-to-board PCB automotive electrical connections. The 2.0 mm pitch female housings from the CPT series provide rugged and compact design ideal for space-critical applications in automotive electrical equipment.
The connector accepts crimp terminals designed for cable acceptance between 0.3 mm² and 1.4 mm², featuring a single row of 4 contacts rated for a maximum current of 3A. The housing material is fibreglass reinforced polybutylene terephthalate, ensuring robustness and high-quality insulation properties under wide operating temperatures ranging from -40°C to 100°C.
The brass contacts are gold plated over nickel to deliver reliable conductivity and resistance against corrosion, suitable for demanding automotive environments. Its surface mount configuration allows easy PCB mounting, enhancing assembly efficiency. This connector series complies with RoHS standards, reflecting environmental and safety compliance.
Applications include automotive wiring harnesses, electronic control units, and other automotive electrical systems where dependable compact connectors are essential. The product is made in Japan, assuring exceptional manufacturing quality and performance reliability.
Compact 4-way female connector with 2.0 mm pitch spacing suitable for automotive applications. Durable fibreglass reinforced polybutylene terephthalate housing resists demanding conditions. Gold plated brass contacts for high conductivity and corrosion resistance.
Wide temperature range from -40°C to +100°C ensures operational stability. Designed for crimp termination with cable acceptance of 0.3 mm² to 1.4 mm². Single row surface mount configuration enables compact PCB assembly. RoHS compliant to meet environmental and safety standards.
Manufactured in Japan, ensuring premium quality and reliability. Explore the Automotive Connector category on EnvMart for high-quality, reliable electrical connectors suited for automotive and industrial electronic systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum current of 3A.
It operates within a temperature range of -40°C to 100°C, making it suitable for harsh automotive environments.
The housing is made of fibreglass reinforced polybutylene terephthalate, and the contacts are brass plated with gold over nickel for conductivity and corrosion resistance.
The connector features a pitch spacing of 2.0 mm.
This model has 4 contacts arranged in a single row configuration.
It uses crimp termination designed for compact female terminals.
Yes, it complies with RoHS standards, promoting environmental safety and quality compliance.
The dimensions are 10 mm in width, 13.5 mm in depth, and 6.6 mm in height.
It is suitable for automotive wiring harnesses, electronic control units, and other automotive electrical systems.
This connector is a female type.
It is manufactured in Japan, ensuring high-quality standards.
It supports surface mount configuration, allowing for compact installation on PCBs.
