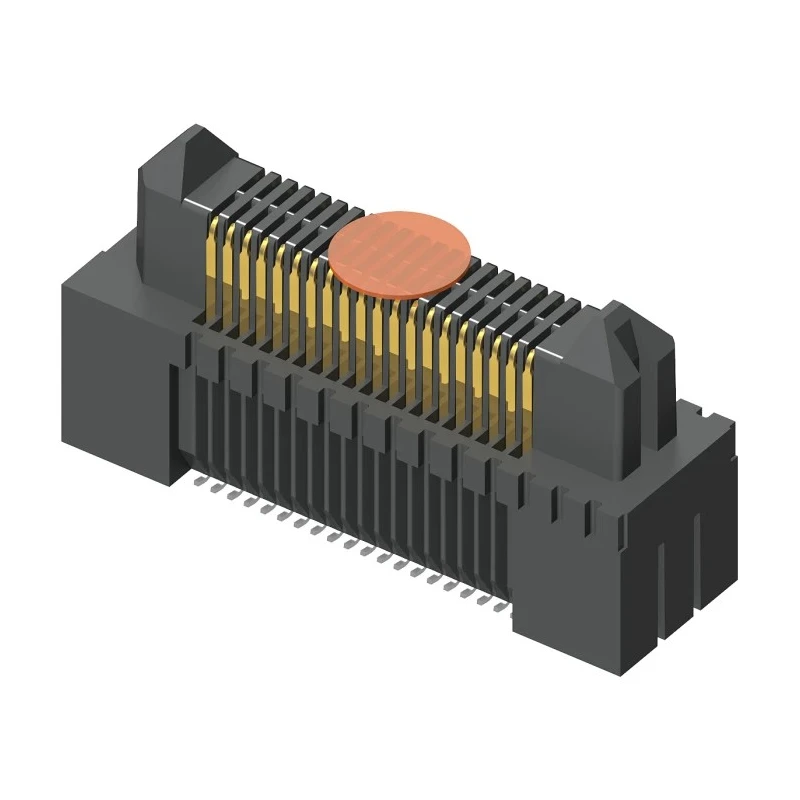

Samtec ERM5 Series Straight Surface PCB Header 80 Contacts 0.5 mm Pitch 2 Row Shrouded
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 194V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 1.5A |
| Model | ERM5 |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | ERM5 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.5mm |
| Contact Plating | Gold |
| Number of Contacts | 80 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- This PCB header features 2 rows of contacts for enhanced connectivity.
- Constructed with liquid crystal polymer housing for durability and high performance.
- Phosphor bronze contacts are plated with gold to ensure reliable electrical contact.
- Supports a current rating of 1.5A and a voltage rating of 194V.
- Operating temperature range spans from -55°C up to 125°C, suitable for demanding environments.
- Its Edge Rate contacts reduce insertion forces and crosstalk, enhancing signal integrity.
- Designed for surface mount technology with solder termination.
- Ideal for industrial, electronic manufacturing, and high-speed data transmission uses.
Product Description
Samtec ERM5 ERM5-040-05.0-L-DV-K-TR is a high-speed straight surface PCB header connector designed for board-to-board applications featuring a pitch of 0.5 mm and 80 male contacts arranged in 2 rows.
The connector uses liquid crystal polymer housing providing strong insulation and mechanical stability, while phosphor bronze contacts plated with gold offer excellent conductivity and corrosion resistance.
It supports electrical specifications including a current rating of 1.5A and voltage rating up to 194V. Operating temperature ranges from -55°C to 125°C, making it suitable for industrial and electronics manufacturing environments.
The shrouded design safeguards the contacts and ensures reliable mating with complementary connectors. The Edge Rate contact technology reduces broadside coupling and crosstalk, thus maintaining high signal integrity critical for data transmission speeds up to 28 Gbit/s.
This surface mount technology (SMT) header is terminated by soldering and designed for high cycle applications where durability and reliable electrical performance are essential. This PCB header features 2 rows of contacts for enhanced connectivity.
Constructed with liquid crystal polymer housing for durability and high performance. Phosphor bronze contacts are plated with gold to ensure reliable electrical contact. Supports a current rating of 1.5A and a voltage rating of 194V.
Operating temperature range spans from -55°C up to 125°C, suitable for demanding environments. Its Edge Rate contacts reduce insertion forces and crosstalk, enhancing signal integrity. Designed for surface mount technology with solder termination.
Ideal for industrial, electronic manufacturing, and high-speed data transmission uses. This product is widely used in electronics manufacturing, telecommunications, and industrial embedded system assemblies requiring precise and reliable board-to-board connections.
Discover an extensive range of PCB Headers and connectors at EnvMart to find compatible parts for your application.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 1.5A and a voltage rating of 194V.
The operating temperature range spans from -55°C to 125°C, making it suitable for demanding environments.
This model features 80 male contacts arranged in 2 rows.
It is constructed with a liquid crystal polymer housing and phosphor bronze contacts plated with gold.
This PCB header uses solder termination, designed for surface mount technology.
The pitch of the contacts is 0.5 mm.
It employs Edge Rate contact technology to reduce insertion forces and crosstalk, enhancing signal integrity.
The orientation of this model is straight.
It is ideal for industrial, electronic manufacturing, and high-speed data transmission applications.
This PCB header is designed for board-to-board connections.
The country of origin for this model is India.
The shrouded design safeguards the contacts and ensures reliable mating with complementary connectors.
