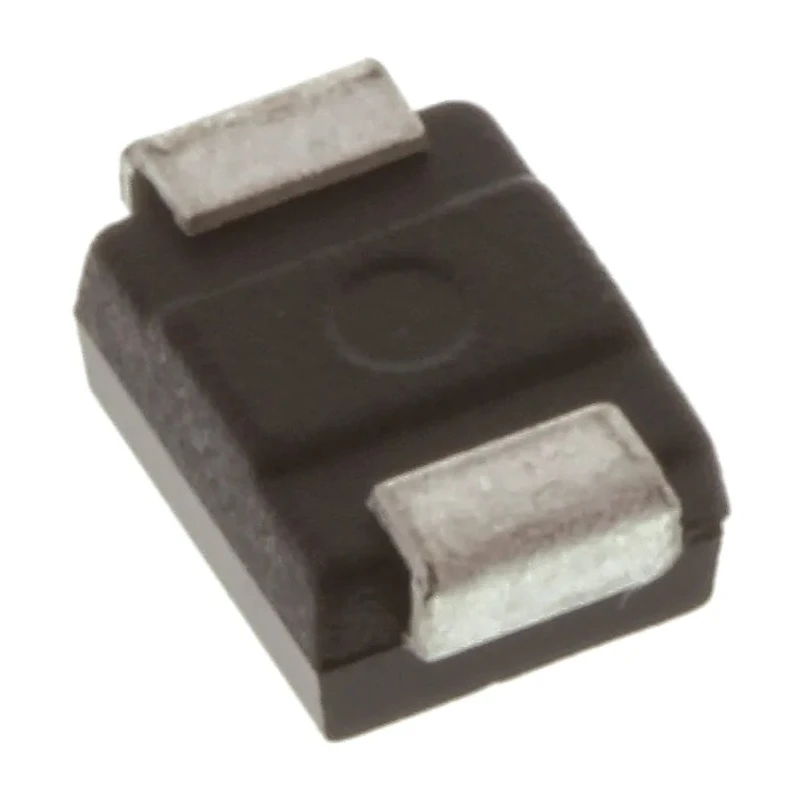

Vishay TRANSZORB Uni-Directional TVS Diode 600 W, 2-Pin DO-214 SMBJ5.0A-E3/52
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 2.24mm |
| Length | 4.57mm |
| Model | SMBJ5.0A-E3/52 |
| Width | 3.94mm |
| Mount Type | Surface |
| Series | TRANSZORB TVS |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 9.2V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 6.4V |
| Maximum Reverse Stand-off Voltage Vwm | 5V |
| Peak Pulse Power Dissipation Pppm | 600W |
| Test Current It | 10mA |
| Maximum Peak Pulse Current Ippm | 65.2A |
| Maximum Reverse Leakage Current | 800μA |
| Vishay SMBJ5.0A, Uni-Directional TVS Diode, 600W, 2-Pin SMBBrand | Vishay |
| Littelfuse 1SMB5.0AT3G, Uni-Directional TVS Diode, 600W, 2-Pin DO-214AABrand | Littelfuse |
| Unidirectional 600W TVS diode,SMBJ5.0ABrand | Vishay |
Key Features
- Constructed with a low profile DO-214 package suitable for surface mount applications.
- Features a single element diode configuration with uni-directional polarity.
- Rated for a minimum breakdown voltage of 6.4 V and maximum operating temperature of 150°C.
- Provides ESD protection ensuring device safety under transient voltage events.
- Clamping voltage rated at 9.2 V with a maximum peak pulse current of 65.2 A.
- Automotive grade compliant with AEC-Q101 standard for reliable industrial use.
- Designed for protecting sensitive electronics from transient voltage spikes in consumer, industrial, and telecommunication equipment.
Product Description
Vishay SMBJ5.0A-E3/52 Uni-Directional TVS Diode delivers efficient transient voltage suppression with a 600 W peak pulse power dissipation capability in a compact DO-214 surface mount package. This diode features a single element configuration and uni-directional operation, making it ideal for protecting sensitive electronic circuits from voltage transients generated by inductive load switching, lightning, and other disturbances.
The device supports a minimum breakdown voltage of 6.4 V and a maximum operating temperature of 150°C, ensuring performance stability under demanding conditions. With dimensions of 4.57 mm length, 3.94 mm width, and 2.24 mm height, the diode is designed for space-constrained PCB layouts.
The clamping voltage of 9.2 V combined with a peak pulse current of 65.2 A offers excellent surge absorption capability and fast response times. The diode also meets the stringent automotive standard AEC-Q101, qualifying it for use in automotive and industrial applications requiring high reliability.
This uni-directional TVS diode protects integrated circuits, MOSFETs, sensor lines, and signal circuits from transient voltage damage commonly found in consumer, industrial, and telecommunication devices. Its glass-passivated chip junction and low incremental surge resistance contribute to dependable operation and extended device life.
Low profile DO-214 package for surface mount technology. Uni-directional diode configuration for precise transient voltage suppression. 600 W peak pulse power dissipation with 10/1000 μs waveform. Reliable ESD protection and automotive qualified (AEC-Q101).
Fast response time with excellent clamping capability. Wide operating temperature range from -55°C to 150°C. Compact size enabling integration in dense PCB environments. Ideal for consumer electronics, industrial equipment, and telecommunication applications.
Explore more Vishay semiconductor components and high-quality TVS Diodes for your electronics protection needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Vishay SMBJ5.0A-E3/52 has a peak pulse power dissipation capability of 600 W.
It features a minimum breakdown voltage of 6.4 V.
The maximum operating temperature is rated at 150°C.
This model has dimensions of 4.57 mm in length, 3.94 mm in width, and 2.24 mm in height.
The clamping voltage is rated at 9.2 V.
It can handle a maximum peak pulse current of 65.2 A.
This unit features a single element configuration with uni-directional polarity.
It is designed for protecting sensitive electronics from transient voltage spikes in consumer, industrial, and telecommunication equipment.
It is compliant with the AEC-Q101 automotive standard.
The minimum operating temperature is -55°C.
The maximum reverse stand-off voltage is 5 V.
The maximum reverse leakage current is 800 μA.
