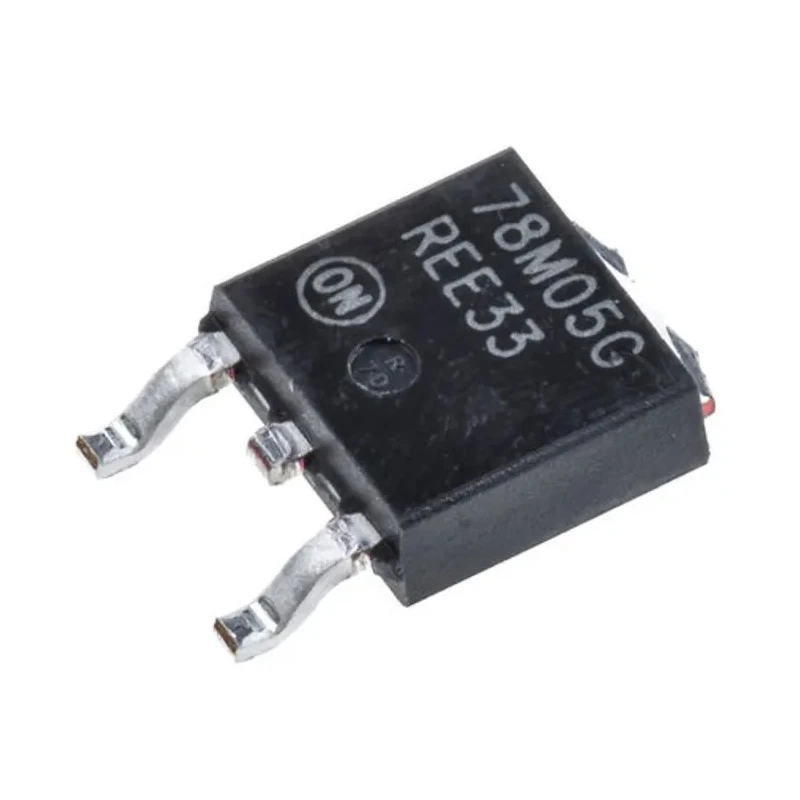

onsemi 5-Channel Linear Voltage Regulator 5V 500mA Surface Mount TO-252 MC78M05CDTG
Specifications
| Country of Origin | Malaysia |
|---|---|
| Voltage | Regulators onsemi MC78M05CDTG, 5-Channel Linear, Voltage Regulator, 500 mA, 5V |
| Brand | onsemi |
| Height | 2.38mm |
| Length | 6.73mm |
| Model | MC78M05CDTG |
| Width | 6.22mm |
| Mount Type | Surface |
| Output type | Fixed |
| Series | MC78Mxx |
| Output Current | 500mA |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-252 |
| Load Regulation | 400 mV |
| Polarity | Positive |
| Regulator Type | Linear |
| Number of outputs | 5 |
| Maximum Input Voltage | 35V dc |
| Output Voltage | 5V |
| Quiescent Current | 800μA |
| Line Regulation | 50 mV |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 7V |
| Pin Count | 2 |
| Automotive Standard | AEC-Q100 |
Key Features
- Linear regulator type ensures stable voltage output.
- Features five outputs suitable for multi-channel power regulation.
- Surface mount TO-252 package provides compact installation.
- Includes internal current limiting and thermal shutdown protection.
- Maximum operating temperature of 150°C for reliable performance.
- Meets RoHS compliance for environmental safety.
- Supports automotive standard AEC-Q100.
- Positive polarity and fixed output voltage type.
Product Description
onsemi MC78M05CDTG is a 5-channel linear voltage regulator designed for stable 5V output voltage with an output current capability of 500mA. Encapsulated in a compact TO-252 2-pin surface mount package, it integrates internal current limiting, thermal shutdown, and safe operating area protection, making it robust for various industrial and automotive applications.
The device supports a maximum input voltage of 35V dc and operates within a maximum temperature of 150°C, ensuring high reliability and performance under demanding conditions. It complies with RoHS environmental standards and meets automotive standard AEC-Q100, suitable for automotive electronics.
This voltage regulator is ideal for local on-card voltage regulation, power management in electronic design, and embedded systems that require multiple regulated outputs with positive polarity and fixed output voltage.
Linear regulator provides smooth, stable voltage output. Five output channels allow multi-line regulation. Compact TO-252 surface mount package for efficient space usage. Built-in protection including current limiting and thermal shutdown prevents device damage.
Robust operation up to 150°C and input voltage range from 7V to 35V dc. Low quiescent current of 800μA reduces energy consumption. Compliant with RoHS and automotive AEC-Q100 standards. Positive polarity and fixed 5V output for consistent application.
Dimensions 6.73mm (L) x 6.22mm (W) x 2.38mm (H) facilitate integration in compact circuits. Manufactured in Malaysia ensuring quality and reliability.
This product is widely used in industrial electronics, automotive power management, embedded systems, and any application requiring efficient and reliable voltage regulation with multiple outputs. It offers designers a dependable solution while reducing the overall component count and PCB space.
Explore further Voltage Regulators on EnvMart for diverse power management needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a fixed output voltage of 5V.
It has an output current capability of 500mA.
The maximum input voltage is 35V dc.
It is encapsulated in a TO-252 surface mount package.
The dimensions are 6.73mm in length, 6.22mm in width, and 2.38mm in height.
The quiescent current is 800μA.
It complies with the automotive standard AEC-Q100.
The maximum operating temperature is 150°C.
It is a linear voltage regulator that ensures stable voltage output.
This model features five output channels for multi-channel power regulation.
The load regulation is 400 mV and the line regulation is 50 mV.
Yes, it meets RoHS compliance for environmental safety.
