Samtec ERM8 Series Vertical Surface PCB Header, 100 Contacts, 0.8 mm Pitch, 2 Row, Shrouded ERM8

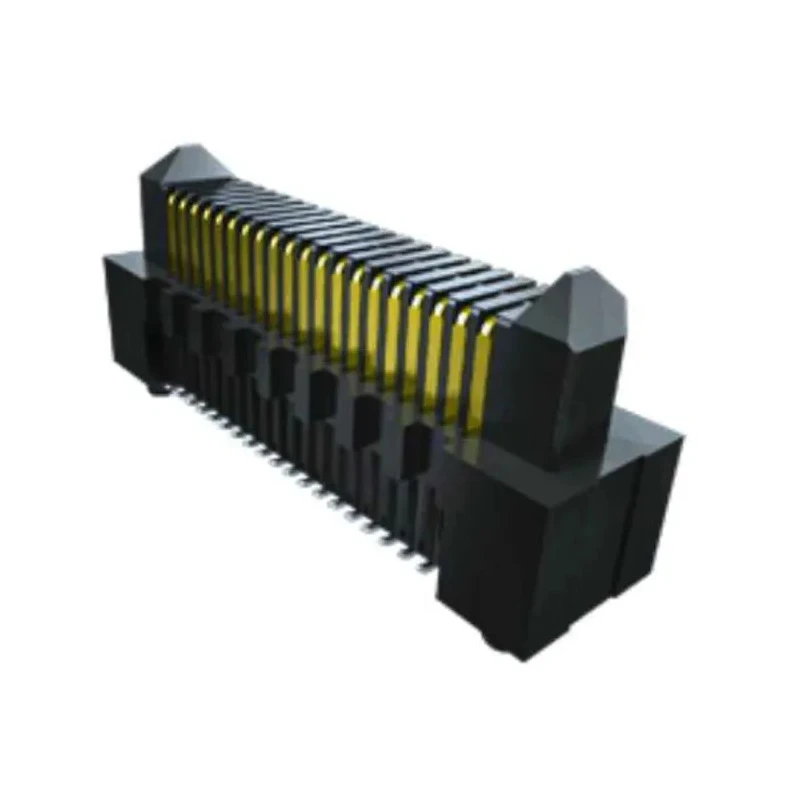

Samtec ERM8 vertical surface PCB header, model ERM8, is designed for high-speed electronic systems requiring dependable board-to-board connections with 100 contacts arranged in two rows at a 0.8 mm pitch. This shrouded male header provides a robust and compact interface with excellent durability and contact reliability.

The housing material is liquid crystal polymer, which offers exceptional resistance to heat and mechanical stress, making it ideal for harsh industrial and electronic environments. The contacts are made from phosphor bronze and plated with 0.25 μm gold plating to reduce wear and maintain low contact resistance over extended mating cycles.

Operating over a temperature range from -55°C to +125°C, the ERM8 header supports demanding industrial, telecommunications, computing, and data communication applications. The Edge rate contact system incorporated into this header accommodates high-speed signals up to 56 Gbps PAM4 modulation, ensuring signal integrity in modern high-performance board designs.

The shrouded design enhances protection of the contacts and helps ensure proper alignment during mating, leading to more reliable connections and reduced risk of damage. The connector's vertical orientation and surface mount configuration make it suitable for compact PCB layouts and automated assembly processes. Voltage rating of 318 V and current handling capacity of 1.4 A meet industry performance standards for power and signal delivery.

The header is suitable for use in industrial automation, computing & servers, telecommunications infrastructure, and other electronics manufacturing sectors. Its compact 0.8 mm pitch and high contact count maximize the connection density while preserving signal performance.

Robust gold-plated contacts and liquid crystal polymer housing ensure long service life and stable electrical performance under repeated mating cycles.

This product is new, sourced from Samtec, and packaged on reels for efficient deployment in large-volume manufacturing. Choose Samtec ERM8 series for reliable vertical surface PCB header applications requiring high signal speed and durability. Browse additional PCB Header options and technical documentation for design integration on EnvMart.
