Samtec Right Angle Surface PCB Header 40 Contacts 0.5 mm Pitch 2 Row Shrouded LSHM-120-01-L-DH-A-N-K-TR

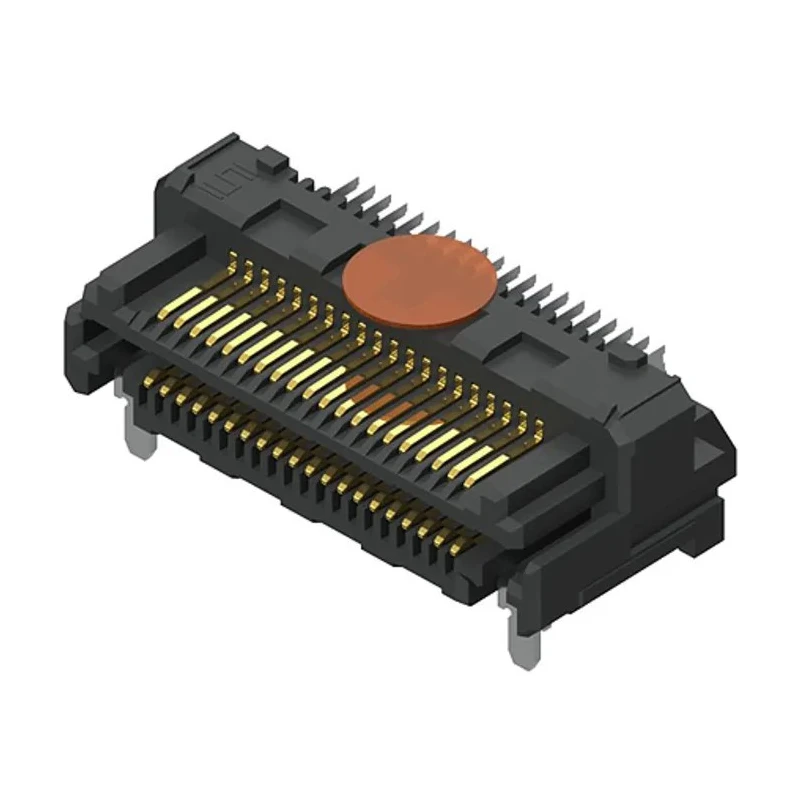

Samtec LSHM-120-01-L-DH-A-N-K-TR is a right angle surface mount PCB Header connector designed for high-speed, high-density electronic applications. It features 40 contacts arranged in 2 rows with a fine 0.5 mm pitch, perfectly suited for compact board-to-board interconnections.

Constructed with a durable liquid crystal polymer housing, this shrouded connector ensures robust mechanical protection and excellent thermal stability across a wide temperature range from -55°C to 125°C. The contacts use phosphor bronze material plated with gold to deliver reliable electrical performance and corrosion resistance, supporting current up to 1.9 A and voltages up to 226 V AC.

The right angle orientation aids in efficient PCB design layouts, while the hermaphroditic design of the LSHM series connectors reduces inventory costs by allowing self-mating configurations. These connectors provide high retention with razor beam contacts that produce audible clicks to confirm secure connections.

This connector is ideal for industrial, electronic manufacturing, telecommunications, and high-speed data transfer applications where space optimization and performance reliability are critical. The surface mount termination type offers secure and easy soldering to printed circuit boards.

The connector features a slim, rugged design ideal for compact PCBs. Contacts are made of phosphor bronze with gold plating for reliable conductivity. Supports current rating of 1.9 A and voltage up to 226 V AC. Constructed with liquid crystal polymer housing for durability and temperature resistance.

Capable of operating between -55°C and 125°C ensuring performance in harsh environments. Right angle orientation simplifies board layout and mating considerations. Hermaphroditic design reduces inventory and enhances mating flexibility.

Surface mount termination type ensures reliable soldering to PCB. Ideal for high-speed data transmission and compact electronic assemblies. Shrouded design protects contacts from damage and improves connection security.

Samtec’s LSHM series connectors are suitable for a range of electronics applications including industrial control systems, telecommunications equipment, and high-performance computing devices. Their design enables flexible stacking heights and compatibility with related HLCD high-speed cable assemblies.
