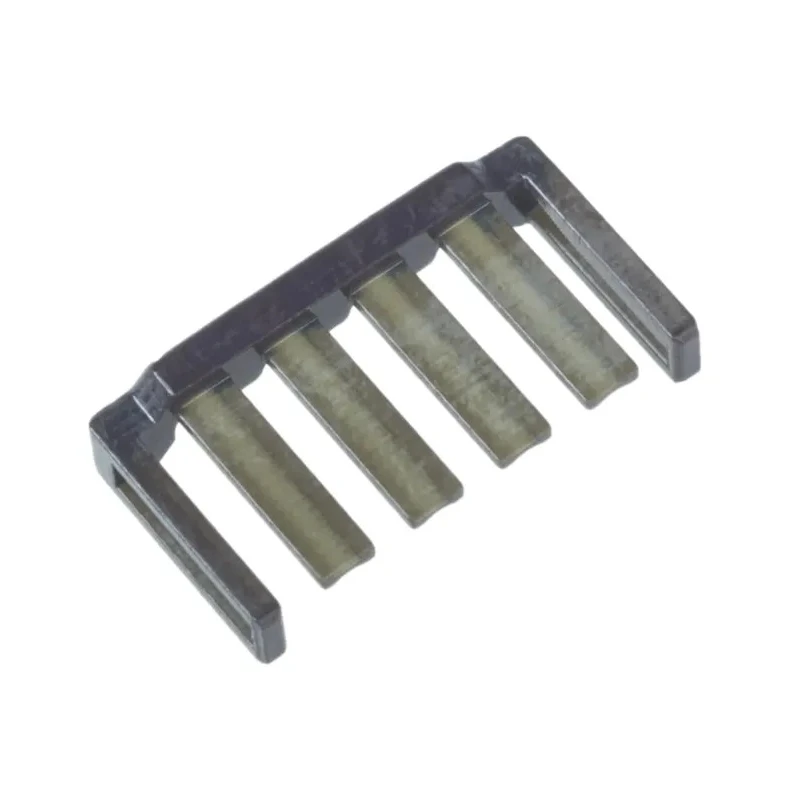

Molex 105325 Series Terminal Position Assurance Connector Accessory 105325-2002
Specifications
| Country of Origin | China |
|---|---|
| Brand | Molex |
| Series | 105325 |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Series OF 105307 AND 105308 (RECEPTACLE) |
Key Features
- Designed to ensure full seating of crimp terminals in Nano-Fit housings.
- Compatible with Nano-Fit 105307 and 105308 series crimp housings.
- Prevents terminal backout for enhanced connection reliability.
- Operates within temperature range from -40°C to 105°C.
- Complies with UL-94V-0 standard and adheres to RoHS Directive 2011/65/EU.
- Manufactured in China, supporting international quality standards.
Product Description
Molex 105325-2002 is a Terminal Position Assurance (TPA) accessory designed to secure crimp terminals within Molex Nano-Fit wire-to-board connector systems. It ensures that terminals are fully seated in the crimp housings, preventing terminal backout even if the main retention features fail.
Compatible specifically with the 105307 and 105308 receptacle series, these TPAs enhance connector reliability in demanding industrial and electronic applications.
With an operating temperature range from -40°C up to 105°C, it suits use across varied environmental conditions. The product meets UL-94V-0 flammability standards and complies with RoHS Directive 2011/65/EU and ELV Directive 2000/53/EC, reflecting its adherence to global safety and environmental regulations.
Manufactured in China, the terminal position assurance component fits seamlessly in PCB connectors, wire housings, and crimp contact applications common in electronic component assembly, automation, automotive systems, and industrial manufacturing.
Ensures terminals remain securely seated within Nano-Fit connectors. Prevents terminal backout under mechanical strain or vibration. Supports operating temperatures from -40°C to 105°C. Conforms to UL-94V-0 flammability rating for safety.
RoHS and ELV compliant for environmental and directive adherence. Compatible with 105307 and 105308 Nano-Fit receptacle series.
This Molex 105325 series accessory is essential for ensuring high-reliability wire-to-board connections in industrial, automotive, laboratory, and electronics manufacturing environments. It enhances the durability and safety of electrical assemblies. Explore the Molex catalog on EnvMart for comprehensive electronic components and connector accessories to complement your industrial needs.
Explore more products in our Terminal Block Accessories category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a temperature range from -40°C to 105°C.
It is compatible with the Nano-Fit 105307 and 105308 series crimp housings.
This product complies with the UL-94V-0 flammability standard and adheres to the RoHS Directive 2011/65/EU and the ELV Directive 2000/53/EC.
Its primary function is to ensure full seating of crimp terminals in Nano-Fit housings, preventing terminal backout for enhanced connection reliability.
It is manufactured in China, supporting international quality standards.
This accessory is suitable for use in electronic component assembly, automation, automotive systems, and industrial manufacturing environments.
It enhances connector reliability by securing terminals within the housings, preventing backout even under mechanical strain or vibration.
The series designation is 105325.
The UL-94V-0 rating indicates that the material used in this accessory has passed stringent flammability tests, ensuring safety in applications.
Yes, it complies with the RoHS Directive and the ELV Directive, reflecting adherence to environmental regulations.
It offers features such as preventing terminal backout and ensuring full seating of crimp terminals, enhancing connection reliability.
It fits into Molex Nano-Fit wire-to-board connector systems.
