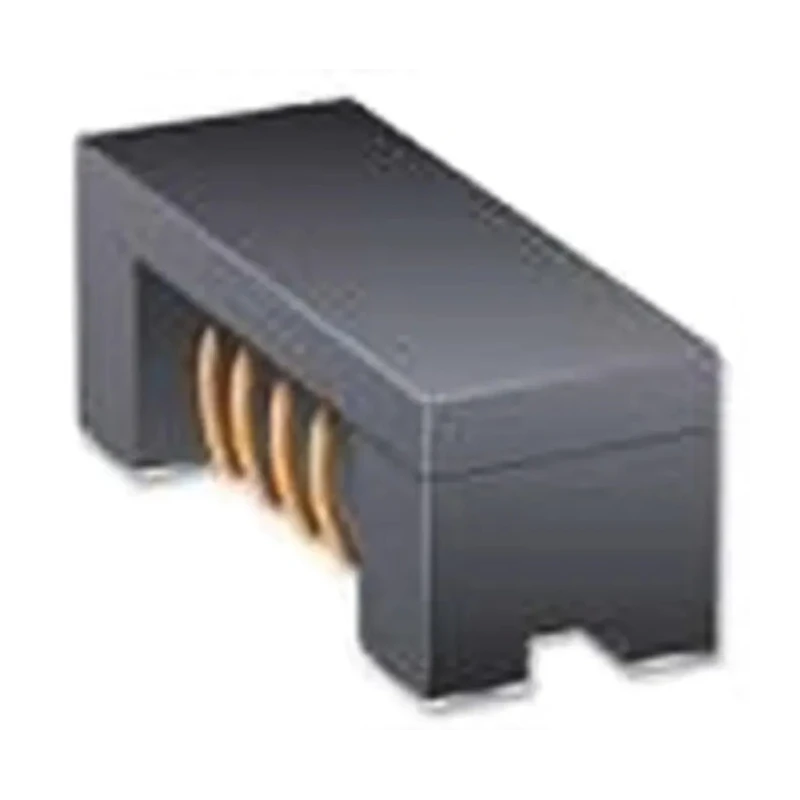

Bourns 3216 Shielded Surface Mount Common Mode Line Filter with Ferrite Core 90μH ±25 % 400mA Idc SRF3216

Bourns SRF3216 is a 3216 Shielded Surface Mount Common Mode Line Filter with a ferrite core, providing 90μH inductance with a tolerance of ±25% and rated for 400mA maximum DC current. It is engineered for effective noise suppression in electronic equipment, particularly in personal computers and display panel applications.

The device features a shielded wirewound inductor construction using a ferrite core, which yields high impedance and superior EMI filtering performance. It comes in a compact 3216 package with dimensions of 3.2mm in length, 2mm height, and 1.6mm depth, making it suitable for dense PCB layouts.

This common mode line filter offers a maximum DC resistance of 300mΩ, allowing efficient current conduction while suppressing noise disturbances. It operates reliably across a temperature range from -55°C to 125°C, compliant with RoHS standards and comes with a molded design ensuring mechanical robustness.

The solder termination style facilitates seamless surface mount assembly on modern PCB manufacturing lines. This product is ideal for industrial, electronics manufacturing, telecommunications, and computing applications where noise filtering is critical for product performance and longevity.

Designed for noise suppression in electronic circuits. Features shielded construction for enhanced EMI filtering. Compact 3216 package dimensions with 3.2mm length and 1.6mm depth. Wirewound inductor construction with a ferrite core ensures high impedance.

Rated operating temperature range from -55°C to 125°C. Maximum DC resistance is 300mΩ, supporting efficient current flow. Solder termination style compatible with surface mount assembly. RoHS compliant and molded for durability.

Suitable for applications including personal computers and display panels. Explore more Bourns Surface Mount Inductors on EnvMart for reliable and compliant electronic component solutions.
