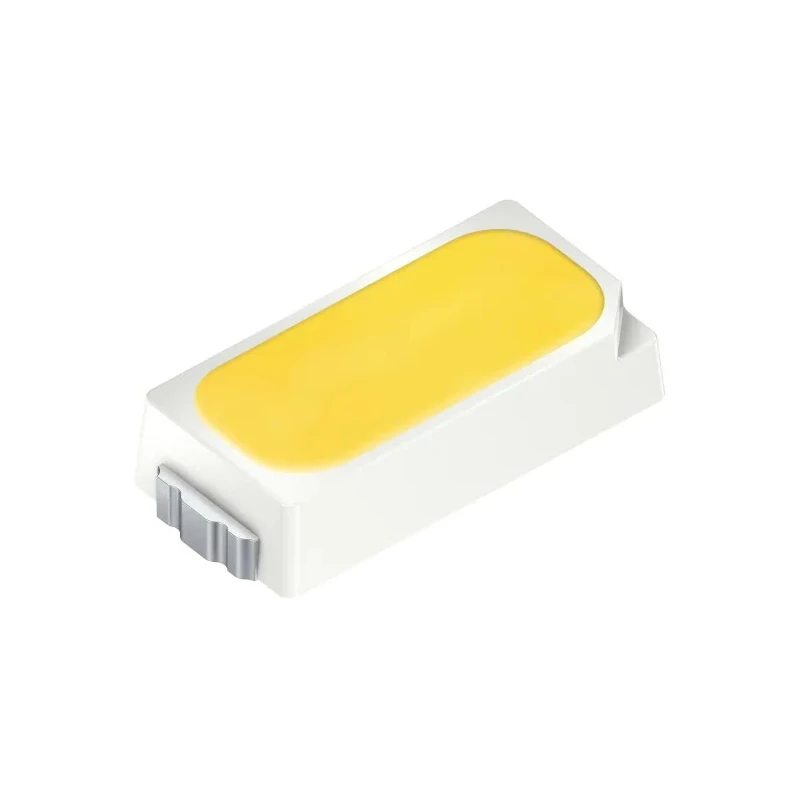

ams OSRAM 2.7 V White LED 3014 Surface Mount KW DCLMS2.EC-CXCZ-4L7M-1

ams OSRAM KW DCLMS2.EC-CXCZ-4L7M-1 is a high-performance 2.7 V white LED in the 3014 package type designed for surface mount applications. This component is ideal for use in screen backlighting and homogeneous illumination in light guide applications due to its compact size and wide beam angle.

Featuring a maximum forward current of 30 mA, the LED delivers luminous flux between 9150 and 12600 mlm with luminance values ranging from 2800 to 4500 mcd. Its color temperature is rated at 4500 K with an 80% color rendering index, making it suitable for applications requiring bright and consistent white light.

The LED has a viewing angle of 110 degrees and lens dimensions of 3 x 1.4 mm, ensuring broad and effective light dispersion. The chip technology uses InGaN on Sapphire, providing robust performance and corrosion resistance of class 1B. It operates reliably within a temperature range of -40 to 85 °C, making it suitable for industrial, electronic components manufacturing, display, and lighting systems.

This LED complies with IEC 62471:2006 safety standards and is not designed for automotive applications. It is packaged in Tape & Reel form, supporting efficient manufacturing and assembly processes.

Maximum forward current: 30 mA. Luminous flux range: 9150 to 12600 mlm. Color temperature: 4500 K with CRI 80%. Viewing angle: 110 degrees. Lens size: 3 x 1.4 mm. Chip technology: InGaN on Sapphire. Operating temperature: -40 to 85 °C.

Compliance: IEC 62471:2006 safety standard. Packaged in Tape & Reel format for automated assembly.

This product finds extensive application in electronic components, display backlighting, and precision lighting industries. For expanded selection, browse LED components on EnvMart.
