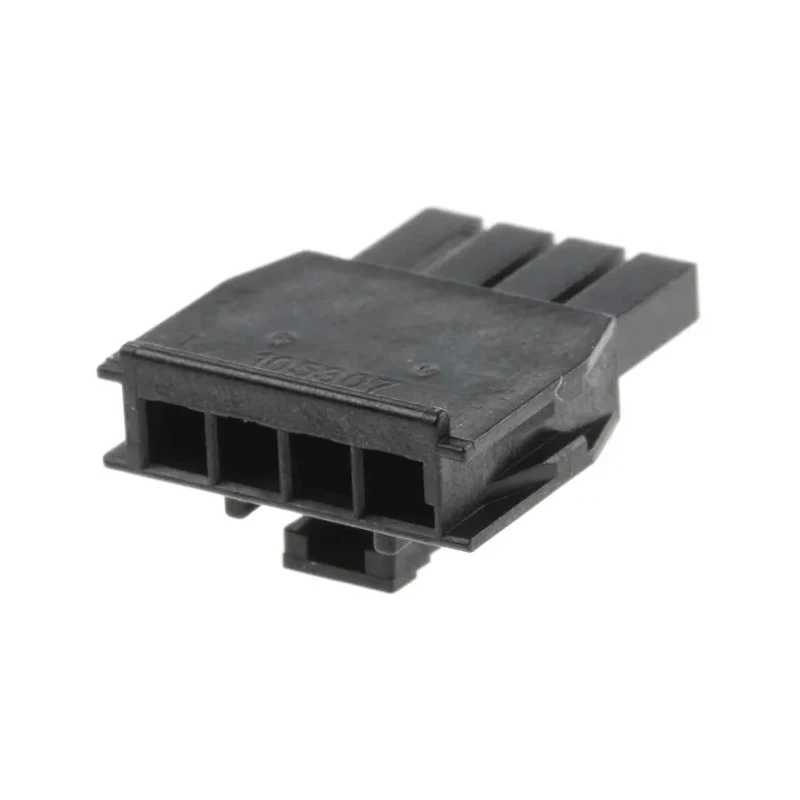

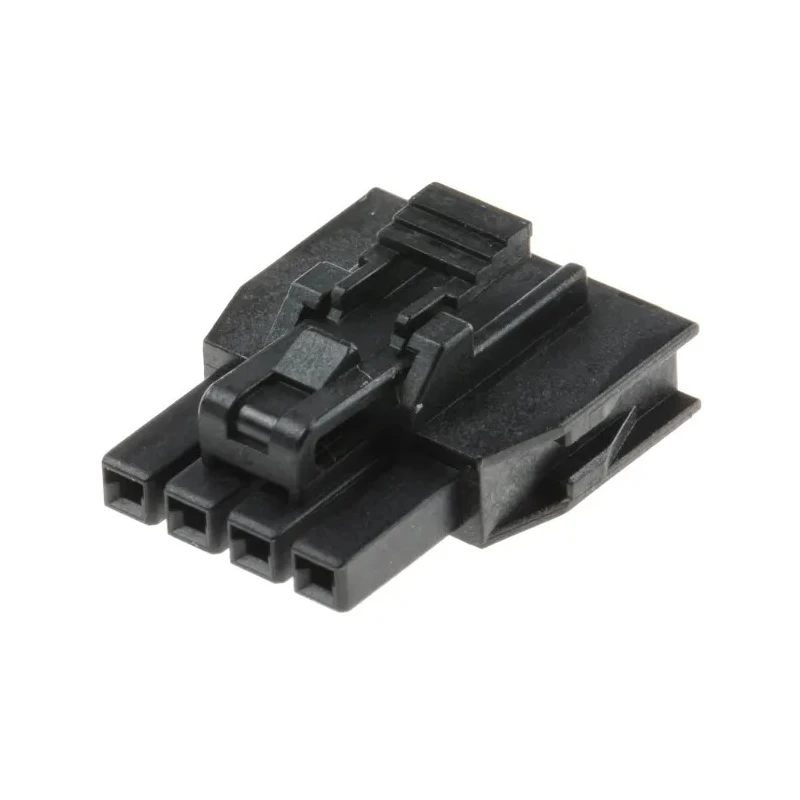

Molex Nano-Fit Female Connector Housing 2.5 mm Pitch 4 Way 1 Row Straight 105307-1204
Specifications
| Country of Origin | China |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 12.7mm |
| Width | 15.7mm |
| Mount Type | Cable |
| Housing Material | Nylon |
| Series | Nano-Fit |
| Number of Rows | 1 |
| Pitch | 2.5mm |
| For Use With | 105300 Nano-Fit Crimp Terminal, 105325 Nano-Fit TPA Retainer |
| Number of Contacts | 4 |
| Connector Gender | Female |
Key Features
- Compact size with a 2.5 mm pitch for space-saving design.
- Provides full electrical contact isolation to prevent arcing and damage.
- Equipped with positive locking latches featuring anti-snag design for secure connections.
- Audible click and tactile feedback confirm proper mating and prevent misalignment.
- Polarization and keying ensure accurate alignment and reduce installation errors.
- Constructed with durable nylon housing material suitable for various industrial applications.
- Compatible with 105300 Nano-Fit crimp terminals and 105325 Nano-Fit TPA retainers (sold separately).
- Suitable for use in consumer appliances, telecommunications, automotive, lighting, aerospace, industrial, and medical equipment.
Product Description
Molex 105307-1204 Nano-Fit Female Connector Housing is a cable mount connector housing with 4 contacts arranged in a single row, featuring a 2.5 mm pitch and a straight orientation. It provides robust full contact electrical isolation via a nylon housing, designed to protect contacts from arcing and shorting caused by debris. The housing measures 12.7 mm in length and 15.7 mm in width, enabling compact and efficient PCB and wire connection solutions.
Its positive locking latching mechanism incorporates an anti-snag design that prevents accidental disconnections and damage caused by wire snags. An audible click confirms correct mating, while tactile feedback aids in preventing mis-mating through polarization and keying features.
This connector housing is intended for use with Molex 105300 Nano-Fit crimp terminals and 105325 Nano-Fit TPA (Terminal Position Assurance) retainers, which ensure secure terminal placement and prevent position loss during operation.
The compact and reliable Nano-Fit system is widely used in applications such as consumer and home appliances (including fridges, washers, and dryers), telecommunications equipment (servers, hubs), automotive interior applications and lighting systems, aerospace and defense industries, industrial food and beverage processing machinery, and medical patient care devices.
Compact size with 2.5 mm pitch for space efficiency. Full contact isolation ensures electrical safety and durability. Positive locking with anti-snag design prevents accidental disengagement. Audible and tactile feedback confirm correct mating.
Polarization and keying features reduce installation errors. Nylon housing material offers strength and resistance to wear. Compatible with Molex Nano-Fit crimp terminals and TPA retainers. Ideal for electronic, automotive, aerospace, industrial, and medical applications.
Choose Molex Nano-Fit Female Connector Housings for reliable and compact wire to board connections. Explore further products and technical documentation by browsing topology and brand options on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector housing is 2.5 mm, designed for compact and efficient connections.
This model supports 4 contacts arranged in a single row.
The orientation of this connector housing is straight, allowing for direct cable mounting.
The housing is constructed from durable nylon material, providing strength and resistance to wear.
It is compatible with the Molex 105300 Nano-Fit crimp terminals and 105325 Nano-Fit TPA retainers, which are sold separately.
The housing measures 12.7 mm in length and 15.7 mm in width.
It features positive locking latches with an anti-snag design, which prevents accidental disconnections and provides tactile feedback upon proper mating.
This model is suitable for applications in consumer appliances, telecommunications, automotive, lighting, aerospace, industrial, and medical equipment.
The mounting type for this connector housing is cable mount, allowing for direct attachment to cables.
It incorporates polarization and keying features that ensure accurate alignment and reduce installation errors.
The country of origin for this connector housing is China.
This connector housing is part of the Nano-Fit series, which is designed for compact wire-to-board connections.
