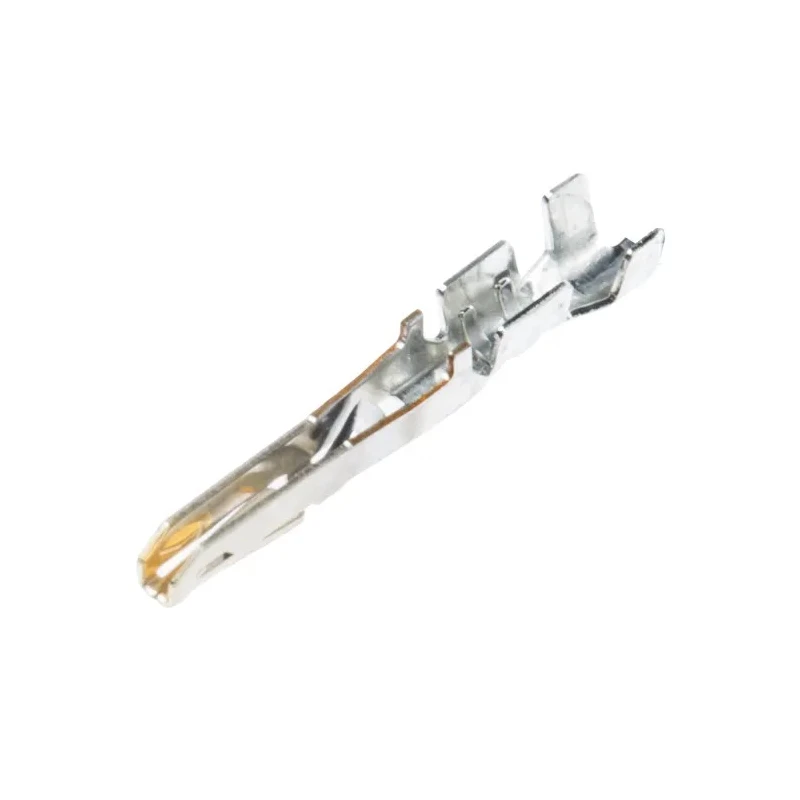

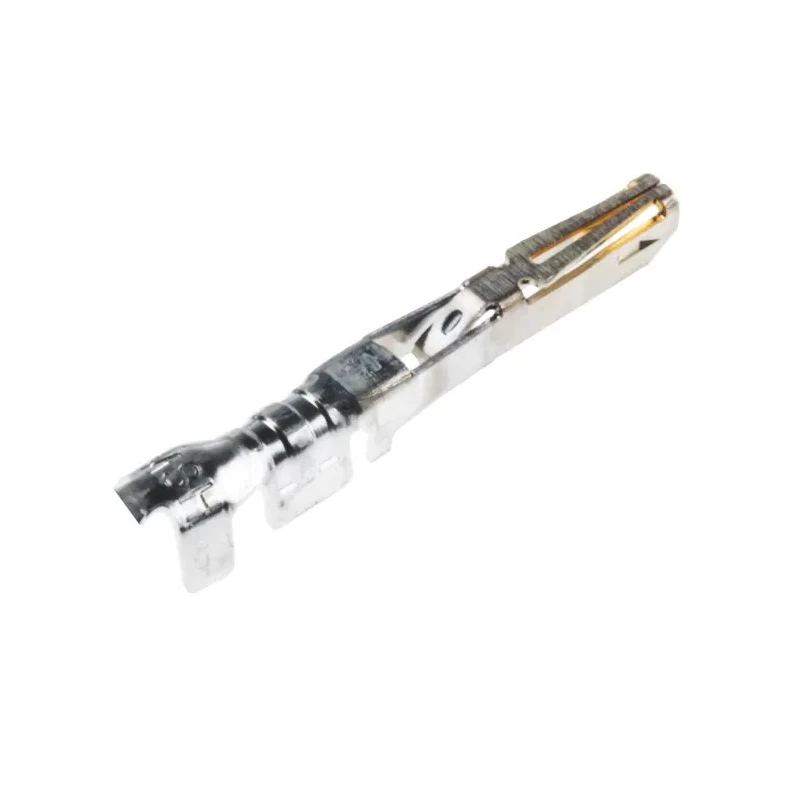

Molex 105300 Series Female Crimp Terminal 22 AWG to 20 AWG Crimp 8A Copper Alloy Contact Gold Plating 105300-2200
Specifications
| Country of Origin | China |
|---|---|
| Brand | Molex |
| Current | 8A |
| Gender | Female |
| Contact Material | Copper Alloy |
| Series | 105300 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Nano-Fit Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.3mm² |
| Maximum Wire Size mm² | 0.5mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 20AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- Compression fit enables quick and secure wire termination.
- Gold-plated copper alloy contact ensures low contact resistance and reliable conductivity.
- Fits into Nano-Fit connector housings with low insertion force for easy assembly.
- Rated for -40°C to 105°C operating temperature range.
- Multiple points of contact provide redundancy for increased reliability.
- Retention tangs and contact ribs maintain stable, long-term contact.
- Specifically designed for Nano-Fit 2.5 mm crimp receptacle housings (series 105307/105308).
- Suitable for aerospace, automotive, medical, and assembly line applications.
Product Description
Molex 105300-2200 Female Crimp Terminal is a high-quality electronic component designed for reliable wire termination in Nano-Fit 2.5 mm connector systems. It supports wire sizes from 22 AWG to 20 AWG (0.3 mm² to 0.5 mm²) and handles a maximum current of 8 amperes. The contact material is copper alloy with gold plating that provides low resistance (maximum 10 mΩ) and excellent conductivity to ensure long-term stable performance.
The compression fit design allows for quick and easy wire termination, reducing assembly time and increasing efficiency.
The terminal features multiple points of contact, offering redundancy that enhances current-carrying capability and reliability. Retention tangs and contact ribs maintain stable contact preventing connection failures during operation.
It is compatible with Nano-Fit connector housings (series 105307 and 105308), which are widely used across sectors such as aerospace, defense, automotive workshops, medical equipment, and industrial assembly lines. Its low insertion force reduces operator fatigue, facilitating faster and safer assembly processes.
Operating temperature ranges from -40°C to 105°C, making it suitable for demanding industrial environments. This product is manufactured in China and does not list any specific certifications or approvals.
Compression fit enables quick wire termination. Gold-plated copper alloy contact ensures low resistance. Fits Nano-Fit connector housings with low insertion force. Multiple contact points for redundancy and reliability. Retention tangs and ribs maintain stable connections.
Rated for -40°C to 105°C operating temperatures. Supports wire sizes 22 to 20 AWG (0.3 to 0.5 mm²). Applications include aerospace, automotive, medical, and assembly lines. Manufactured in China. Explore more Molex connectors and electronic components on EnvMart to suit various industrial, laboratory, and manufacturing applications.
Explore more products in our Crimp Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This female crimp terminal is rated for a maximum current of 8 amperes.
It supports wire sizes from 22 AWG to 20 AWG, which corresponds to 0.3 mm² to 0.5 mm².
The operating temperature range is from -40°C to 105°C, making it suitable for various industrial environments.
The contact material is copper alloy, which is gold-plated to ensure low contact resistance and reliable conductivity.
It is specifically designed for use with Nano-Fit connector housings, particularly series 105307 and 105308.
The maximum contact resistance is 10 mΩ, ensuring low resistance for reliable electrical connections.
The compression fit design enables quick and secure wire termination, reducing assembly time and increasing efficiency.
It features multiple points of contact for redundancy and retention tangs and contact ribs that maintain stable connections during operation.
This terminal is suitable for aerospace, automotive, medical, and assembly line applications.
This model is a female crimp terminal, designed for specific connector compatibility.
This crimp terminal is manufactured in China.
The series designation for this terminal is 105300.
