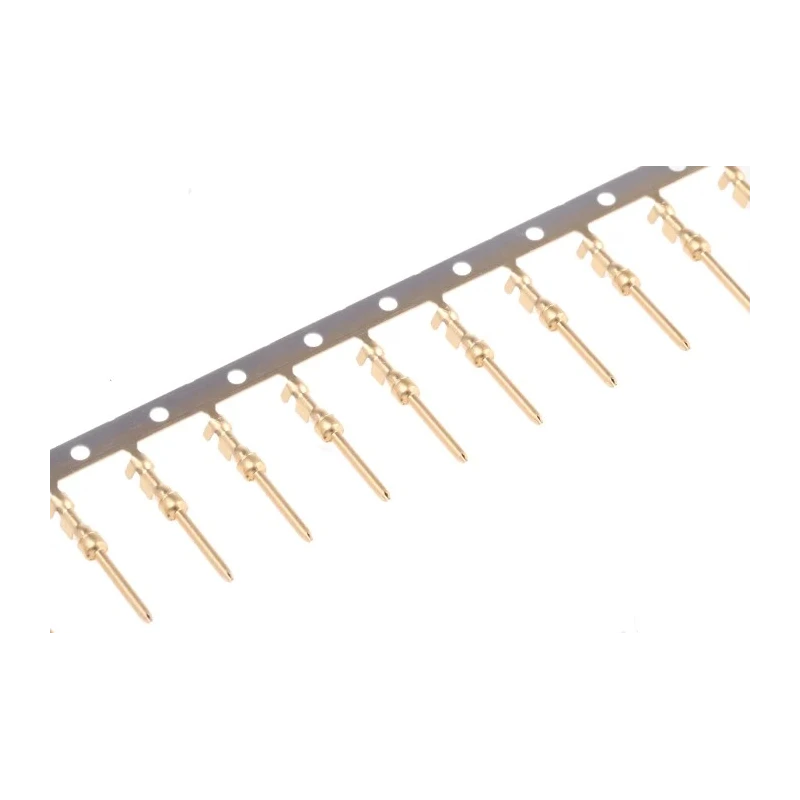

TE Connectivity AMPLIMITE HDP-20 Series Size 20 Male Crimp D-Sub Connector Contact Gold over Nickel Pin 24 AWG 66506-3

TE Connectivity 66506-3 Male Crimp D-Sub Connector Contact, part of the AMPLIMITE HDP-20 Series, is a precision-engineered component designed for secure and reliable electrical connections in electronic equipment and industrial applications. It is tailored specifically for size 20 D-Sub connectors and features a brass body with high-quality gold over nickel plating to enhance conductivity and resist corrosion.

This crimp contact is rated to handle currents up to 2 amperes, supporting low power signal transmissions typically required in computing, telecommunications, and control systems. The termination method is crimp type, ensuring a robust mechanical and electrical connection with 24 AWG wires ranging from 0.2 mm² to 0.6 mm² in cross-sectional area.

The contact measures 14.61 mm in length and has a pin diameter of 0.04 inches (1.02 mm), optimized for insertion into AMPLIMITE HDP-20 series connector shells. Its compact design and precision plating contribute to maintaining signal integrity and minimizing contact resistance, which does not exceed 15 milliohms.

This product does not list specific industry standards or approvals, which is typical for specialized connector contacts used in controlled industrial and laboratory environments.

Such contacts are indispensable in assembly of D-Sub connectors used across a variety of sectors including manufacturing, telecommunications, aerospace, and computing equipment. The reliable performance of this contact ensures signal quality and mechanical stability in demanding operational conditions.

The contact is made of brass material ensuring durability and conductivity. Gold over nickel plating provides corrosion resistance and improved signal quality. Rated for 2A current suitable for low power electronic circuits.

Suitable for 24 AWG wire size, with minimum 0.2 mm² and maximum 0.6 mm² wire sizes. Contact length measures 14.61 mm offering compact installation. Termination type is crimp enabling secure wire connection. Compatible with AMPLIMITE HDP-20 series and designed for D-Sub connector systems.

The pin diameter is 0.04 inches (1.02 mm), fitting tightly into connector housings. No formal standards or approvals are cited for this product. Explore our extensive catalog of connector solutions at EnvMart for additional industrial and electronic component needs.
