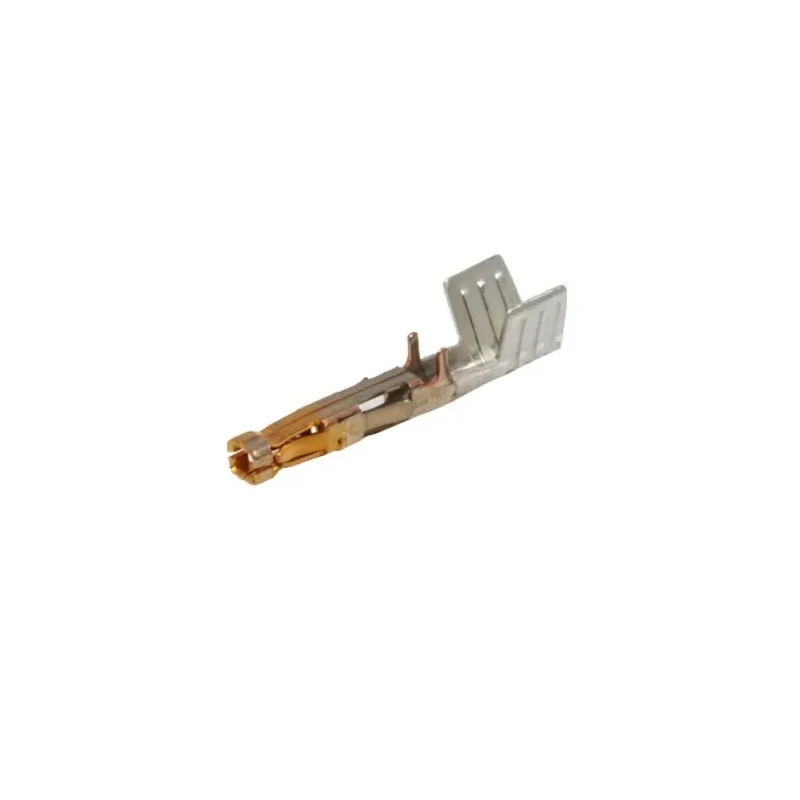

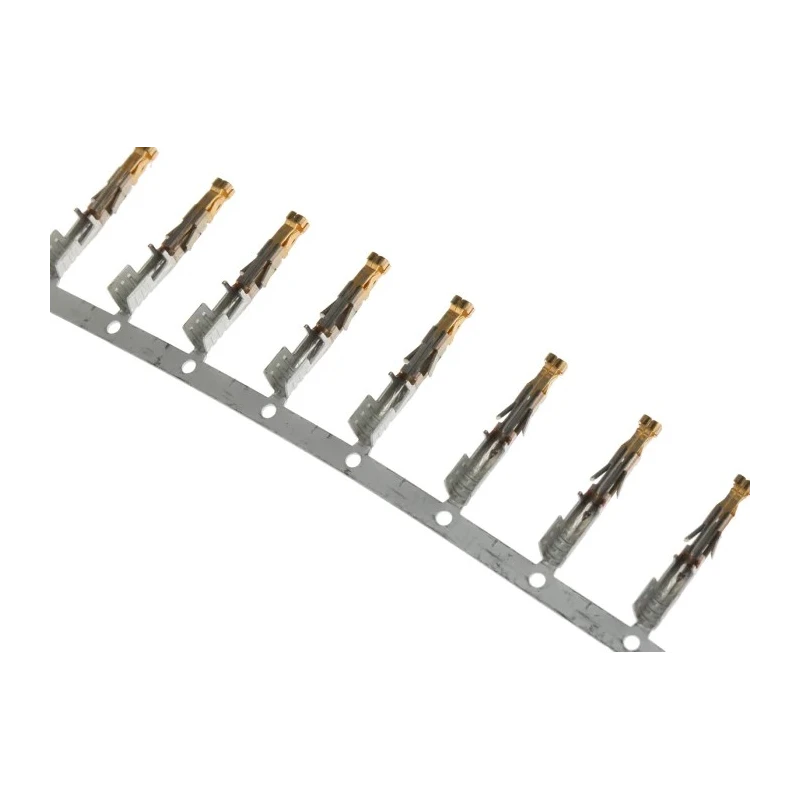

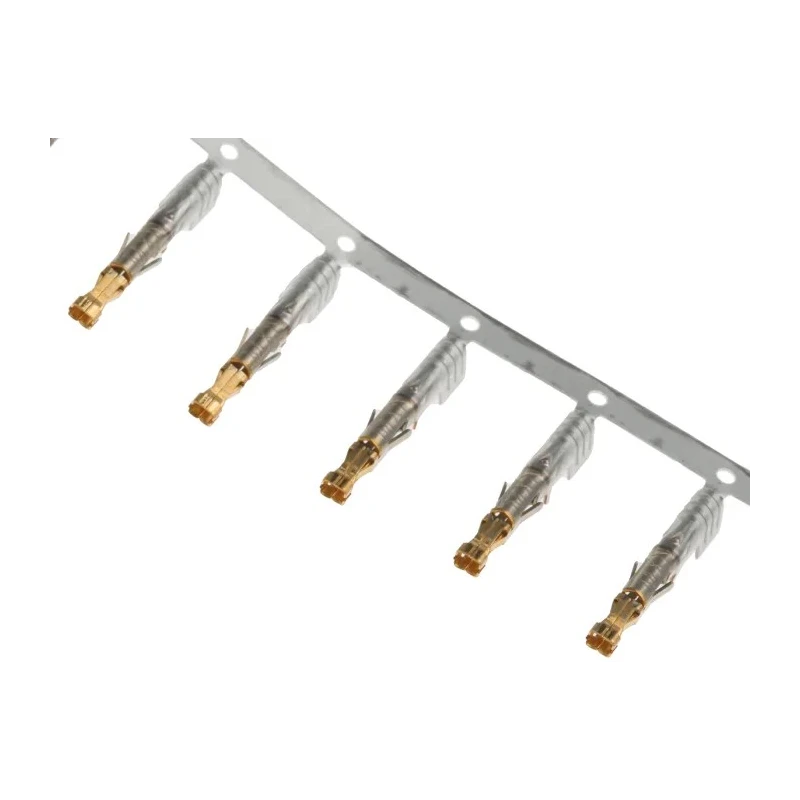

Molex 172063 Series Female Crimp Terminal 16 AWG Min Crimp 14 AWG Max Gold Plated Copper Alloy 23A Current 172063-0311
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Current | 23A |
| Gender | Female |
| Contact Material | Copper Alloy |
| Series | 172063 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Mega-Fit Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 1mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
| Maximum Contact Resistance | 2 |
Key Features
- The terminal supports wire sizes from 16 AWG minimum to 14 AWG maximum.
- It carries a current rating of 23 amperes for high-power applications.
- Constructed from copper alloy with gold plating for enhanced conductivity and corrosion resistance.
- Designed to operate reliably in temperatures ranging from -40°C up to 105°C.
- Features ribbed arms and tang locking for secure wire grip and terminal retention.
- Suitable for automotive electronics, HVAC equipment, industrial automation, and network servers.
- Split-box design enables hot plugging by minimizing arcing during connection and disconnection.
Product Description
Molex 172063-0311 Female Crimp Terminal is engineered for reliable power and wire-to-board connections in demanding industrial and electronic environments. This crimp terminal is compatible with Mega-Fit Connector Housings and accepts wire sizes ranging from 16 AWG (1 mm²) to 14 AWG (1.5 mm²), making it flexible for various wiring needs.
Manufactured from a high-quality copper alloy, it provides excellent electrical conductivity and mechanical strength. The gold plating on the contact surfaces ensures low contact resistance of 5mΩ and improves corrosion resistance for long-term durability. The terminal is designed with ribbed arms to secure wires firmly and tangs to lock the terminal within connector housings, preventing disconnections under vibration or mechanical stress.
Operating temperature range is wide, from -40°C to +105°C, allowing this terminal to perform reliably in harsh conditions encountered in automotive, HVAC, and industrial automation applications. With a current rating of 23A and maximum voltage rating of 600 volts, it suits high-power equipment and network server systems.
This terminal is specifically designed for the Mega-Fit Series, ensuring compatibility and ease of integration into existing assemblies. The split-box design minimizes arcing during insertion and removal, supporting hot plugging applications safely and effectively.
The terminal supports wire sizes from 16 AWG minimum to 14 AWG maximum. Gold plating enhances corrosion resistance and electrical performance. Durable copper alloy construction offers mechanical strength. Wide operating temperature range from -40°C to 105°C.
Rated for 23 amperes current and up to 600 volts maximum voltage. Ribbed arms and locking tangs provide secure wire and connector retention. Split-box design suitable for hot-plugging operations.
Molex’s 172063-0311 Female Crimp Terminal is ideal for automotive electronics, HVAC equipment, industrial automation, and network server applications. This product provides reliable electrical and mechanical performance essential for modern electronic component assemblies.
Explore more Molex connectors and terminals on EnvMart to find compatible components for your industrial and electronic projects.
Explore more products in our Crimp Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal has a current rating of 23 amperes, making it suitable for high-power applications.
It supports wire sizes ranging from 16 AWG (1 mm²) minimum to 14 AWG (1.5 mm²) maximum.
The maximum voltage rating for this terminal is 600 volts.
It is constructed from copper alloy and features gold plating for enhanced conductivity and corrosion resistance.
The terminal operates reliably in temperatures ranging from -40°C to +105°C.
It features ribbed arms and tang locking to ensure a secure wire grip and terminal retention within the connector housing.
Yes, the split-box design minimizes arcing during connection and disconnection, making it suitable for hot-plugging.
This terminal is designed for use with Mega-Fit Connector Housings.
The maximum contact resistance is rated at 2 mΩ, ensuring low resistance for effective conductivity.
It is suitable for automotive electronics, HVAC equipment, industrial automation, and network server applications.
The terminal is manufactured in India.
This terminal uses a crimp termination type, which is common for wire connections.
