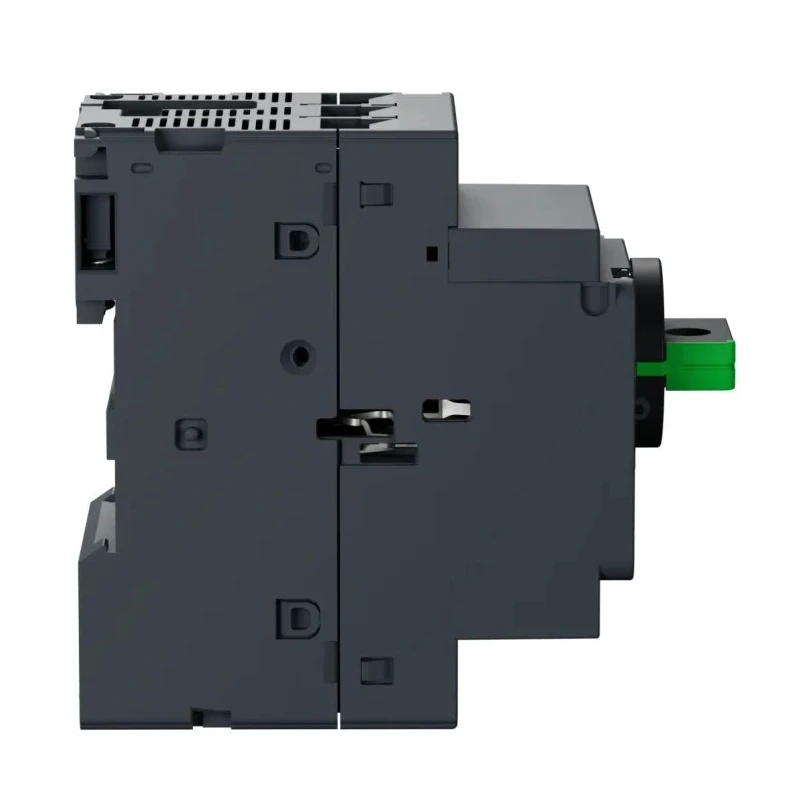

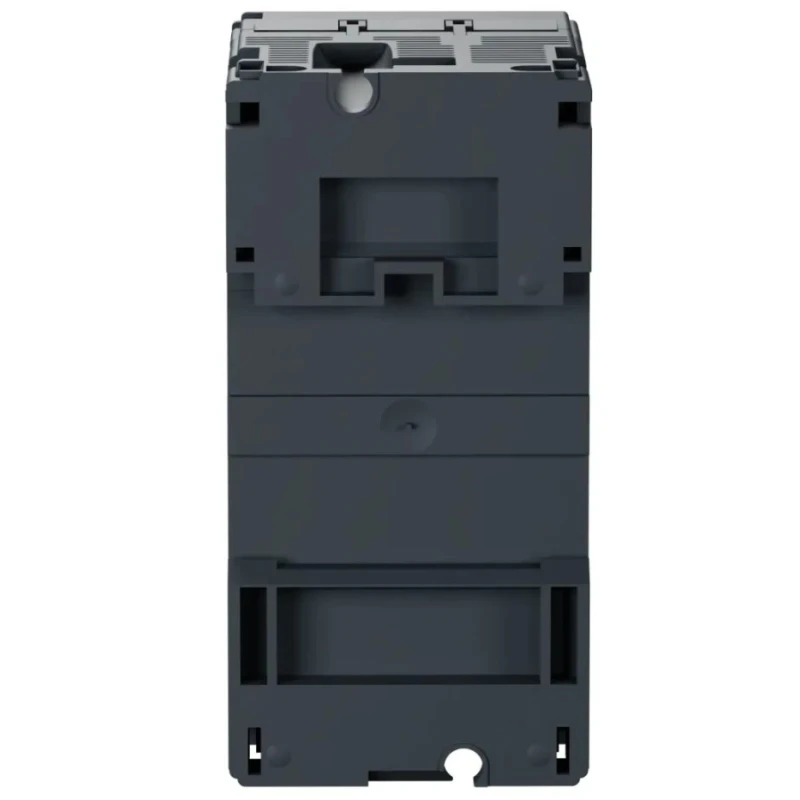

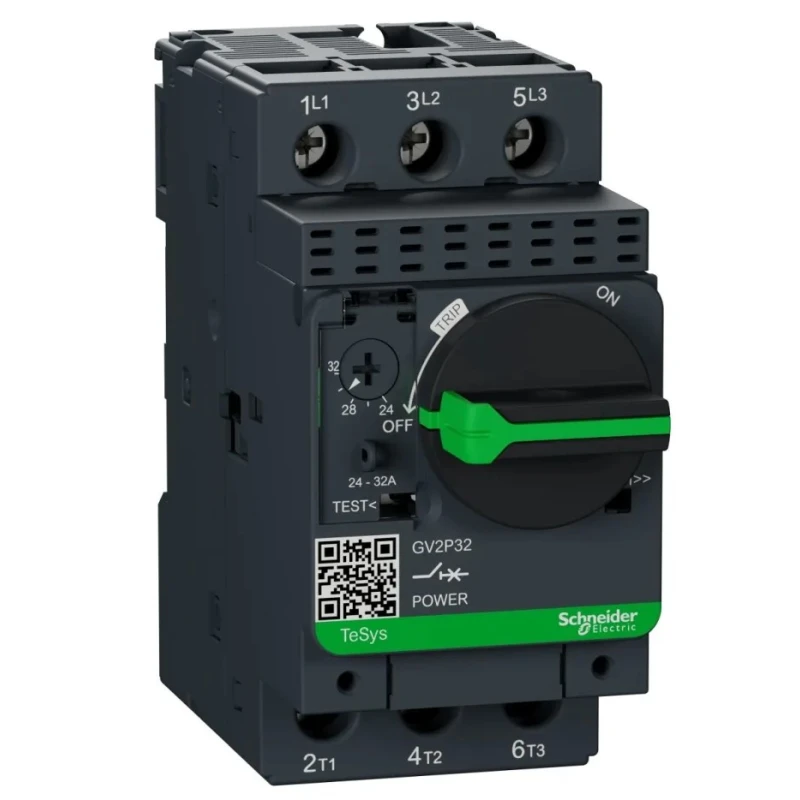

Schneider Electric Motor Protection Circuit Breaker TeSyS GV Series 24-32A, Thermal Magnetic, 690V, IP20, 3 Poles GV2P32
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Model | GV2P32 |
| IP Rating | IP20 |
| Overall Length | 89mm |
| Current Rating | 24, 32A |
| Series | TeSyS GV |
| Overall Width | 45mm |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Sensing type | Thermal Magnetic |
| Supply Voltage | 690V |
| Number of Poles | 3 |
| Overall Depth | 97mm |
| Motor Protection Component | Circuit Breaker |
| Motor Protection System | Motor Protection Circuit Breaker |
Key Features
- Equipped with thermal magnetic trip unit technology for reliable overload and short circuit protection.
- Supports motor powers up to 0.55 kW at 690V AC for versatile industrial use.
- Compact design with dimensions 89mm x 45mm x 97mm saves panel space.
- Offers a high breaking capacity of 100 kA ensuring robust operation under fault conditions.
- Designed with IP20 rating suitable for indoor electrical panel installations.
- Operates in temperature range from -20 °C to 60 °C ensuring durability in diverse environments.
- Can be mounted easily on 35mm symmetrical DIN rail or panel for flexible installation.
- Complies with international standards including UL, IEC 60947 series, CSA, ATEX, and RoHS.
Product Description
Schneider Electric GV2P32 Motor Protection Circuit Breaker is a high-quality device engineered for protecting motors in industrial and commercial applications. Featuring a thermal magnetic trip unit, it provides effective protection against both overloads and short circuits to safeguard motor performance and prolong operational life. This model is part of the trusted TeSyS GV series and supports a current rating range of 24 to 32 amps with a supply voltage of 690 volts.
The compact dimensions of 89 mm length, 45 mm width, and 97 mm depth make it an ideal choice for space-constrained electrical panels and control cabinets. It is designed for three-pole motor protection, suitable for various machinery and automation systems. With an IP20 protection rating, the circuit breaker is intended for indoor use, providing adequate protection from solid objects.
Installation is made convenient with compatibility for 35 mm symmetrical DIN rail or direct panel mounting options. Its high breaking capacity of 100 kA ensures the device can handle sudden electrical faults effectively, enhancing system reliability and safety.
Operating temperature ranges from -20 °C to 60 °C enable the unit to endure harsh industrial environments. The GV2P32 complies with numerous international certifications and standards such as LROS, UL, RINA, ATEX, BV, REACH/RoHS, CCC, CSA, DNV GL, EAC, EN/IEC 60947-2, EN/IEC 60947-4-1, and IECEE CB ensuring global compliance and quality assurance.
Equipped with thermal magnetic trip technology for motor protection. Suitable for motor powers up to 0.55 kW at 690V AC supply voltage. Compact size and flexible mounting on DIN rail or panel. High breaking capacity of 100 kA for enhanced safety.
IP20 rated for indoor electrical panel use. Operates reliably from -20 °C to 60 °C ambient temperatures. Comprehensive international certifications and standards compliance. Ideal for industrial automation, machinery, and electrical panel motor protection.
Choose Schneider Electric TeSyS GV2P32 Motor Protection Circuit Breaker for dependable motor safeguarding in your industrial applications. Explore more products in our Circuit Breakers category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The GV2P32 model has a current rating range of 24 to 32 amps.
This circuit breaker supports a maximum supply voltage of 690 volts.
The GV2P32 has an IP20 rating, making it suitable for indoor electrical panel installations.
The overall dimensions of the GV2P32 are 89 mm in length, 45 mm in width, and 97 mm in depth.
It is equipped with a thermal magnetic trip unit for reliable overload and short circuit protection.
The GV2P32 has a high breaking capacity of 100 kA, ensuring robust operation under fault conditions.
This model operates reliably within a temperature range of -20 °C to 60 °C.
It can be easily mounted on a 35 mm symmetrical DIN rail or directly on a panel for flexible installation.
This circuit breaker complies with several international standards, including UL, IEC 60947 series, CSA, ATEX, and RoHS.
The GV2P32 supports motor powers up to 0.55 kW at 690V AC.
The GV2P32 is manufactured in India.
This model features three poles for motor protection.
