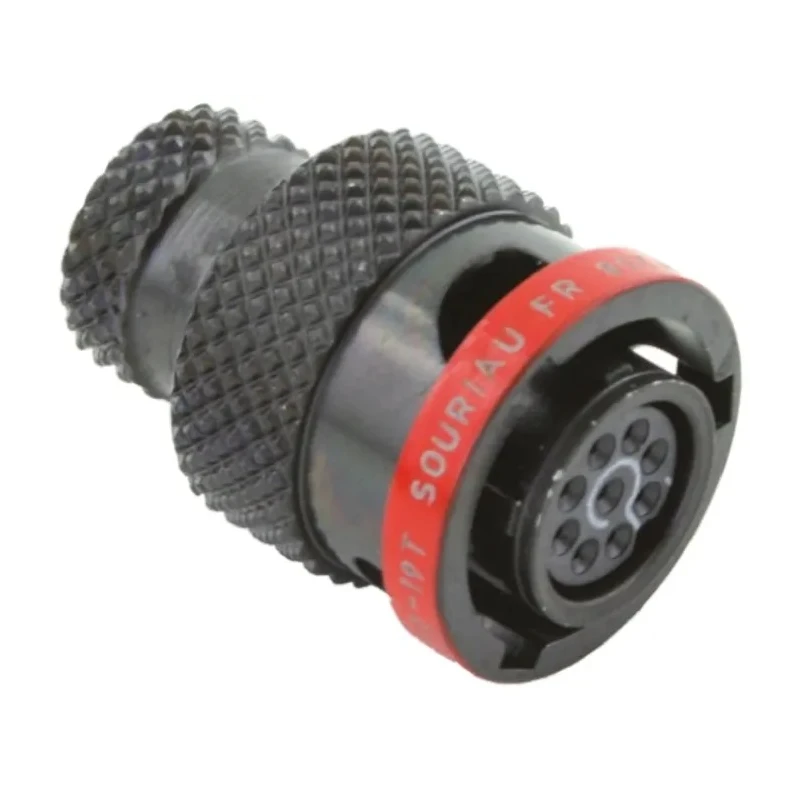

Souriau Sunbank by Eaton Circular Connector 9 Contacts Cable Standard Size 6 Plug Female IP67 1300V 3A Bayonet 8STA60609SN

Free Delivery in India | Lowest Global Shipping Charges

Souriau Sunbank by Eaton Circular Connector 9 Contacts Cable Standard Size 6 Plug Female IP67 1300V 3A Bayonet 8STA60609SN

Name: Souriau Sunbank by Eaton Circular Connector 9 Contacts Cable Standard Size 6 Plug Female IP67 1300V 3A Bayonet 8STA60609SN
Brand: Souriau Sunbank by Eaton
SKU: 104750
Price: 174.53 USD
Availability: InStock



Category Industrial Circular Connector Brand Souriau Sunbank by Eaton Condition New

Specifications

Country of Origin	France
Voltage	1300V
Brand	Souriau Sunbank by Eaton
Orientation	Straight
Current	3A
Model	8STA60609SN
IP Rating	IP67
Mount Type	Cable
Body	Alluminium alloy, conductive black zinc plated
Housing Material	Nylon
Contact Material	Copper
Series	8STA
Maximum Operating Temperature	175°C
Minimum Operating Temperature	-55°C
Contact Plating	Gold
Number of Contacts	9
Contact Gender	Female
Shell Size	6
Mating Type	Bayonet
Connector Size	Standard
Plug/Socket	Plug
Coding	N

Key Features

Features a lightweight and compact design with bayonet locking system that mates in one-third turn.
Rated IP67 for water and dust protection for 1 meter depth, 30 minutes minimum.
Gold plated copper alloy female contacts with a current rating of 3A and voltage rating of 1300V.
Constructed with aluminium alloy body coated with conductive black zinc plating and nylon housing.
Operates reliably in temperature ranges from -55°C to 175°C.
Shock resistance at 300g for 3 ms and vibration tolerance from 10 to 2000 Hz at 147 m/s².
Intended primarily for motorsport, military, UAV, ground vehicle, and infantry interconnections.
Colour coded banding for easy identification with audible click on mate.

Product Description

Souriau Sunbank by Eaton 8STA60609SN Circular Connector is a premium, lightweight, and robust 9 contact cable mount plug connector engineered for demanding motorsport and military environments. It is designed as a standard size 6 plug with female contacts, featuring a quick mating bayonet lock that secures in one-third of a turn with an audible click to ensure fast and reliable connections.

Constructed with an aluminium alloy body treated with conductive black zinc plating and featuring a durable nylon housing, this connector delivers excellent resistance against vibrations and shocks, providing a shock resistance of 300g for 3 ms and vibration endurance from 10 to 2000 Hz at 147 m/s². Its gold plated copper alloy contacts maintain reliable conductivity and corrosion resistance under harsh conditions.

The connector carries an IP67 ingress protection rating, enabling it to withstand immersion in water up to 1 meter for 30 minutes, making it ideal for outdoor and harsh environment applications. It supports a voltage of 1300V and a current of 3A, accommodating sensitive and robust electrical connections.

Operating in a broad temperature range from -55°C to 175°C, the connector is highly suitable for extreme environmental conditions encountered in motorsport disciplines such as Formula 1, Moto GP, WRC, and other racing formats as well as military applications including UAVs, ground vehicles, and infantry communications where size and weight are critical design factors.

Lightweight and ultra-compact design for motorsport and military use. Bayonet locking system enables quick and secure connection. Gold plated copper alloy female contacts ensure excellent conductivity. IP67 rated for protection against dust and water ingress.

Durable aluminium alloy body with conductive black zinc plating. Broad operational temperature range from -55°C to 175°C. Shock and vibration resistant for reliability in extreme conditions. Colour coded band for easy connector identification.

This circular connector is supplied complete with contacts and an extraction tool, facilitating easy installation and maintenance. It complies with MIL-DTL-38999 standards adapted specifically for motorsport industry requirements. Choose Souriau Sunbank by Eaton 8STA60609SN for high-performance, dependable electrical connections in industrial, laboratory, construction, HVAC, transportation, and military applications.

Explore further connectors and components in the Industrial Circular Connector category on EnvMart to find compatible accessories and expand your system capabilities.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model has a voltage rating of 1300V and a current rating of 3A.

It features an IP67 ingress protection rating, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes.

The connector is constructed with an aluminium alloy body that is conductive black zinc plated, and it features a nylon housing. The contacts are made of gold plated copper alloy.

It operates reliably in a temperature range from -55°C to 175°C.

The bayonet locking system allows for quick mating, securing the connection in one-third of a turn with an audible click, ensuring a fast and reliable connection.

This model has a standard size 6 and features 9 female contacts.

It is primarily designed for demanding environments such as motorsport, military, UAV, ground vehicle, and infantry interconnections.

It has a shock resistance rating of 300g for 3 milliseconds.

This connector can endure vibrations from 10 to 2000 Hz at 147 m/s².

Yes, it is supplied complete with contacts and an extraction tool for easy installation and maintenance.

It complies with MIL-DTL-38999 standards, which are adapted specifically for motorsport industry requirements.

The connector is manufactured in France.
