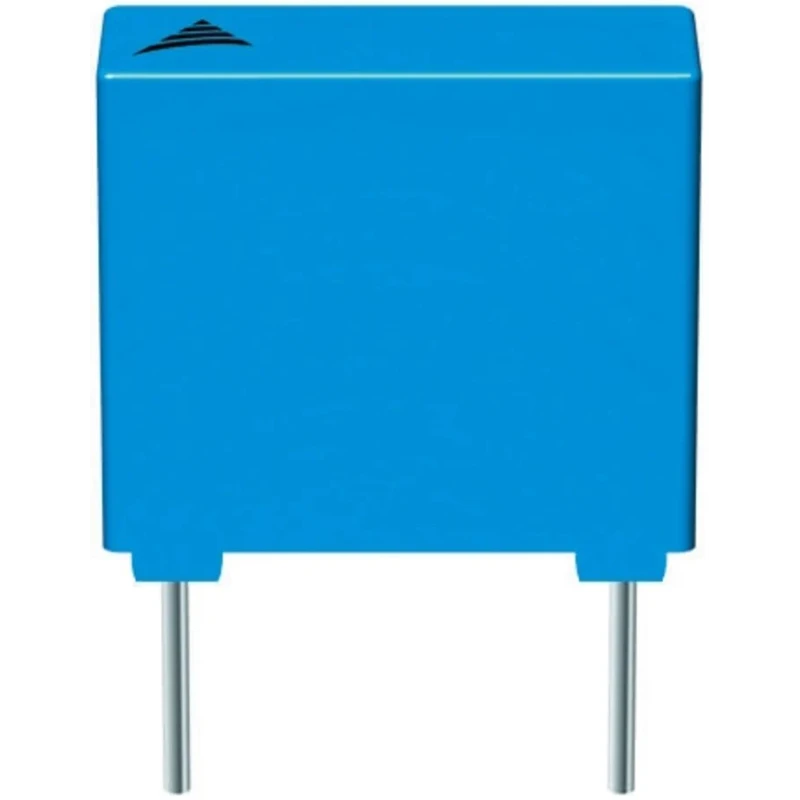

TDK Film Capacitor 22 nF 300 V AC 300 V DC Through Hole 2 Pin Lead Pitch 15mm B32022A3223M000

Free Delivery in India | Lowest Global Shipping Charges

TDK Film Capacitor 22 nF 300 V AC 300 V DC Through Hole 2 Pin Lead Pitch 15mm B32022A3223M000



Category Film Capacitor Brand TDK Condition New

Specifications

Country of Origin	India
Brand	TDK
Operating Temperature	-40 → 110 °C
Height	12mm
Length	18mm
Model	B32022A3223M000
Width	6mm
Mount Type	Through Hole
Series	B32022
Maximum Operating Temperature	110°C
Capacitance	22nF
Standards/Approvals	CSA, UL
Pin Count	2
Rated AC Voltage	300V ac
Rated DC Voltage	300V dc
Lead Pitch	15mm
Lead Diameter	0.8mm

Key Features

Constructed with polypropylene and plastic case ensuring UL 94 V-0 flame retardancy.
Compact dimensions of 18mm length, 12mm height, and 6mm width.
Rated operating temperature from -40 to 110 °C for versatile usage.
Features excellent self-healing properties and high voltage capability.
Ideal for Y2 class interference suppression and line-to-ground applications.
Lead pitch measures 15 mm with 2-pin configuration and lead diameter of 0.8 mm.
Certified to CSA and UL standards for quality assurance.
Designed for use in electronic circuits requiring stable film capacitor performance.

Product Description

TDK B32022A3223M000 Film Capacitor is a high-quality passive electronic component designed for through-hole mounting applications. It offers a capacitance of 22 nF with rated voltages of 300 V AC and 300 V DC, suitable for various industrial and commercial electronic circuits.

The capacitor features a polypropylene dielectric construction enclosed in a plastic case compliant with UL 94 V-0 standards, providing flame retardant and epoxy resin sealing also rated UL 94 V-0. Its compact size with 18 mm length, 12 mm height, and 6 mm width allows space-efficient assembly on printed circuit boards.

Operating temperature range from -40 to 110 °C ensures reliable performance under varying environmental conditions. The device exhibits excellent self-healing properties capable of sustaining voltage stress, making it ideal for interference suppression in Y2 class and line-to-ground circuits.

The 2-pin lead pitch is 15 mm with lead diameter of 0.8 mm, enabling straightforward through-hole mounting. Certifications including CSA and UL attest to its compliance with recognized safety and quality standards.

Typical applications include industrial electronics, power supplies, and HVAC electronic controls requiring stable and durable Film Capacitors. This product supports standards EN 132400 / IEC 60384-14 for 300 V AC ratings, and UL1414, UL1283, CSA C22.2 No.1, and No.8 compliant designs.

Constructed with polypropylene dielectric and plastic case rated UL 94 V-0. Compact dimensions: 18mm (L) x 6mm (W) x 12mm (H). Rated for 300 V AC and 300 V DC operation. Operating temperature range -40 °C to 110 °C. Good self-healing and high voltage capability, suited for interference suppression.

Through-hole mounting with 2-pin configuration and 15 mm lead pitch. Certified to CSA and UL standards for safety and quality. Explore TDK capacitors and other electronic components in EnvMart’s electronics section to find quality parts for your manufacturing, repair, or prototyping projects.
