TDK Film Capacitor 22 nF 500V AC 1.25 kV DC Through Hole, 15mm Lead Pitch B32652A7223K000

Free Delivery in India | Lowest Global Shipping Charges

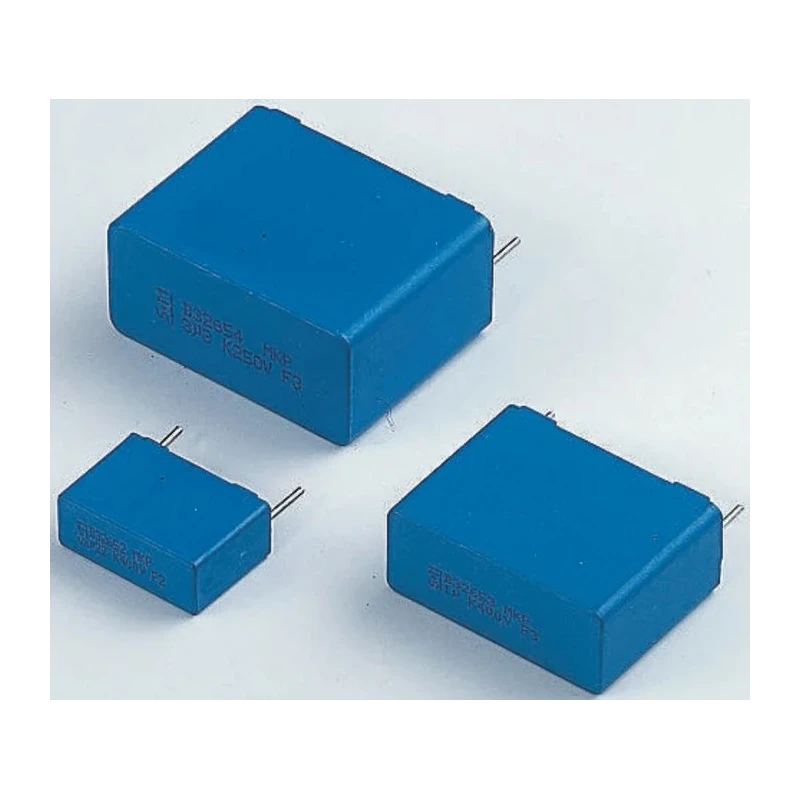

TDK Film Capacitor 22 nF 500V AC 1.25 kV DC Through Hole, 15mm Lead Pitch B32652A7223K000



Category Film Capacitor Brand TDK Condition New

Specifications

Country of Origin	India
Brand	TDK
Height	14.5mm
Length	18mm
Model	B32652A7223K000
Width	8.5mm
Mount Type	Through Hole
Series	B32652
Maximum Operating Temperature	100°C
Capacitance	22nF
Standards/Approvals	RoHS, UL
Pin Count	2
Rated AC Voltage	500V ac
Rated DC Voltage	1.25kV dc
Lead Pitch	15mm
Lead Diameter	0.8mm
Automotive Standard	AEC-Q200 Rev D

Key Features

Capacitance of 22 nF for precise electrical performance.
Rated AC voltage of 500 volts and DC voltage of 1.25 kV for robust operation.
Constructed with wound capacitor technology and internal series connection.
Plastic case with UL 94 V-0 flame retardant rating and epoxy resin sealing.
Lead pitch of 15 mm with 2 pins for through-hole mounting.
Maximum operating temperature up to 100°C.
Compliant with RoHS and UL standards for safety and environmental requirements.
Typical applications include TV S-correction, TV flyback, and electronic ballast circuits.

Product Description

TDK B32652A7223K000 is a precision Film Capacitor with a capacitance of 22 nF designed for reliable operation in demanding electronic environments. Its rated AC voltage is 500V, and it supports a rated DC voltage of 1.25 kV, making it suitable for circuits requiring high voltage endurance.

This capacitor uses wound technology with an internal series connection engineered to withstand a voltage rating of 1250V DC or greater. It is encased in a plastic housing compliant with UL 94 V-0 flame retardant standards and sealed with epoxy resin to ensure durability and safety.

The component features a through-hole mount with a lead pitch of 15 mm and two pins, allowing for secure and easy installation in electronic assemblies. It has a maximum operating temperature rating of 100°C, suitable for a wide range of industrial and commercial electronics applications.

Physical dimensions are 18 mm in length, 14.5 mm in height, and 8.5 mm in width, with a lead diameter of 0.8 mm, offering a compact form factor for space-sensitive circuit boards. The TDK B32652 series capacitors comply with RoHS and UL standards, ensuring compliance with environmental and safety regulations.

Typical use cases include TV S-correction circuits, TV flyback transformers, and electronic ballast circuits. Its high pulse strength and small dimensions make it ideal for industrial, consumer electronics, and HVAC control systems.

Capacitance of 22 nF for precise electrical performance. Rated AC voltage of 500 volts and DC voltage of 1.25 kV for robust operation. Constructed with wound capacitor technology and internal series connection. Plastic case with UL 94 V-0 flame retardant rating and epoxy resin sealing.

Lead pitch of 15 mm with 2 pins for through-hole mounting. Maximum operating temperature up to 100°C. Compact dimensions: 18 mm length, 14.5 mm height, 8.5 mm width. Compliant with RoHS and UL standards for safety and environmental requirements.

Typical applications include TV S-correction, TV flyback, and electronic ballast circuits. Explore more TDK electronic components and Film Capacitors on EnvMart to find reliable solutions for your industrial and commercial applications.
