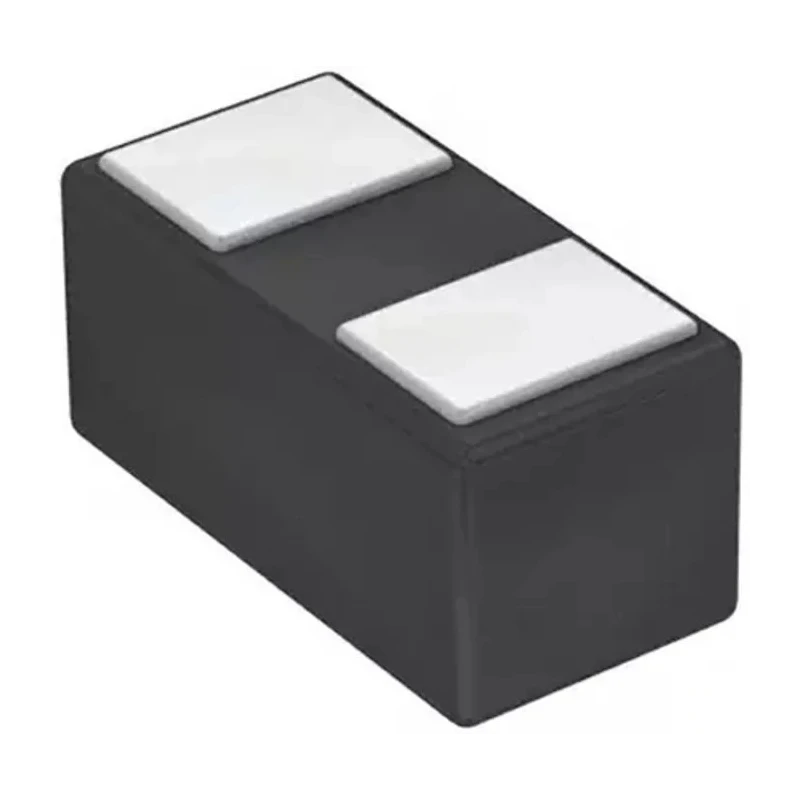

STMicroelectronics 1-Element Bi-Directional ESD Protection Diode 20W Power 2-Pin 0201 Surface Mount ESDAVLC5-1BF4

STMicroelectronics ESDAVLC5-1BF4 is a 1-element bi-directional ESD protection diode designed to provide reliable transient voltage suppression in electronic circuits. This device features a 2-pin 0201 surface mount package ideal for space-constrained PCB applications offering efficient electrostatic discharge protection with a peak pulse power dissipation rating of 20 W.

The diode configuration is optimized for bi-directional protection, allowing voltage spikes of either polarity to be suppressed effectively. With a minimum breakdown voltage (Vbr) of 5.8 V and maximum reverse stand-off voltage (Vwm) of 5.3 V, it safeguards sensitive components by clamping the voltage to a safe 11.7 V level during transient events.

Its maximum peak pulse current capability of 1.7 A accommodates high-energy ESD conditions, while the low reverse leakage current of only 100 nA ensures minimal impact on normal circuit operation. Furthermore, this diode maintains functionality within a wide operating temperature range between -55 °C and 150 °C, making it suitable for industrial, automotive, and consumer electronics environments.

The compact dimensions of 0.63 mm length, 0.33 mm width, and 0.32 mm height support high-density circuit board designs where board space is premium. This device is compliant with RoHS directives and fits many transient voltage suppressor requirements.

Typical applications include protection of USB interfaces, signal lines, and power lines exposed to electrostatic discharge and electrical transient surges. The ESDAVLC5-1BF4 is especially suitable for circuit boards demanding reliable over-voltage protection with minimal footprint.

The diode has a single element configuration optimized for bi-directional ESD protection. Designed for surface mount applications using a compact 2-pin 0201 package. Features a minimum breakdown voltage of 5.8 V and maximum reverse stand-off voltage of 5.3 V.

Clamping voltage at 11.7 V ensures effective transient voltage suppression during ESD events. Supports a maximum peak pulse current of 1.7 A and a test current of 1 mA for reliable operation. Operates reliably across a wide temperature range from -55 °C to 150 °C.

Extremely low maximum reverse leakage current of 100 nA minimizes power loss in circuits. Measures compact physical dimensions: 0.63 mm length, 0.33 mm width, and 0.32 mm height for dense PCB layout. Explore more semiconductor and ESD Protection Diodes at EnvMart to safeguard your electronic designs effectively.
