onsemi Single 10 V 5 W 5% Zener Diode, Through Hole 2-Pin DO-15 1N5347BG

Free Delivery in India | Lowest Global Shipping Charges

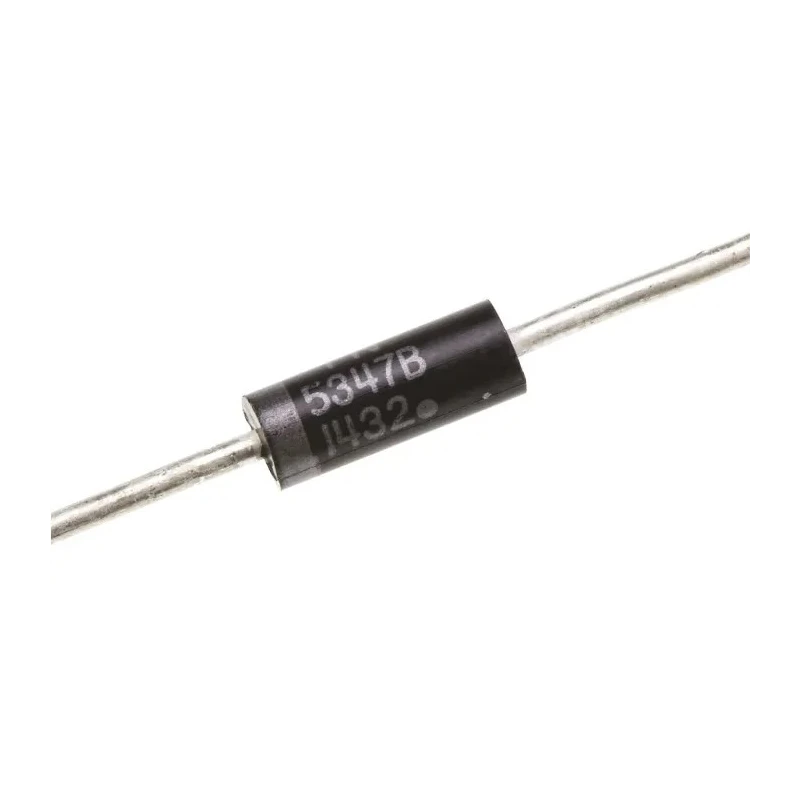

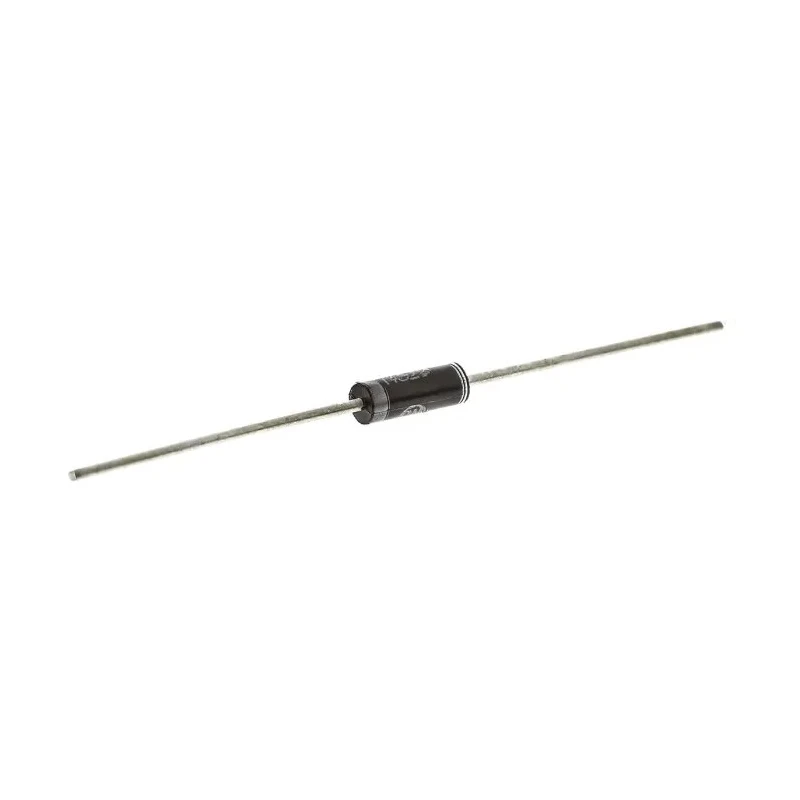

onsemi Single 10 V 5 W 5% Zener Diode, Through Hole 2-Pin DO-15 1N5347BG

Name: onsemi Single 10 V 5 W 5% Zener Diode, Through Hole 2-Pin DO-15 1N5347BG
Brand: onsemi
SKU: 138671



Category Zener Diodes Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	3.68mm
Length	8.89mm
Model	1N5347BG
Mount Type	Through Hole
Series	1N53
Maximum Operating Temperature	200°C
Package Type	DO-15
Minimum Operating Temperature	-65°C
Pin Count	2
Number of Elements per Chip	1
Maximum Power Dissipation Pd	5W
Diode Configuration	Single
Test Current It	125mA
Maximum Reverse Leakage Current	5μA
Nominal Zener Voltage Vz	10V
Zener Type	Voltage Regulator
Maximum Zener Impedance	2Ω

Key Features

This through-hole 2-pin Zener diode provides precise voltage regulation with a tolerance of 5%.
The device supports a maximum operating temperature of 200°C and a minimum of -65°C.
It features low maximum reverse leakage current of 5 µA ensuring minimal power loss.
The diode has a maximum Zener impedance of 2 Ω for improved stability under varying loads.
Its axial-leaded molded package offers durable protection and corrosion resistance.
Designed for industrial applications requiring reliable voltage regulation and surge protection.
The package dimensions are 8.89 mm length and 3.68 mm height.

Product Description

onsemi 1N5347BG is a high-quality single Zener diode designed for voltage regulation applications requiring a nominal Zener voltage of 10 V with a maximum power dissipation of 5 W. Packaged in a robust DO-15 axial lead form factor, this device is suitable for through-hole mounting and offers excellent thermal and environmental durability.

The 1N53 series from onsemi features a Surmetic™ 40 molded package that is void-free and thermosetting plastic, providing corrosion resistance and reliability in harsh industrial environments. This Zener diode exhibits tight voltage regulation with a tolerance of ±5%, ensuring stable operation in sensitive electronics.

Key electrical characteristics include a test current of 125 mA, maximum Zener impedance of 2 Ω, and low maximum reverse leakage current of 5 µA, contributing to efficient voltage regulation and minimal power losses.

Operating temperature range spans from -65°C up to 200°C, making it well-suited for a variety of industrial and commercial electronics applications where durability and performance are paramount.

This through-hole 2-pin axial-lead diode is engineered for voltage regulation and protection. Robust molded DO-15 package provides mechanical protection and ease of soldering. Low leakage current and tight impedance enhance circuit stability and performance.

Wide operating temperature range supports diverse industrial usage scenarios. Typical package dimensions are 8.89 mm length and 3.68 mm height for standard mounting. Ideal for use in power supplies, voltage regulators, and industrial electronic equipment.

Ensures reliable operation even under harsh environmental conditions.

The onsemi 1N5347BG is a durable, efficient, and precision-engineered voltage regulator diode perfect for construction, manufacturing, automotive electronics, and laboratory power management tasks.
